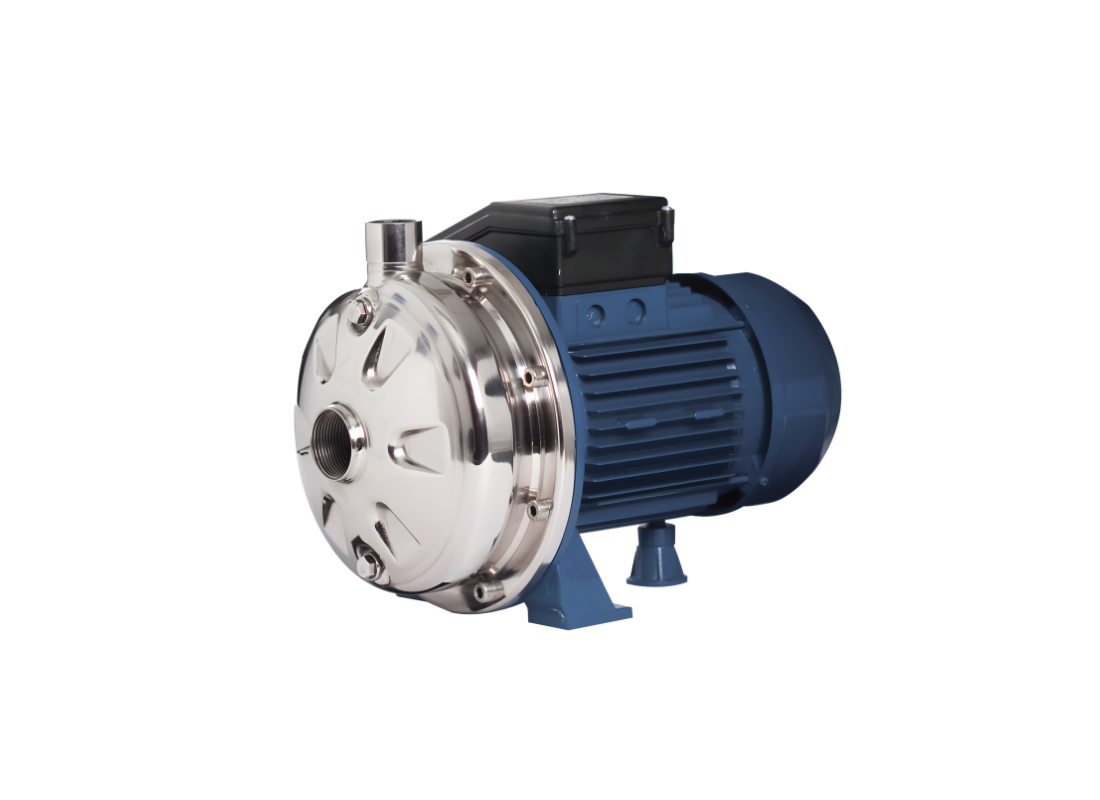

Ebara CDXM 70/05 Stainless Steel Centrifugal Pump with Single Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
The Ebara CDXM 70/05 is a compact and reliable 304 stainless steel centrifugal pump designed for clean water transfer, pressure boosting and light irrigation applications. Built with AISI 304 stainless steel hydraulic components, the pump provides excellent corrosion resistance and long service life in demanding environments.
Featuring a single impeller centrifugal design, the CDX series delivers efficient hydraulic performance for domestic and commercial water systems. The pump uses a closed impeller and precision mechanical seal to ensure reliable operation while maintaining consistent pressure and flow.
The pump is powered by a 0.37 kW single phase TEFC motor with insulation class F and IP55 protection, providing dependable operation and built-in overload protection for added safety. Its compact close-coupled design makes installation simple for pressure boosting, water transfer and irrigation systems where a durable stainless steel pump is required.
FEATURES
- 304 stainless steel pump casing and impeller for corrosion resistance
- Single impeller centrifugal design for efficient water transfer
- Closed impeller hydraulic design for reliable pressure performance
- Carbon/ceramic mechanical seal for durability and leak protection
- TEFC motor with IP55 protection and class F insulation
- Built-in thermal overload protection for single phase models
- Compact close-coupled pump design for easy installation
- Suitable for pressure boosting, water transfer and irrigation systems
SPECIFICATIONS
| Max Flow | 80 L/min |
| Max Head | 20.7 m |
| Power | 0.37 kW / 240v |
| Rated Current | 3.4 Amps |
| Suitable For | Water Transfer / Pressure Boosting / Domestic Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which materials are used for its hydraulic components?
AISI 304 stainless steel forms the casing and impeller of the CDXM_70_05, providing corrosion resistance for clean-water pumping installations in domestic and light commercial systems.
What impeller arrangement supports reliable pressure and water transfer?
A closed single impeller is used in the CDXM 70 05 to support efficient centrifugal hydraulic performance and reliable pressure delivery.
Which installations suit this close-coupled pump configuration?
For confined plant areas, the CDXM-70-05's compact close-coupled design suits domestic and light commercial pressure boosting, water transfer and irrigation installations.
What motor protection is provided for single-phase operation?
IP55 protection and Class F insulation equip the CDXM/70/05 motor, while single-phase versions also include built-in thermal overload protection for electrical safety.
Which motor output powers this compact stainless-steel pump?
Clean-water transfer, pressure boosting and light irrigation are powered by the CDXM7005's 0.37 kW single-phase TEFC motor for routine domestic operation.
