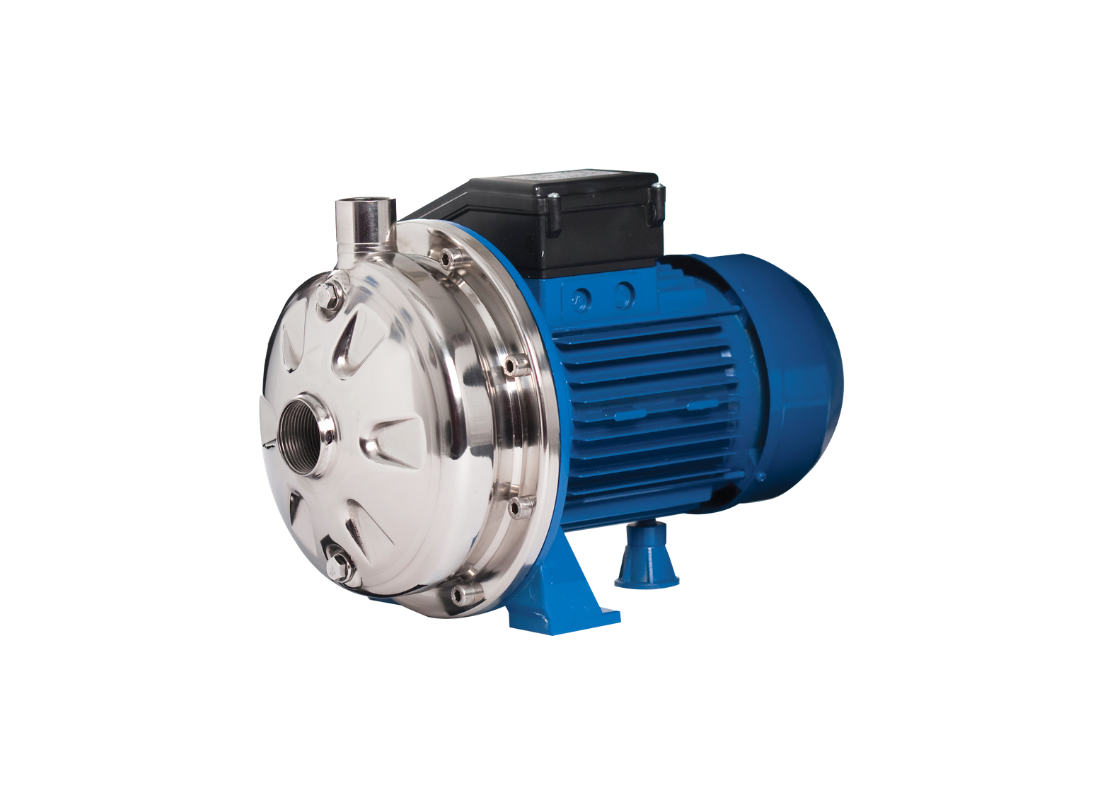

Ebara CDXM 90/10 Stainless Steel High Temperature Centrifugal Pump for Hot Water Circulation with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Where systems require stable circulation of heated clean water, this pump supports hot water loops, thermal circulation systems, and controlled supply lines operating at elevated temperatures. Its configuration is suited to installations where both pressure and thermal resistance are critical for consistent system performance.
With flow reaching up to 110 L/Min and a maximum head of 30.3 meters, the unit delivers reliable hydraulic output across its working range. The performance curve ensures steady pressure generation with smooth flow behavior under varying operating conditions.
Flow is supported through a closed centrifugal impeller that directs liquid efficiently while minimizing internal recirculation losses. This design ensures consistent discharge characteristics and stable hydraulic performance in clean water handling systems.
The construction incorporates AISI 304 stainless steel for the casing, impeller, and casing cover, along with a 303 stainless steel shaft. The high temperature version is equipped with a Carbon/Ceramic/Viton mechanical seal and Viton O-rings, enabling operation up to 110°C, while the TEFC motor with IP55 protection and Class F insulation ensures dependable continuous-duty operation with built-in overload protection.
FEATURES- High temperature seal configuration with Viton elastomers for thermal durability
- Closed impeller design ensuring efficient and controlled hydraulic flow
- Single-phase motor with built-in overload protection for operational safety
- TEFC motor enclosure with IP55 protection against environmental exposure
- Class F insulation system supporting continuous thermal operation
- Stainless steel hydraulic components for corrosion resistance and longevity
- Sealed ball bearing system for smooth rotation and reduced maintenance
- Compact close-coupled construction enabling efficient installation
SPECIFICATIONS
| Max Flow | 110 L/Min |
| Max Head | 30.3 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.6 Amps |
| Suitable For | Hot Water Circulation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 110°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which hot-water circulation duties suit this pump?
For heated supply lines and thermal circulation the CDXM_90_10_HT handles clean water where steady pressure and temperature resistance are required.
What flow capacity is available for circulation?
Flow reaches up to 110 L/Min through the CDXM 90 10 HT for hot-water loops and controlled supply systems requiring consistent volume delivery.
How does the impeller support steady discharge?
A closed centrifugal impeller in the CDXM-90-10-HT directs liquid efficiently and limits internal recirculation for stable flow during continuous operation.
Which motor features support single-phase electrical operation?
The CDXM/90/10/HT uses a single-phase TEFC motor with built-in overload protection plus IP55 enclosure protection and Class F insulation. for demanding service conditions
What temperature limit applies to the mechanical seal?
Carbon/Ceramic/Viton sealing with Viton O-rings enables the CDXM9010HT to handle heated clean water at temperatures up to 110°C. during continuous hot-water operation
