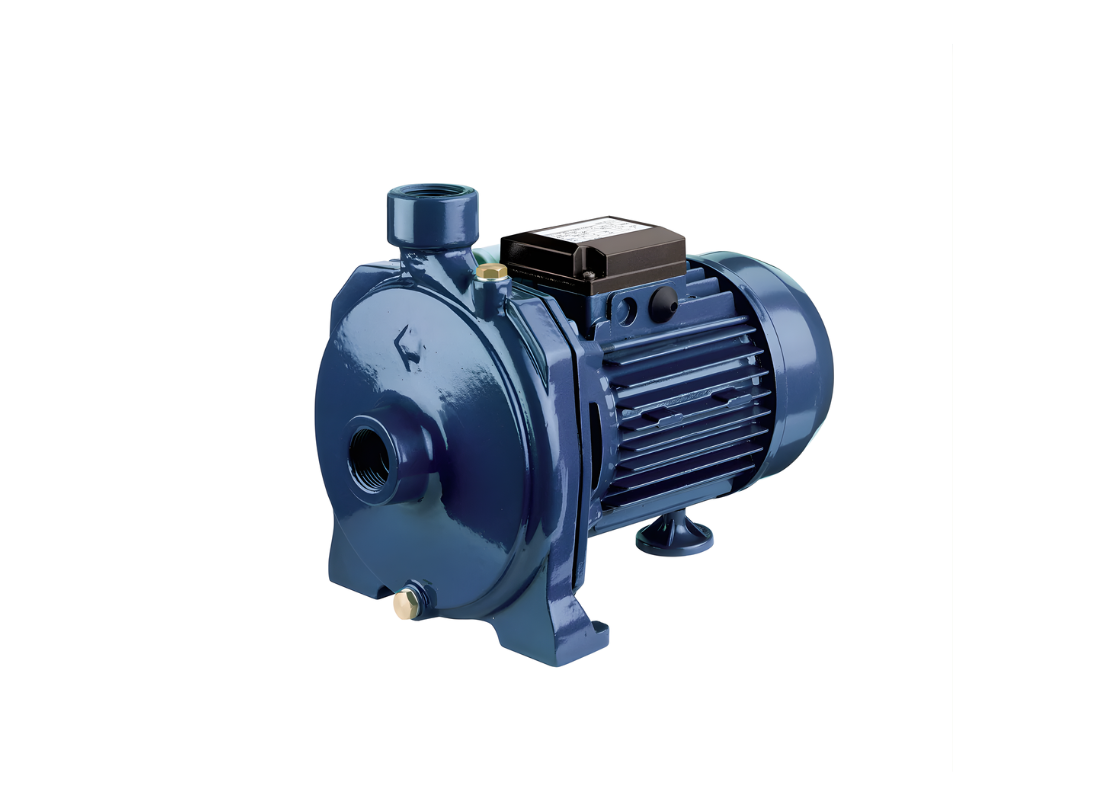

Ebara CMB 2.00M Cast Iron High Flow Centrifugal Irrigation Pump with Single Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
The Ebara CMB 2.00M is a heavy-duty cast iron centrifugal pump designed for high flow water transfer, irrigation and pressure boosting applications. Featuring a single impeller centrifugal design, this pump is capable of delivering strong flow performance while maintaining reliable hydraulic efficiency for clean water pumping systems.
Constructed with a robust cast iron pump casing, the CMB series is built for durability and long-term operation in demanding environments. The brass impeller provides excellent corrosion resistance and efficient hydraulic performance, while the stainless steel shaft and carbon/ceramic mechanical seal ensure dependable sealing and extended service life.
Powered by a 1.5 kW single phase motor, the pump incorporates a TEFC 2-pole motor with IP44 protection and class F insulation, delivering reliable and efficient operation. With its high flow capability and solid construction, the Ebara CMB 2.00M is ideal for irrigation systems, water transfer duties and pressure boosting where strong and consistent performance is required.
FEATURES
- Heavy-duty cast iron pump casing for strength and durability
- High flow centrifugal hydraulic design suitable for irrigation and transfer
- Brass impeller for corrosion resistance and efficient performance
- Carbon/ceramic mechanical seal for reliable long-term sealing
- TEFC 2 pole motor for efficient and dependable operation
- IP44 motor protection with class F insulation
- Built-in thermal overload protection
- Suitable for irrigation systems, water transfer and pressure boosting
SPECIFICATIONS
| Max Flow | 280 L/min |
| Max Head | 30.8 m |
| Power | 1.5 kW / 240v |
| Rated Current | 9 Amps |
| Suitable For | Domestic Irrigation / Water Transfer / Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 90°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which impeller material is specified for this pump model?
A brass impeller is fitted to the CMB_2_00M and pairs with its cast iron casing for clean-water pumping in irrigation systems.
What motor rating is supplied for single-phase operation?
Single-phase drive power for the CMB 2 00M comes from a 1.5 kW TEFC two-pole motor for irrigation and water-transfer service.
How does the hydraulic design support high-volume water movement?
The CMB-2-00M uses a single-impeller centrifugal design for high-flow irrigation and clean-water transfer across agricultural and domestic systems across agricultural supply networks.
What shaft and seal components are used in construction?
An AISI stainless steel shaft and carbon/ceramic mechanical seal are incorporated into the CMB/2/00M for dependable long-term pump service throughout its service life.
Which built-in protection supports the pump motor during use?
Built-in thermal overload protection supports the CMB200M motor alongside IP44 protection and Class F insulation for the stated electrical configuration.
