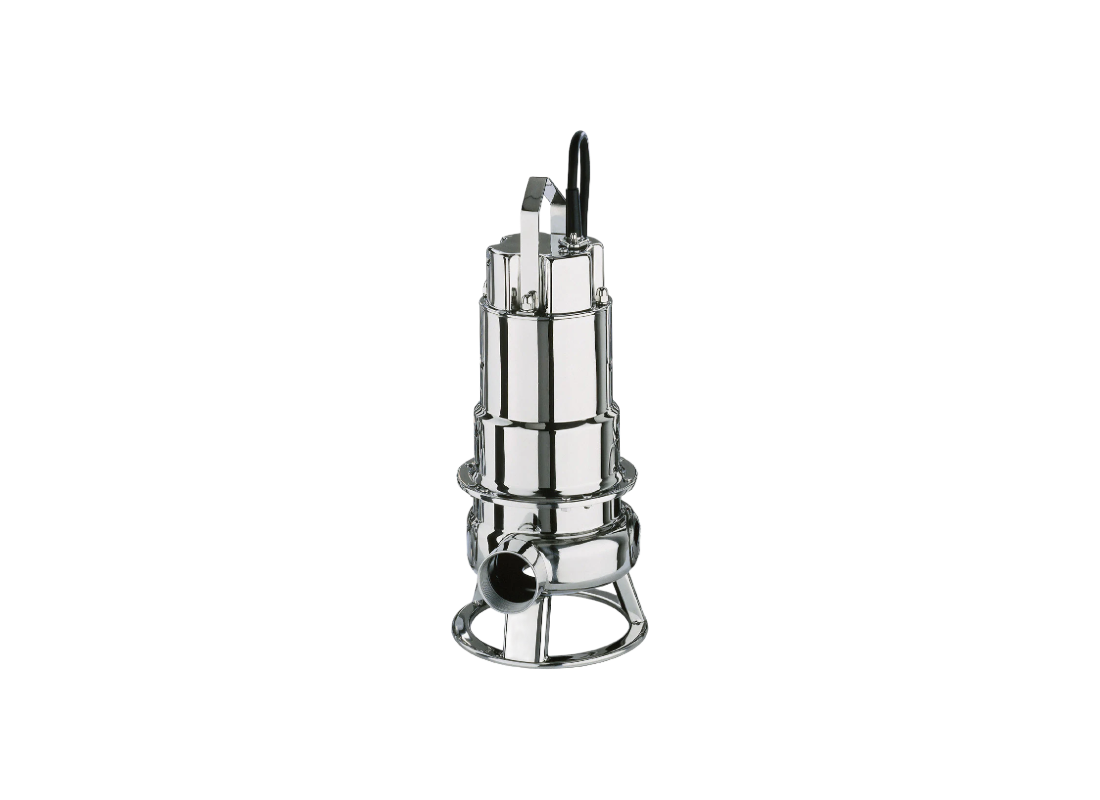

Ebara DW VOX 200 Stainless Steel Three-Phase Drainage Pump for Wastewater Handling with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Suitable for heavy-duty wastewater transfer and industrial drainage applications, this vertical unit handles liquid temperatures up to 40°C. It is rated for submerged service at depths reaching 10 meters in fixed collection wells. The manual configuration requires an external three-phase supply for discharge control in commercial pits.
Performance for this 1.5 kW motor includes a maximum flow rate of up to 700 L/Min and a total head of up to 12.5 m. Operating on a three-phase 415v supply, the unit draws a rated current of 3.6 Amps and includes a 10 m submersible power cable. The air-filled 2-pole dry induction motor has an approximate operating speed of 2800 rpm.
The vortex impeller is designed for non-clog operation when handling wastewater containing suspended solids up to 50 mm. This hydraulic design utilizes an open flow path that permits foreign matter to pass through the 50 mm discharge outlet without the risk of blockage. It ensures reliable movement of fluids containing soft and fibrous waste materials.
Materials include 304 stainless steel for the pump body, motor frame, and impeller paired with an AISI 303 stainless steel shaft. Shaft sealing is provided by a double mechanical seal in an oil-lubricated chamber utilizing Silicon Carbide lower faces. The assembly features Class F insulation and is IP68 rated for submerged operation in demanding industrial environments.
FEATURES
- Air-filled dry motor construction provides efficient submerged operation.
- Upper and lower sealed ball bearings provide durable support for the high-speed rotating assembly.
- NBR sealing components maintain watertight integrity across all housing joints.
- IP68 protection rating permits safe operation in collection pits and wells.
- Rated for installation at submergence depths up to 10 meters.
- Oil-lubricated chamber with Silicon Carbide lower faces ensures seal durability.
- Carbon/Ceramic upper seal faces provide reliable sealing at the motor side.
- 50 mm spherical solids handling prevents clogging in fibrous wastewater.
SPECIFICATIONS
| Max Flow | 700 L/Min |
| Max Head | 12.5 m |
| Power | 1.5 kW / 415v |
| Rated Current | 3.6 Amps |
| Suitable For | Heavy Sewage Transfer |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What wastewater duties suit this large vortex pump?
Industrial wastewater and heavy drainage duties suit DW_VOX_200 because its vortex impeller passes fibrous solids through a 50 mm discharge without clogging.
How large can suspended solids be during pumping?
The open vortex flow path in DW VOX 200 allows suspended solids up to 50 mm to pass through its 50 mm outlet.
Which electrical supply and motor rating are required?
A three-phase 415 V supply runs the 1.5 kW motor in DW-VOX-200, drawing 3.6 Amps at approximately 2800 rpm during pumping.
What maximum flow is available for industrial drainage?
For high-volume transfer, DW/VOX/200 delivers a maximum flow of 700 L/Min through its 50 mm discharge connection in industrial drainage duties.
What immersion conditions suit fixed collection wells?
IP68 protection permits submerged service for DWVOX200 at depths up to 10 m in liquids reaching 40°C; the pump is supplied with a 10 m cable.
