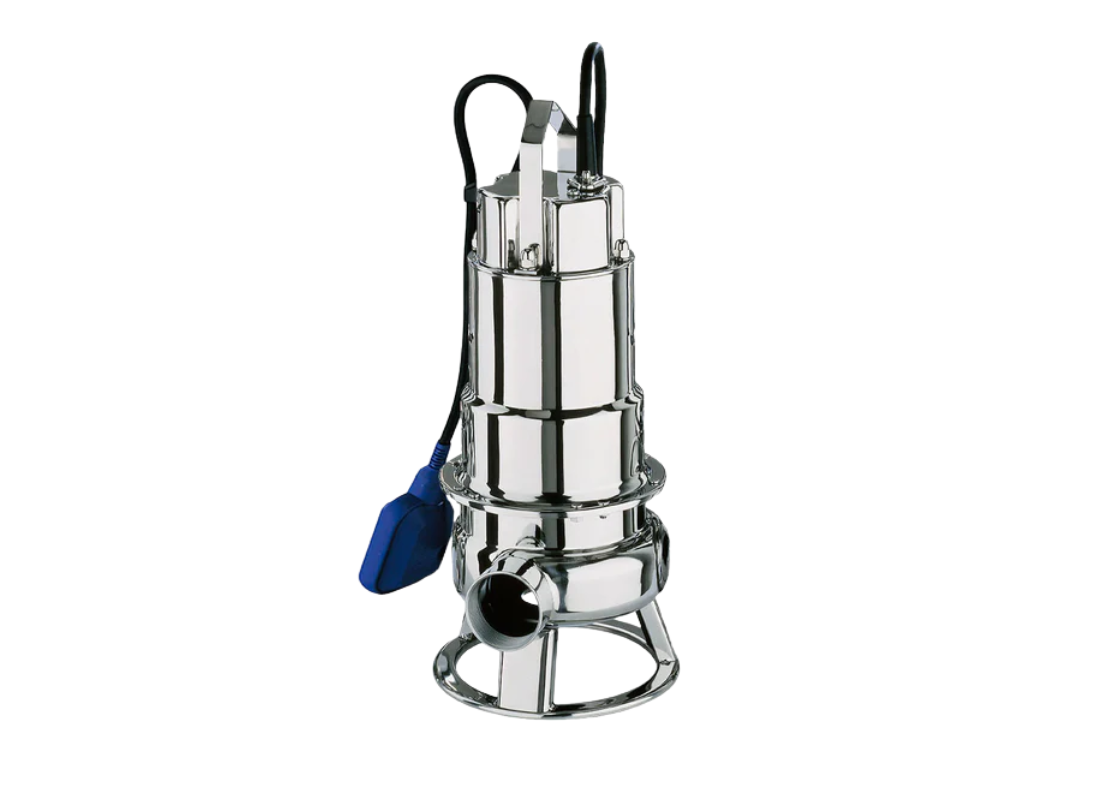

Ebara DW VOX 75M Stainless Steel Submersible Drainage Pump with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
The Ebara DW VOX 75M is a robust 304 stainless steel submersible drainage pump designed for wastewater and drainage applications where fibrous or suspended solids may be present. Featuring a vortex impeller design, the pump allows solids to pass through the pump without direct contact with the impeller, reducing the likelihood of clogging and ensuring reliable operation.
Manufactured using AISI 304 stainless steel hydraulic components, the DW VOX series offers excellent corrosion resistance and durability for long-term performance in demanding environments. The pump incorporates a double mechanical seal system in an oil lubricated chamber, providing superior protection for the motor and ensuring dependable operation during continuous submersible use.
Powered by a 0.55 kW single phase motor, the DW VOX 75M includes an integrated float switch for automatic start and stop operation, making it ideal for unattended drainage systems. With its strong solids handling capability and durable construction, the pump is well suited to sump pits, wastewater transfer and general drainage applications.
FEATURES
- 304 stainless steel pump construction for corrosion resistance
- Vortex impeller design for reliable solids handling
- Capable of passing soft and fibrous solids up to 50 mm
- Double mechanical seal in oil lubricated chamber for long service life
- Integrated float switch for automatic pump operation
- Submersible dry motor with IP68 protection
- Insulation class F motor for durability
- 10 m power cable supplied
SPECIFICATIONS
| Max Flow | 700 L/min |
| Max Head | 7.3 m |
| Power | 0.55 kW / 240v |
| Rated Current | 3.9 Amps |
| Suitable For | Drainage / Wastewater Transfer / Sump Pumping / Light Sewage |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does this pump manage automatic start and stop operation?
An integrated float switch starts and stops the DW_VOX_75M automatically as the surrounding water level rises and falls during drainage.
What solids can pass through its vortex hydraulic arrangement?
Soft and fibrous solids up to 50 mm can pass through the DW VOX 75M because its vortex impeller avoids direct contact.
Which motor output and phase supply are provided?
Automatic wastewater removal is driven by a 0.55 kW single-phase motor in the DW-VOX-75M for drainage from collection and sump pits.
How is the motor protected during submerged operation?
IP68 motor protection and a double mechanical seal in an oil-lubricated chamber help the DW/VOX/75M operate safely during unattended drainage cycles.
What cable and installation details are supplied with this model?
The DWVOX75M includes a 10 metre power cable and an integrated float switch that manages automatic start and stop operation.
