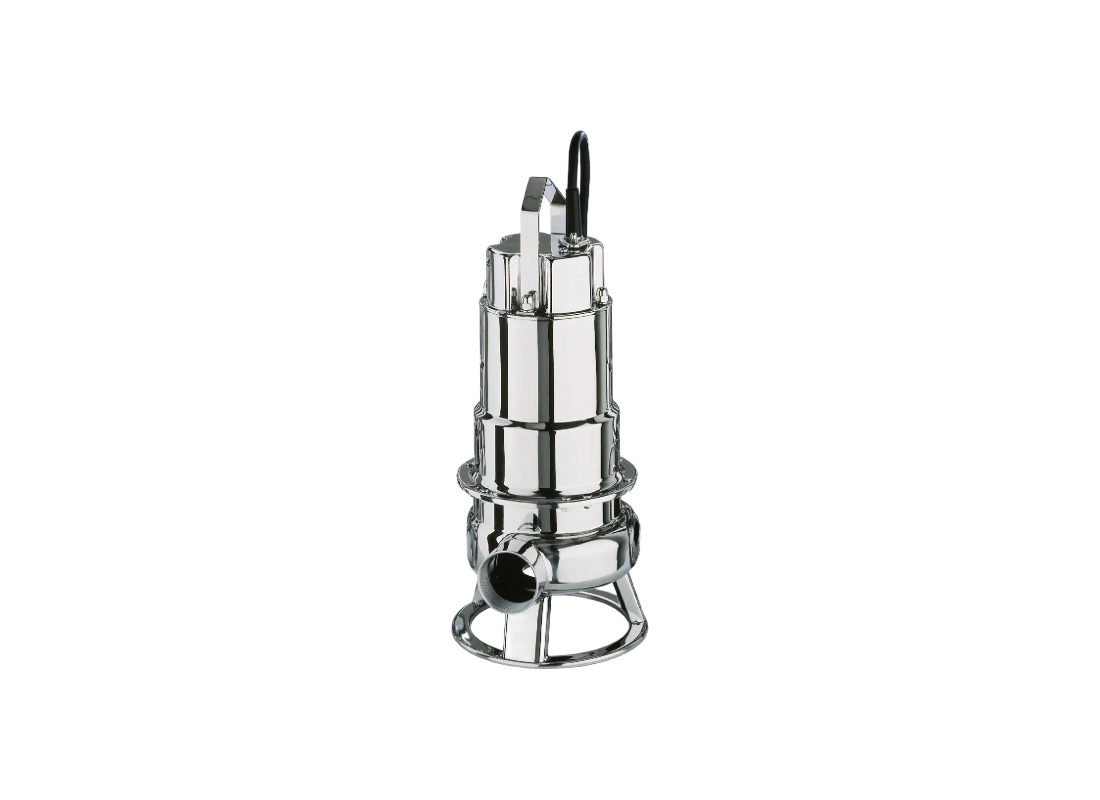

Ebara DW VOX M 100 Stainless Steel Manual Drainage Pump for Wastewater Collection with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Materials of construction include 304 stainless steel for the pump casing, motor frame, and impeller, with 303 stainless steel used for the shaft extension. Shaft sealing is managed by a double mechanical seal in an intermediate oil-lubricated chamber featuring Silicon Carbide lower faces and Carbon/Ceramic upper faces. The unit is IP68 rated for submerged operation and utilizes NBR sealing components.
Designed for dirty water transfer, wastewater drainage and stormwater applications, this vertical pump handles liquids at temperatures reaching 40°C. It is rated for operation at submergence depths up to 10 meters. The manual configuration is suited for installations where drainage cycles are managed by an external control panel or fixed manual switching.
The 0.75 kW motor reaches flow rates of up to 500 L/Min and a maximum head of up to 7.9 m. Operating on a single-phase 240v supply, the unit draws a rated current of 5.9 Amps and includes a 10 m submersible power cable. The air-filled 2-pole induction motor has an approximate operating speed of 2800 rpm and includes an in-built thermal protector for winding safety.
The vortex impeller is designed for non-clog operation when handling wastewater containing suspended solids up to 50 mm. This hydraulic arrangement allows for a recessed flow path that permits foreign matter to pass through the 50 mm vertical discharge without the risk of blockage. This configuration ensures reliable transfer in systems where fibrous waste is present.
FEATURES
- Air-filled dry motor construction provides efficient submerged operation.
- Upper and lower sealed ball bearings support the rotating assembly for stable operation.
- Class F insulation ensures electrical integrity in demanding submerged conditions.
- IP68 protection rating allows installation in collection pits with standing water.
- 50 mm spherical solids handling reduces blockage risk in fibrous wastewater.
- Double mechanical seal with oil-lubricated chamber extends seal face service life.
- Carbon/Ceramic upper seal faces provide reliable sealing at the motor side.
- White mineral oil (Esso Marcol 152) lubricates the intermediate seal chamber.
SPECIFICATIONS
| Max Flow | 500 L/Min |
| Max Head | 7.9 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.9 Amps |
| Suitable For | Wastewater Collection |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which materials form the casing and rotating assembly?
304 stainless steel forms the casing, impeller and motor frame, while DW_VOX_M_100 uses an AISI 303 stainless steel shaft during submerged service.
What maximum flow is available for dirty-water transfer?
Dirty-water and stormwater transfer can reach a maximum flow of 500 L/Min through DW VOX M 100 at its 50 mm vertical discharge.
How is the motor powered and protected?
A single-phase 240 V supply runs the 0.75 kW motor in DW-VOX-M-100, drawing 5.9 Amps and including an in-built thermal protector.
What solids size can the vortex impeller pass?
The recessed vortex flow path in DW/VOX/M/100 handles suspended solids up to 50 mm in diameter to reduce blockage during wastewater transfer.
What maximum head is specified for discharge?
For vertical discharge from wet wells, DWVOXM100 provides a maximum head of 7.9 m through its 50 mm outlet for collection-pit drainage.
