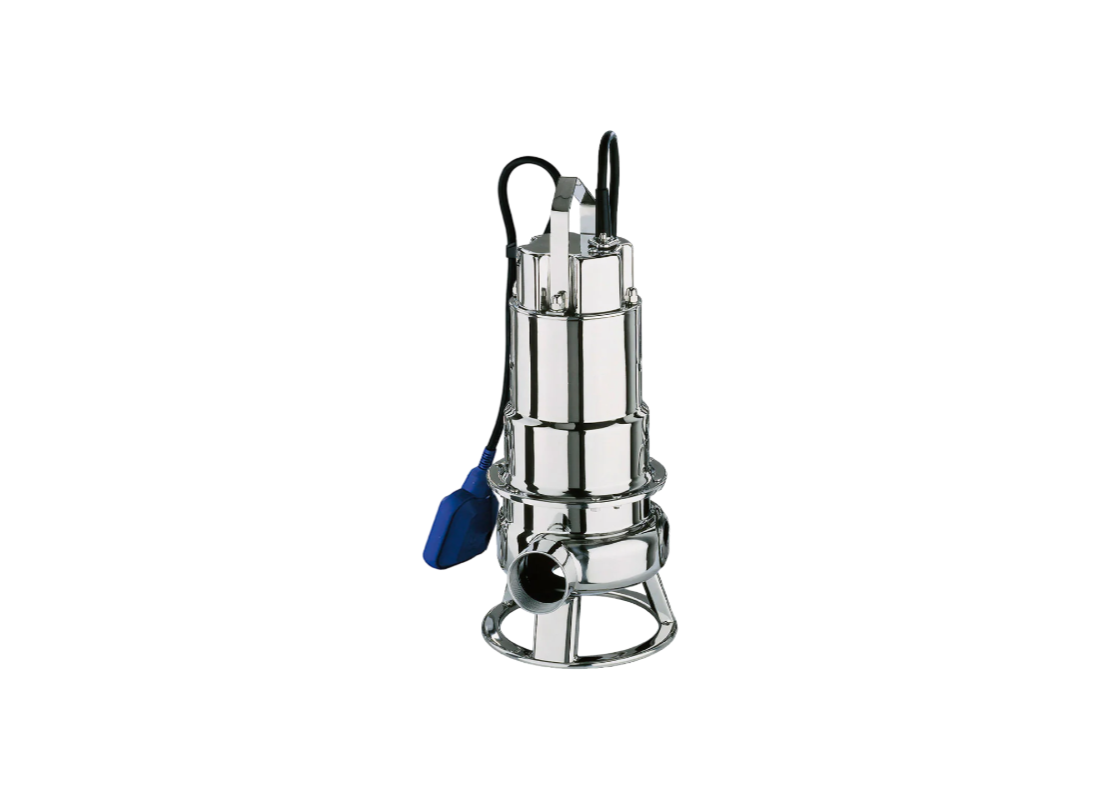

Ebara DW VOX M 150 A Stainless Steel Float Switch Drainage Pump for Wastewater Collection with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Performance for this 1.1 kW motor includes flow rates of up to 600 L/Min and a total head of up to 10.2 m. Drawing a rated current of 7.3 Amps on a 240v single-phase supply, the unit is equipped with a 10 m submersible power cable. The air-filled induction motor has an approximate operating speed of 2800 rpm and features Class F electrical insulation for reliable operation.
The impeller arrangement is designed for non-clog operation when handling wastewater containing suspended solids up to 50 mm. This hydraulic system provides an open internal passage to reduce the risk of blockages during high-volume effluent transfer tasks. Waste is moved through a 50 mm vertical discharge connection that supports connection to discharge lines.
Materials include a 304 stainless steel pump casing, motor frame, and impeller paired with an AISI 303 stainless steel shaft. Protection is managed by a double mechanical seal in an oil-lubricated chamber utilizing Silicon Carbide lower faces. The assembly utilizes NBR sealing components and includes an in-built thermal protector.
Common applications for this automatic unit include effluent collection and the lifting of liquids containing soft fibrous materials. It is IP68 rated for submerged operation and handles liquid temperatures up to 40°C in fixed vertical installations. The pre-installed float switch allows for fully automated drainage cycles in collection pits.
FEATURES
- Upper and lower sealed ball bearings provide mechanical support for the high-speed shaft.
- NBR sealing components offer chemical and temperature resistance in dirty water.
- Intermediate oil-lubricated chamber separates and protects the mechanical seal faces.
- Carbon/Ceramic upper seal faces complement Silicon Carbide lower faces for durability.
- Vortex impeller allows 50 mm spherical solids passage without mechanical obstruction.
- Class F motor insulation supports continuous operation in demanding applications.
- White mineral oil (Esso Marcol 152) maintains seal face cooling and extends service intervals.
- Rated for installation at submergence depths up to 10 meters.
SPECIFICATIONS
| Max Flow | 600 L/Min |
| Max Head | 10.2 m |
| Power | 1.1 kW / 240v |
| Rated Current | 7.3 Amps |
| Suitable For | Effluent Collection |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which flow capacity is available from this automatic unit?
For higher-volume collection, DW_VOX_M_150_A delivers a maximum flow of 600 L/Min through its 50 mm vertical discharge connection during wastewater lifting.
How does level control support unattended drainage?
The pre-installed float switch on DW VOX M 150 A controls automatic drainage cycles in collection pits as liquid levels rise and fall.
What motor supply and current are required for operation?
Operating from a 240 V single-phase connection, the 1.1 kW motor in DW-VOX-M-150-A draws 7.3 Amps at approximately 2800 rpm.
Which impeller design helps reduce blockage during wastewater transfer?
The vortex impeller on DW/VOX/M/150/A provides a recessed flow path for wastewater containing soft or fibrous solids up to 50 mm.
What maximum head is available for vertical discharge?
Vertical discharge through DWVOXM150A can reach a maximum head of 10.2 m for automatic lifting from domestic and commercial collection pits.
