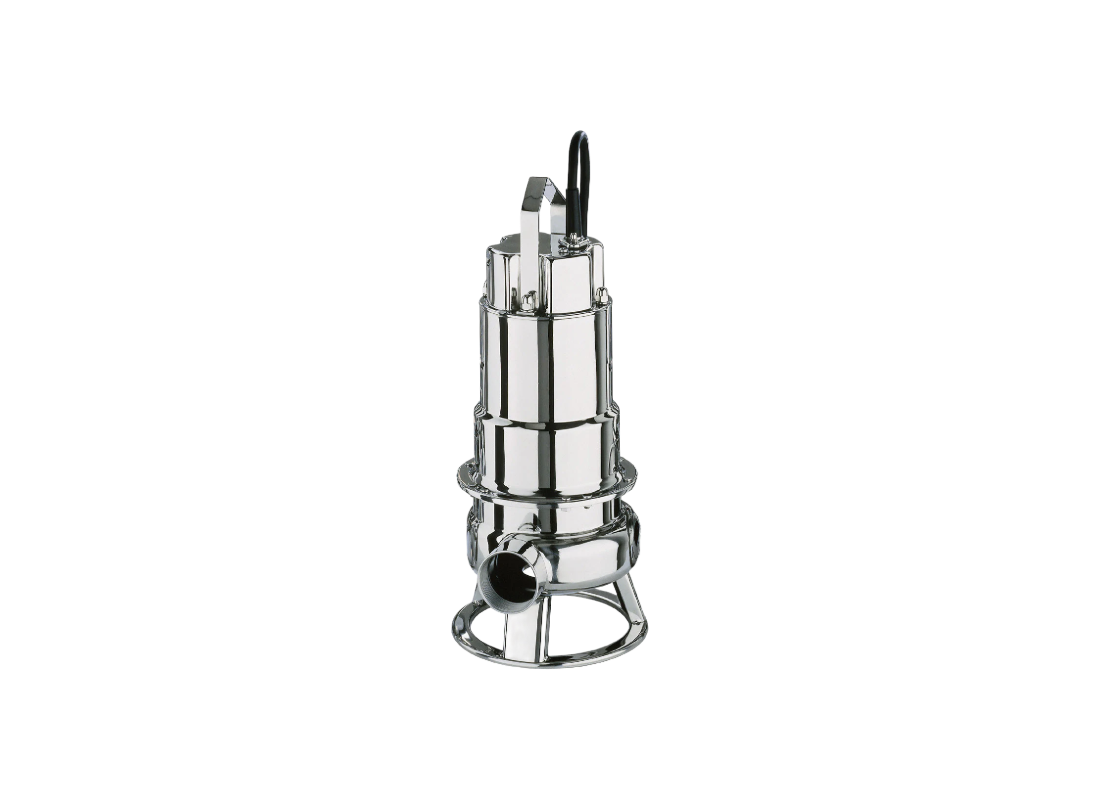

Ebara DW VOX M 150 Stainless Steel Manual Drainage Pump for Dirty Water Transfer with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Operating data for this 1.1 kW motor includes flow rates of up to 600 L/Min and a total head of up to 10.2 m. Drawing a rated current of 7.3 Amps on a 240v single-phase supply, the unit is equipped with a 10 m submersible power cable. The 2-pole air-filled dry motor has an approximate operating speed of 2800 rpm.
Suitable for industrial drainage and the lifting of liquids containing soft fibrous materials, this manual unit handles liquid temperatures up to 40°C. It is designed for vertical installation in collection wells and is IP68 rated for submerged operation. The manual control configuration is ideal for fixed drainage systems requiring continuous transfer.
Construction features a 304 stainless steel pump body, motor frame, and impeller paired with an AISI 303 stainless steel shaft. Sealing is managed by a double mechanical seal in an oil-lubricated chamber featuring Silicon Carbide lower faces and Carbon/Ceramic upper faces. The rotating assembly utilizes sealed ball bearings for mechanical support during operation.
The vortex impeller is designed for non-clog operation when handling wastewater containing suspended solids up to 50 mm. This pump hydraulic design permits the passage of foreign matter through the 50 mm discharge outlet without obstructing the impeller path. It is engineered for stable pressure behavior when moving waste horizontally or vertically to mains sewer lines.
FEATURES
- Class F motor insulation provides thermal stability in continuous service applications.
- AISI 303 stainless steel shaft resists corrosion and wear in dirty water environments.
- IP68 rated enclosure allows submerged operation at depths up to 10 meters.
- Oil-lubricated chamber isolates mechanical seals and prevents liquid ingress.
- NBR sealing components provide reliable sealing across all housing joints.
- 50 mm vertical discharge connection supports integration with standard pipe systems.
- Manual configuration permits integration with external start/stop control systems.
- Carbon/Ceramic upper seal faces provide reliable sealing at the motor side.
SPECIFICATIONS
| Max Flow | 600 L/Min |
| Max Head | 10.2 m |
| Power | 1.1 kW / 240v |
| Rated Current | 7.3 Amps |
| Suitable For | Industrial Drainage |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor speed and electrical ratings apply?
At 1.1 kW, DW_VOX_M_150 draws 7.3 Amps from single-phase 240 V and runs at approximately 2800 rpm during manual operation.
Which manual installation duties suit this pump?
Industrial drainage and lifting of soft fibrous liquids suit DW VOX M 150 in fixed collection wells using manual external control.
What maximum flow supports wastewater transfer from collection wells?
High-volume wastewater transfer through DW-VOX-M-150 reaches a maximum flow of 600 L/Min through its 50 mm discharge connection for fixed installations.
Which construction materials are used for submerged operation?
The casing, motor frame and impeller use 304 stainless steel, while DW/VOX/M/150 has an AISI 303 stainless steel shaft for submerged service.
What maximum head is available during lifting?
For vertical lifting, DWVOXM150 provides a maximum total head of 10.2 m during manual wastewater transfer from collection wells through its outlet.
