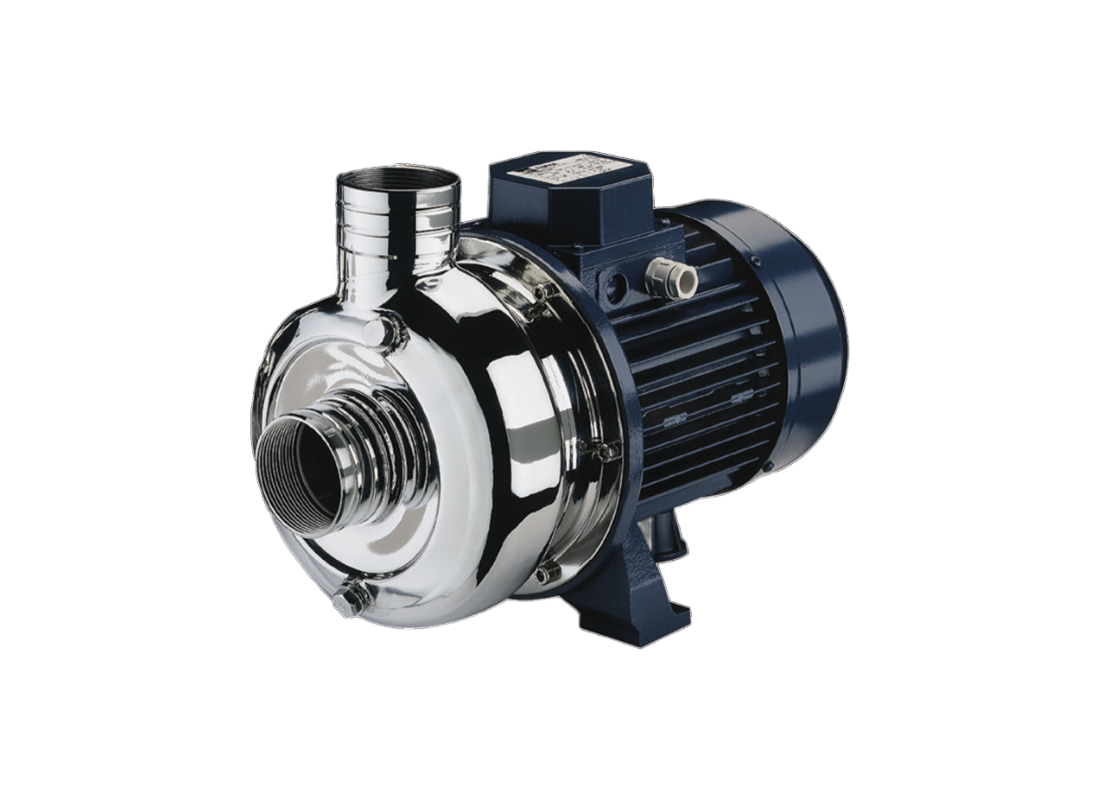

Ebara DWO 150 Stainless Steel General Duty Centrifugal Pump for Bottle Washing with Open Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Consistent fluid movement in cleaning and processing environments requires a pump that can operate reliably under varying conditions, and the Ebara DWO 150 is suited to these applications. It is commonly used in bottle washing systems where steady flow and operational continuity are essential.
The pump delivers up to approximately 550 L/Min and develops a maximum head of around 9.5 m based on the performance curve. This operating range supports applications that require continuous flow with low to moderate discharge pressure.
Flow is managed through an open impeller configuration, allowing suspended solids to pass through without interruption. This ensures stable operation in systems where fluid conditions may include minor debris or contamination.
The unit features a close coupled design that simplifies installation while maintaining a compact footprint. Maintenance access is supported by a back pull-out construction, allowing internal servicing without removing pipe connections. The pump is manufactured from 304 stainless steel and fitted with a standard mechanical seal for operation with liquid temperatures up to 90°C.
FEATURES
- Open impeller design supporting solids up to 19 mm
- Close coupled construction for compact installation
- Back pull-out design for maintenance without pipe removal
- Top centreline discharge reducing pipe stress
- Foot support under motor for improved alignment
- 304 stainless steel liquid end components
- High quality mechanical seal for general duty operation
- Designed for efficient continuous duty performance
SPECIFICATIONS
| Max Flow | 550 L/Min |
| Max Head | 9 m |
| Power | 1.1 kW / 415v |
| Rated Current | 3.2 Amps |
| Suitable For | Bottle Washing |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 90°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the pump allow servicing without pipe disconnection?
Back pull-out construction allows servicing of the DWO_150's impeller and seal assembly without removing connected pipework from the installation during routine maintenance.
What flow capacity is stated for this model?
For bottle-washing and process transfer, the DWO 150 delivers approximately 550 L/Min to maintain consistent liquid movement across industrial installations.
Which impeller design supports passage of suspended solids?
During water transfer and cleaning, the DWO-150 open impeller passes solids up to 19 mm and supports liquid movement in process installations.
What maximum head is stated for this pump?
The DWO/150 has an approximate maximum head of 9.5 m, supporting its stated hydraulic capacity for process transfer duties in industrial settings.
Which construction features assist installation and motor alignment?
The DWO150 combines close-coupled construction and top centreline discharge with foot support beneath the motor to assist alignment for easier setup.
