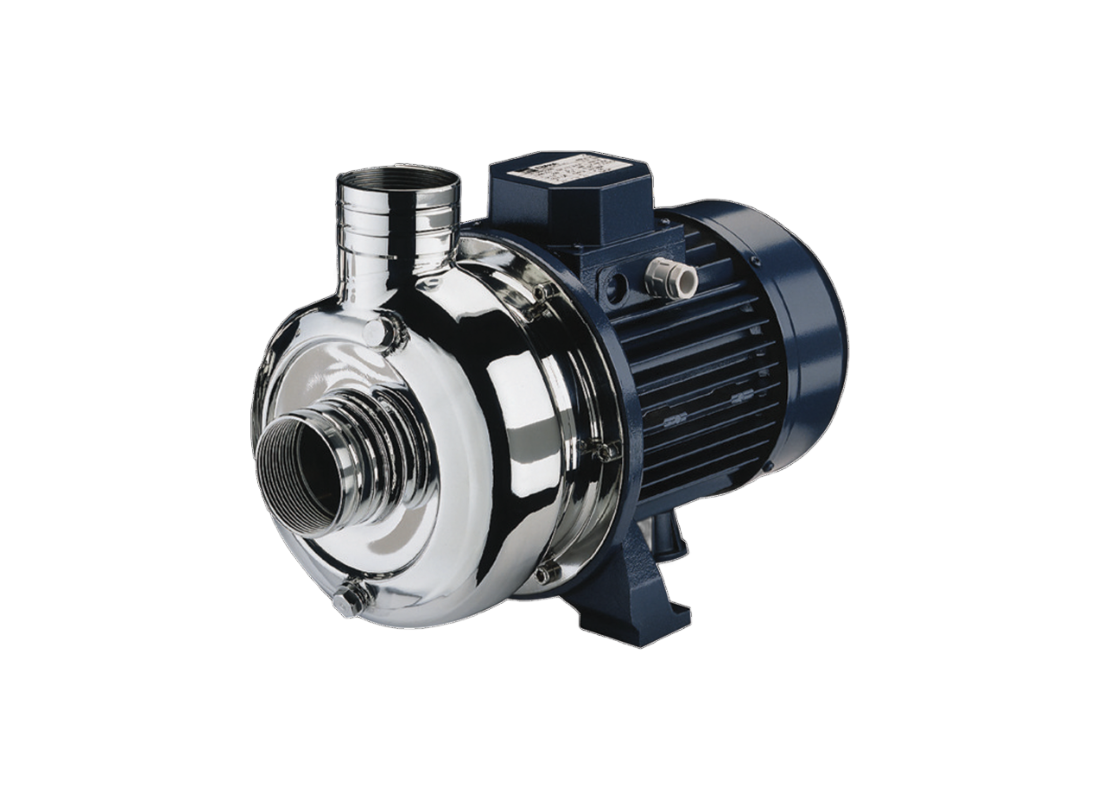

Ebara DWO 150 Stainless Steel High Temperature Centrifugal Pump for Cooling Systems with Open Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
In applications where elevated liquid temperatures must be managed without interrupting system performance, the Ebara DWO 150 High Temperature version provides a stable solution. It is commonly applied in cooling systems where continuous circulation is required under thermal operating conditions.
With a delivery capacity reaching approximately 550 L/Min and a maximum head of around 9.5 m, the pump supports installations that require steady flow output with controlled discharge pressure.
Flow is supported through an open impeller configuration, allowing suspended particles to pass through without restriction. This helps maintain consistent operation in systems where fluid conditions may vary during use.
The pump is manufactured from 304 stainless steel and incorporates a Carbon/Ceramic/Viton mechanical seal, enabling operation with liquid temperatures up to 110°C. A close coupled design combined with back pull-out construction allows simplified maintenance without disturbing pipework connections.
FEATURES
- Open impeller design supporting solids up to 19 mm
- High temperature mechanical seal (Carbon/Ceramic/Viton)
- Close coupled construction for compact installation
- Back pull-out design for easy maintenance access
- Top centreline discharge reducing pipe stress
- Foot support under motor for improved alignment
- 304 stainless steel liquid end components
- Designed for efficient continuous duty operation
SPECIFICATIONS
| Max Flow | 550 L/Min |
| Max Head | 9.5 m |
| Power | 1.1 kW / 415v |
| Rated Current | 3.2 Amps |
| Suitable For | Cooling Systems |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 110°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which liquid temperatures can this high-temperature version handle?
For heated circulation, the DWO_150_HT uses a Carbon/Ceramic/Viton mechanical seal and handles liquid temperatures up to 110°C during operation under elevated thermal conditions.
Can its impeller pass solids during liquid transfer?
An open impeller lets the DWO 150 HT pass solids up to 19 mm, accommodating liquid streams that contain minor debris during transfer.
What delivery capacity is available for high-volume transfer?
The DWO-150-HT reaches approximately 550 L/Min, providing high-volume delivery where installations require steady flow and controlled discharge pressure during continuous pumping.
How can technicians service internal parts without pipe removal?
Back pull-out construction on the DWO/150/HT provides internal maintenance access without requiring connected pipework to be disconnected during scheduled servicing.
Which materials form the wetted pump construction?
Its wetted pump end uses 304 stainless steel, while the close-coupled DWO150HT arrangement supports compact installation within space-conscious equipment layouts.
