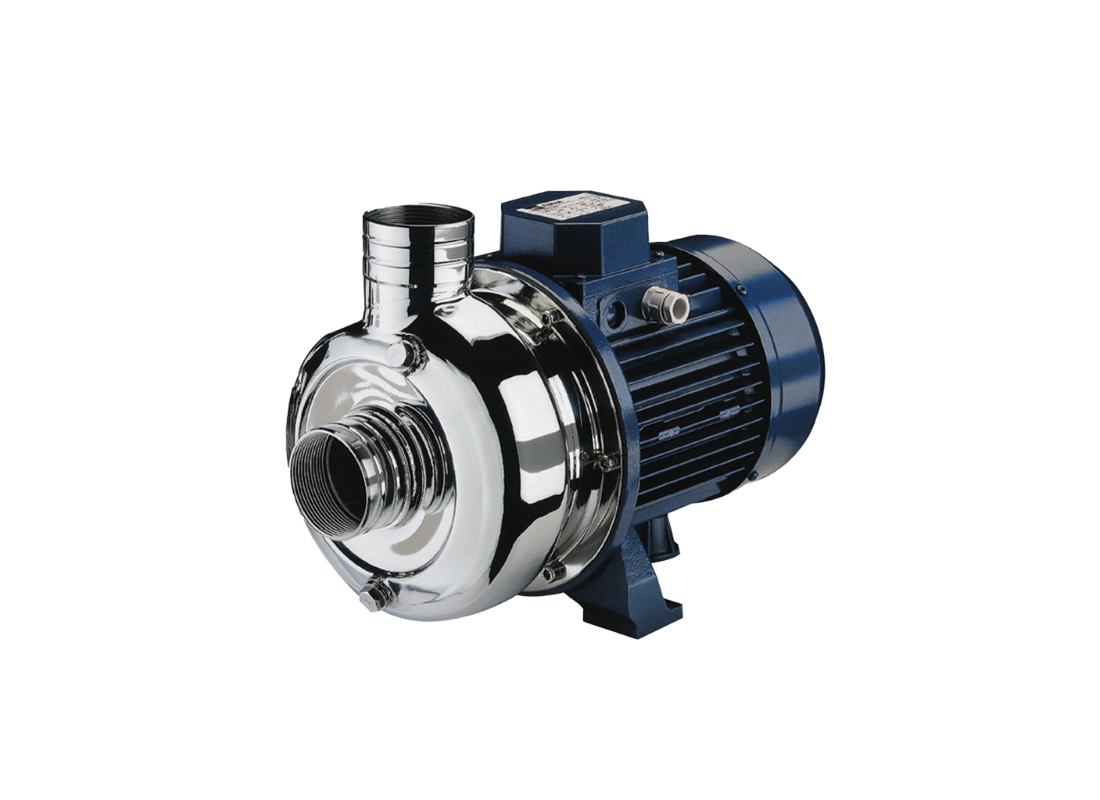

Ebara DWO 150M Stainless Steel Centrifugal Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
The Ebara DWO 150M is a robust 304 stainless steel centrifugal pump designed for handling clean or lightly contaminated water where solids may be present. Featuring an open impeller design, the pump is capable of passing particles up to 19 mm, making it ideal for food processing, washdown systems, irrigation and water transfer applications.
Manufactured entirely with AISI 304 stainless steel hydraulic components, the pump offers excellent corrosion resistance and durability in demanding environments. The open impeller design ensures reliable hydraulic performance when handling liquids containing suspended solids or debris.
The pump is powered by a 1.1 kW single-phase TEFC motor with insulation class F and IP55 protection for dependable operation. A carbon/ceramic mechanical seal protects the motor from water ingress while ensuring long service life. Designed for reliability and efficiency, the Ebara DWO 150M is well suited to industrial, agricultural and commercial pumping systems requiring strong flow and solids handling capability.
FEATURES
- 304 stainless steel pump casing and impeller for corrosion resistance
- Open impeller design capable of passing solids up to 19 mm
- Carbon/ceramic mechanical seal with NBR elastomers for durability
- TEFC motor with IP55 protection and class F insulation
- Built-in thermal overload protection for single phase models
- Heavy-duty close coupled centrifugal pump design
- Suitable for water transfer, washdown systems and irrigation
- Maximum working pressure of 8 bar
SPECIFICATIONS
| Max Flow | 550 L/min |
| Max Head | 9.5 m |
| Power | 1.1 kW / 240v |
| Rated Current | 6.8 Amps |
| Suitable For | Water Transfer / Irrigation / Washdown Systems / Liquids with Light Solids |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 90°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What size of soft solids can pass through this pump?
Particles up to 19 mm pass through the DWO_150M open impeller when handling lightly contaminated water for washdown and agricultural transfer duties.
Which motor arrangement powers the pump for process applications?
A 1.1 kW single-phase TEFC motor powers the DWO 150M, with Class F insulation and IP55 protection for its electrical assembly.
How does the open impeller support fluid handling?
During washdown and agricultural transfer, the DWO-150M open impeller moves suspended solids while supporting fluid handling with lightly contaminated water.
What maximum working pressure is stated for this unit?
An 8 bar maximum working pressure applies to the DWO/150M, establishing its upper pressure limit for suitable process and liquid-transfer installations.
Which hydraulic materials and seal components are fitted?
Hydraulic construction on the DWO150M uses AISI 304 stainless steel with a carbon/ceramic seal and NBR elastomers for continuous process service.
