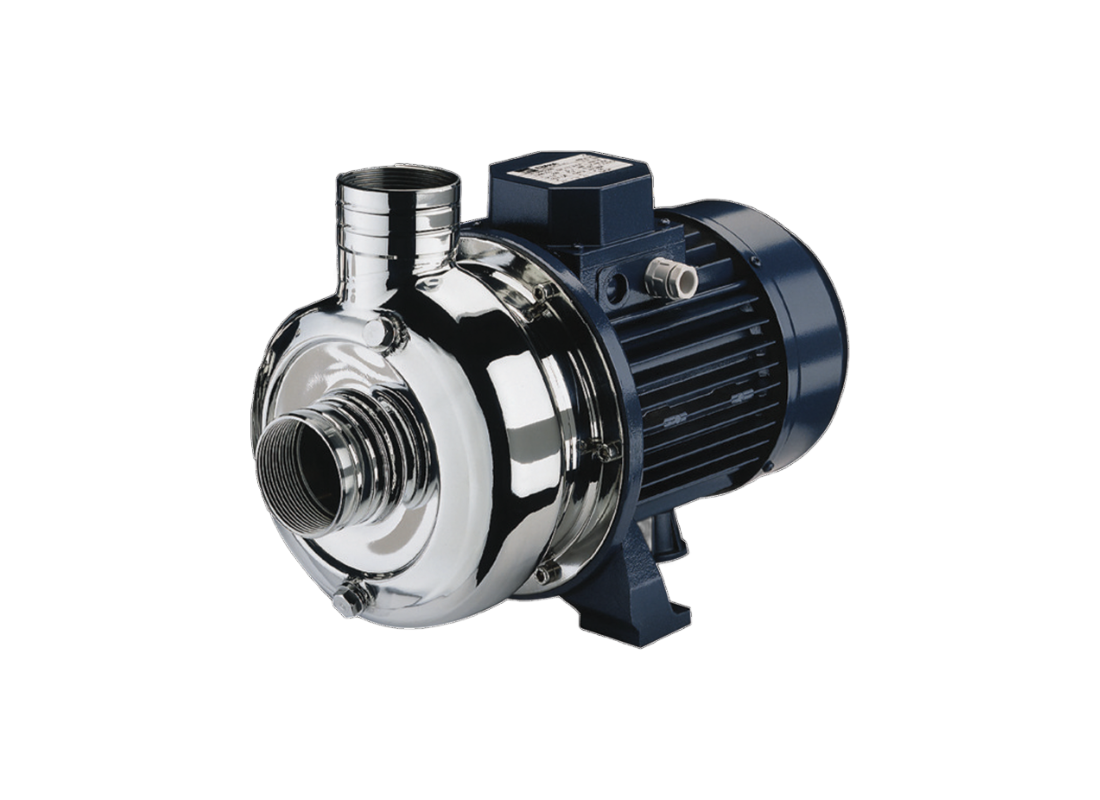

Ebara DWO 200 Stainless Steel Hard Faced Centrifugal Pump for Industrial Cleaning with Open Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Applications that involve variable fluid quality and continuous operation demand equipment that can maintain stable performance, and the Ebara DWO 200 Hard Faced version is suited to these requirements. It is commonly used in industrial cleaning systems where consistent flow delivery is essential.
With a delivery capacity reaching approximately 750 L/Min and a maximum head of around 13 m, the pump supports installations requiring steady throughput combined with controlled discharge pressure.
Hydraulic operation is supported by an open impeller arrangement that promotes smooth fluid movement across varying load conditions. This configuration helps maintain operational continuity without interruption during changing system demands.
The unit is fitted with a Silicon Carbide (SiC/SiC/Viton) mechanical seal designed for demanding service conditions, while the 304 stainless steel construction provides structural durability. A close coupled layout together with a back pull-out arrangement allows internal access without disturbing pipe connections.
FEATURES
- Open impeller configuration for unrestricted flow passage
- Hard faced mechanical seal (SiC/SiC/Viton)
- 304 stainless steel pump construction
- Close coupled design for compact installation
- Back pull-out construction for maintenance access
- Top centreline discharge reducing pipe stress
- Foot support under motor for improved stability
- Optimised for continuous duty operation
SPECIFICATIONS
| Max Flow | 750 L/Min |
| Max Head | 13 m |
| Power | 1.5 kW / 415v |
| Rated Current | 4.1 Amps |
| Suitable For | Industrial Cleaning |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 110°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which mechanical seal is fitted for abrasive service?
Silicon Carbide seal faces equip the DWO_200_HF in a SiC/SiC/Viton arrangement, offering wear resistance for demanding liquid-handling conditions during abrasive operation.
What maximum head can this pump deliver?
For discharge requirements, the DWO 200 HF provides a maximum head of approximately 13 m across its stated operating range.
Which applications are suited to the hard-faced version?
Industrial cleaning systems are identified for the DWO-200-HF, where the hard-faced seal supports operation with abrasive or variable fluid conditions.
How does the hydraulic design allow fluid passage?
An open impeller directs liquid through the DWO/200/HF without restriction, helping suspended particles pass through the hydraulic section during transfer.
What construction simplifies internal servicing without pipe removal?
The close-coupled layout and back pull-out construction make the DWO200HF accessible for internal maintenance without removing connected pipework during scheduled pump servicing.
