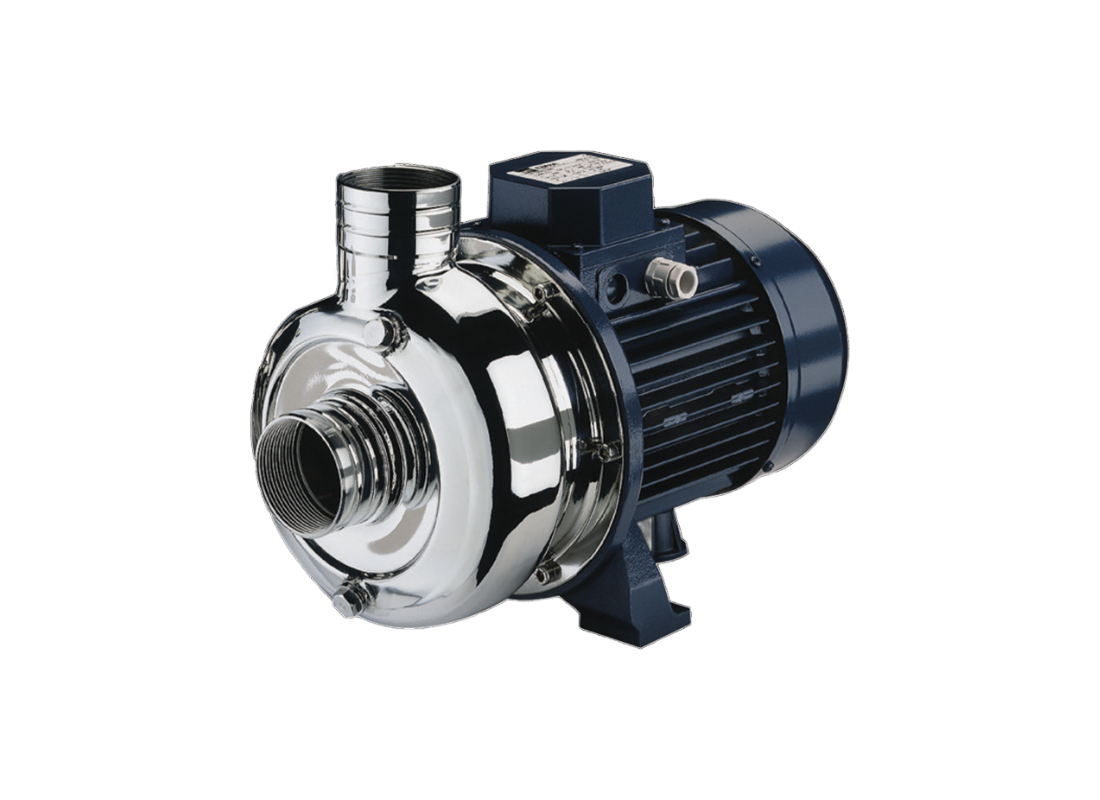

Ebara DWO 200 Stainless Steel High Temperature Centrifugal Pump for Food Processing with Open Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
In processing environments where liquids are handled at elevated temperatures, maintaining consistent flow without compromising reliability is essential, and the Ebara DWO 200 High Temperature version is suited to these conditions. It is commonly used in food processing systems where thermal operation is part of normal workflow.
With a delivery capacity reaching approximately 750 L/Min and a maximum head of around 13 m, the pump supports applications requiring stable flow output with moderate discharge pressure.
Flow is supported through an open impeller configuration, allowing suspended particles to pass through without restriction. This helps maintain continuous operation in systems where fluid consistency may vary during use.
The pump is constructed from 304 stainless steel and incorporates a Carbon/Ceramic/Viton mechanical seal, enabling operation with liquid temperatures up to 110°C. A close coupled design combined with back pull-out construction allows maintenance access without disturbing pipework connections.
FEATURES
- Open impeller design supporting solids up to 19 mm
- High temperature mechanical seal (Carbon/Ceramic/Viton)
- 304 stainless steel liquid end construction
- Close coupled design for compact installation
- Back pull-out construction for simplified servicing
- Top centreline discharge reducing pipe stress
- Foot support under motor for improved alignment
- Designed for efficient continuous duty operation
SPECIFICATIONS
| Max Flow | 750 L/Min |
| Max Head | 13 m |
| Power | 1.5 kW / 415v |
| Rated Current | 4.1 Amps |
| Suitable For | Food Processing |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 110°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What liquid temperature can the high-temperature version withstand?
A Carbon/Ceramic/Viton mechanical seal equips the DWO_200_HT for liquids reaching 110°C, supporting elevated-temperature processing during normal pump operation and regular use.
What flow capacity is available in this version?
The DWO 200 HT delivers approximately 750 L/Min, making it suitable for high-throughput systems that need controlled discharge pressure during process operation.
Which impeller design permits passage of suspended particles?
An open impeller lets the DWO-200-HT move liquids containing suspended particles, helping the hydraulic section maintain unrestricted flow through the pump.
Which material is used for the wetted construction?
The wetted construction of the DWO/200/HT uses 304 stainless steel, while its mechanical seal is configured for higher liquid temperatures.
Can technicians service it without disconnecting pipework?
Back pull-out construction gives technicians access to the DWO200HT internals without disturbing the pipe connections already installed in the system.
