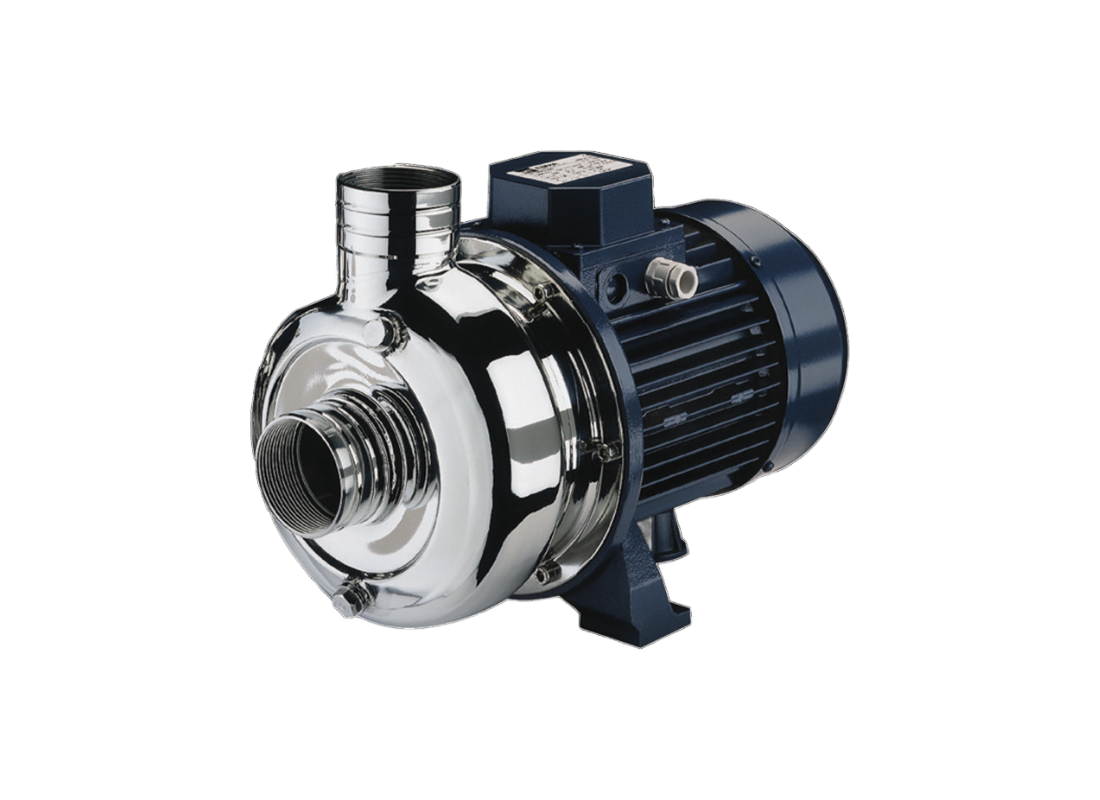

Ebara DWO 300 Stainless Steel General Duty Centrifugal Pump for Spray Systems with Open Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Reliable liquid movement within spray-based operations depends on steady delivery and system consistency, and the Ebara DWO 300 is configured to support these requirements. It is commonly integrated into installations where uniform distribution plays a key role in process effectiveness.
Operating at flow rates up to approximately 950 L/Min with a maximum head of around 15 m, the pump is suited to applications that demand higher volume transfer while maintaining controlled pressure conditions.
An open impeller arrangement governs fluid movement, enabling uninterrupted passage through the hydraulic section. This configuration supports stable performance even when operating conditions fluctuate during use.
Manufactured using 304 stainless steel, the unit provides structural integrity in demanding environments. The standard mechanical seal allows operation with liquid temperatures up to 90°C, while the close coupled layout and back pull-out construction simplify servicing without disturbing installed pipework.
FEATURES
- Open impeller configuration enabling unrestricted fluid movement
- 304 stainless steel construction across wetted components
- Standard mechanical seal suited to general duty operation
- Close coupled design reducing installation footprint
- Back pull-out arrangement for simplified internal access
- Top centreline discharge supporting pipe alignment stability
- Foot-mounted motor support improving structural balance
- Engineered for continuous operation under varying conditions
SPECIFICATIONS
| Max Flow | 950 L/Min |
| Max Head | 15 m |
| Power | 2.2 kW / 415v |
| Rated Current | 4.5 Amps |
| Suitable For | Spray Systems |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 90°C |
| Inlet Size | 50 mm |
| Outlet Size | 65 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which applications are identified for this pump?
Spray-based operations use the DWO_300 for consistent liquid movement, with its open impeller supporting fluid passage through the hydraulic section.
What flow capacity is available for high-volume duties?
Approximately 950 L/Min of flow is available from the DWO 300, supporting transfer systems that need high throughput and controlled output.
What maximum head does this model achieve?
A maximum head of around 15 m is provided by the DWO-300, defining its stated discharge capability for process circulation and transfer.
Which liquid temperature is supported by standard sealing?
With its standard mechanical seal, the DWO/300 handles liquid temperatures up to 90°C in general-duty cleaning and process applications during routine operation.
How can internal pump components be maintained?
Back pull-out construction allows technicians to reach the DWO300 internal components without disconnecting pipework, simplifying servicing within installed systems during planned service intervals.
