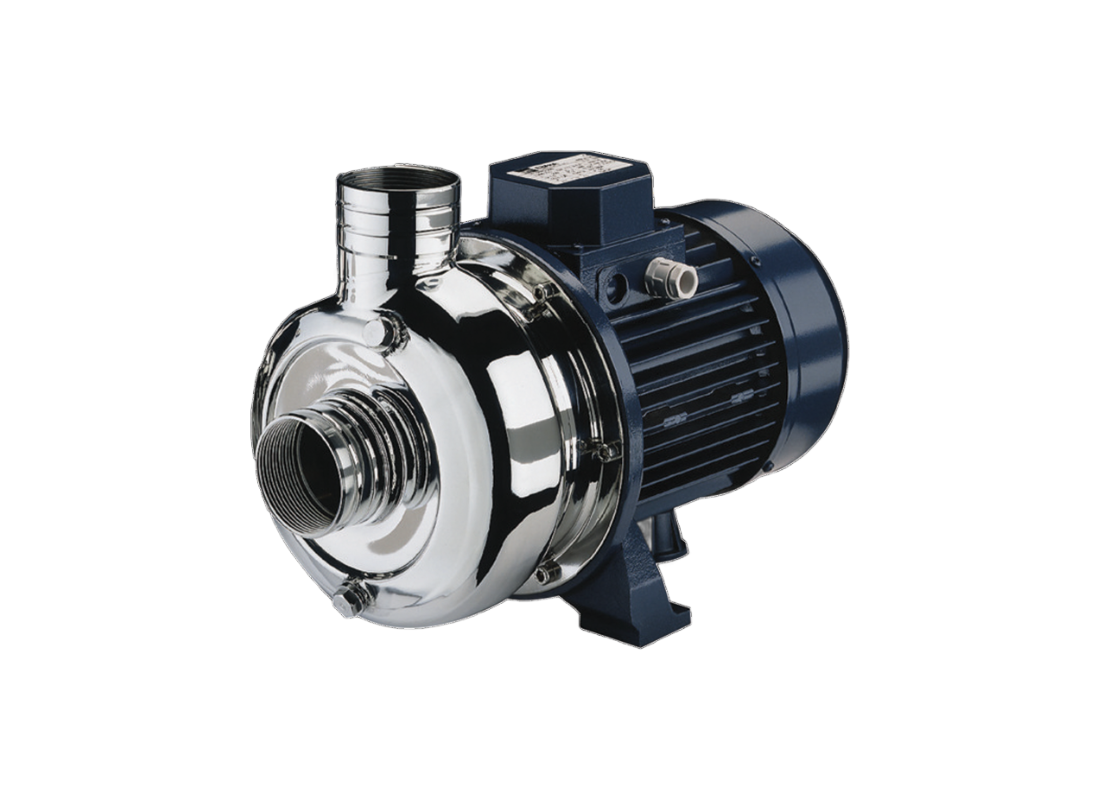

Ebara DWO 300 Stainless Steel High Temperature Centrifugal Pump for Fluid Systems with Open Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Maintaining stable liquid circulation across integrated systems requires equipment that can operate consistently under varying thermal conditions, and the Ebara DWO 300 High Temperature version is configured to meet these demands. It is commonly utilised in fluid systems where reliability and continuous operation are essential.
Capable of delivering up to approximately 950 L/Min with a maximum head of around 15 m, the pump supports installations that require high flow capacity while maintaining controlled discharge pressure.
An open impeller configuration governs internal flow movement, allowing fluid to pass through the hydraulic section without restriction. This arrangement supports stable performance across changing operating conditions.
The unit is manufactured from 304 stainless steel and incorporates a Carbon/Ceramic/Viton mechanical seal, enabling operation with liquid temperatures up to 110°C. A close coupled design combined with back pull-out construction allows internal servicing without disturbing pipe connections.
FEATURES
- Open impeller configuration enabling unrestricted fluid passage
- High temperature mechanical seal (Carbon/Ceramic/Viton)
- 304 stainless steel construction across wetted components
- Close coupled design for compact installation
- Back pull-out construction for maintenance access
- Top centreline discharge supporting pipe alignment stability
- Foot support under motor for improved structural balance
- Engineered for continuous duty operation
SPECIFICATIONS
| Max Flow | 950 L/Min |
| Max Head | 15 m |
| Power | 2.2 kW / 415v |
| Rated Current | 4.5 Amps |
| Suitable For | Fluid Systems |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 110°C |
| Inlet Size | 50 mm |
| Outlet Size | 65 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum liquid temperature for this version?
For elevated-temperature circulation, the DWO_300_HT uses a Carbon/Ceramic/Viton mechanical seal and handles liquids up to 110°C during operation in process duties.
What maximum head is available for system discharge?
A maximum head of around 15 m is provided by the DWO 300 HT, giving installations a stated limit for discharge pressure.
How much flow can this high-temperature version deliver?
The DWO-300-HT reaches approximately 950 L/Min, supporting high-volume transfer where controlled discharge pressure is required in elevated-temperature systems during normal operation.
What impeller design manages internal liquid movement?
An open impeller directs flow through the DWO/300/HT, allowing liquid to move through the hydraulic section without an obstructed passage.
How can the pump be serviced in place?
Its close-coupled layout and back pull-out arrangement give technicians access to the DWO300HT internals without disturbing connected pipework during maintenance.
