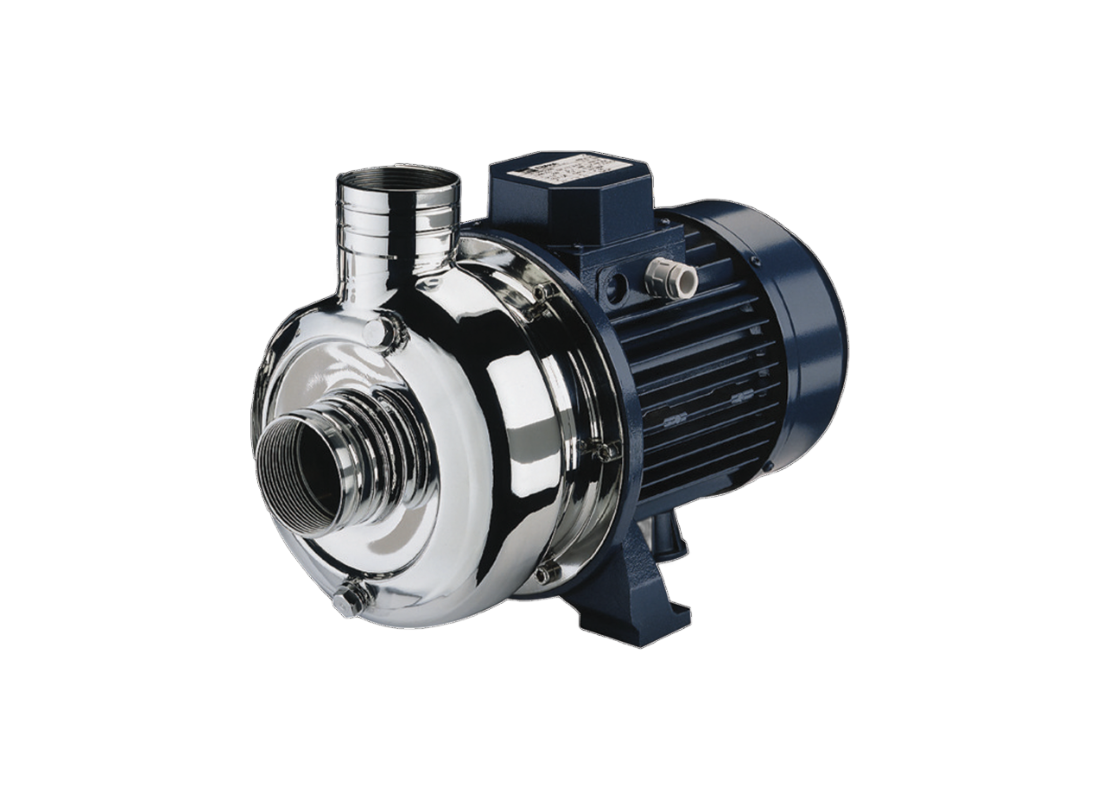

Ebara DWO M 200 Stainless Steel Hard Faced Centrifugal Pump for Abrasive Cleaning with Open Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Applications that involve suspended particles or abrasive content require a pump that can maintain performance without excessive wear, and the Ebara DWO M 200 Hard Faced version is suited to these conditions. It is commonly used in cleaning systems and process environments where fluid composition may vary.
The pump delivers up to approximately 750 L/Min and develops a maximum head of around 13 m based on the performance curve. This operating range supports steady flow delivery where moderate pressure and reliable throughput are required.
An open impeller arrangement allows soft solids to pass through the pump without obstruction, helping maintain consistent operation when minor debris is present in the fluid stream.
The Silicon Carbide (SiC/SiC/Viton) mechanical seal is engineered for increased resistance to abrasive wear, supporting extended service life in demanding conditions. The pump body is constructed from 304 stainless steel, providing durability when handling clean or lightly contaminated liquids.
FEATURES
- Hard faced mechanical seal (SiC/SiC/Viton) for abrasive resistance
- Open impeller configuration for uninterrupted flow handling
- 304 stainless steel pump construction
- Single stage centrifugal hydraulic design
- Engineered for continuous duty applications
- Stable performance across varying load conditions
- Compact design for flexible installation
- Suitable for abrasive fluid handling environments
SPECIFICATIONS
| Max Flow | 750 L/Min |
| Max Head | 13 m |
| Power | 1.5 kW / 240v |
| Rated Current | 9.2 Amps |
| Suitable For | Abrasive Cleaning |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 110°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which mechanical seal is intended to resist abrasive wear?
For abrasive duties, Silicon Carbide seal faces equip the Hard Faced DWO_M_200_HF with SiC/SiC/Viton construction to resist wear in demanding service.
What approximate maximum head is indicated by the performance curve?
For process and cleaning duties, the DWO M 200 HF reaches an approximate maximum head of 13 m in its stated operating range.
How much liquid can this model deliver approximately?
Approximately 750 L/Min of liquid can be moved by the DWO-M-200-HF for steady process and industrial cleaning throughput under its stated operating conditions.
Which impeller arrangement supports fluid movement with particles present?
The open-impeller arrangement in the DWO/M/200/HF allows soft solids to pass while maintaining liquid movement when minor debris is present during industrial cleaning duties.
What pump material is specified for wetted components?
Its 304 stainless steel wetted components allow the DWOM200HF to handle clean or lightly contaminated liquids in industrial cleaning and process systems.
