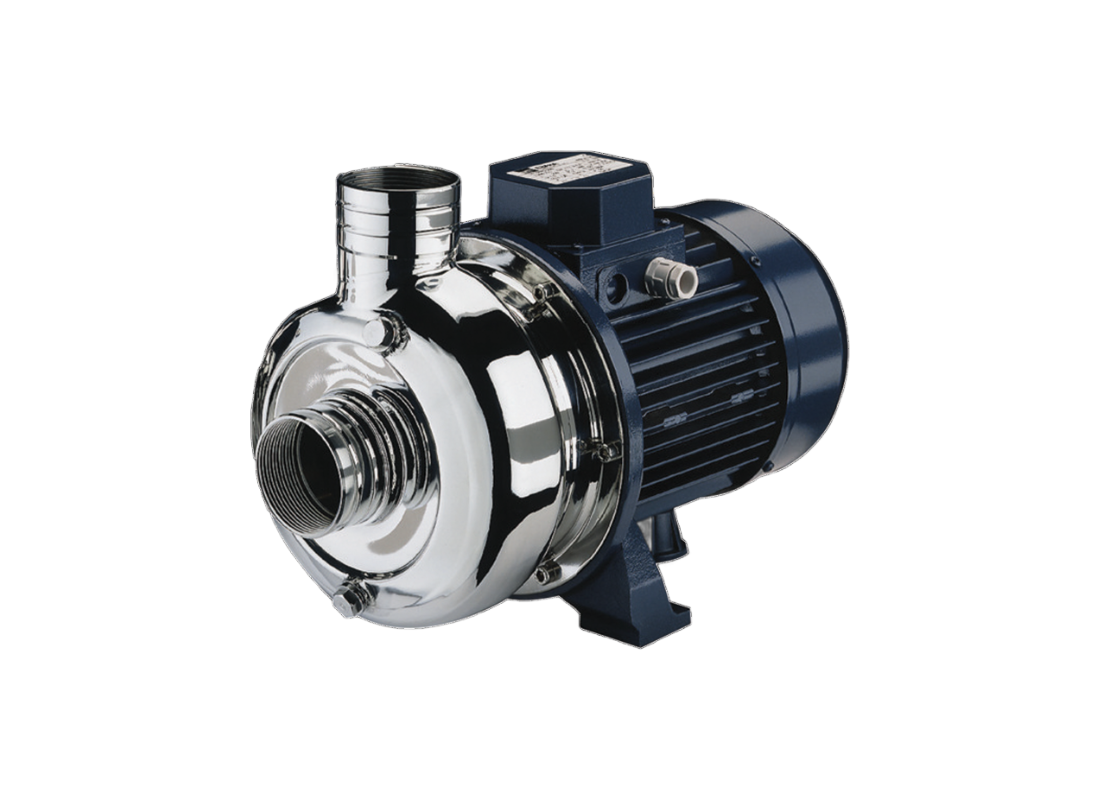

Ebara DWO M 200 Stainless Steel High Temperature Centrifugal Pump for Hot Washdown with Open Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
In systems where elevated liquid temperatures are part of daily operation, the Ebara DWO M 200 High Temperature version is configured to maintain consistent output without compromising reliability. It is commonly installed in cleaning lines and process setups where thermal conditions are part of normal operation.
With a delivery capacity reaching approximately 750 L/Min and a maximum head of around 13 m, the pump is positioned for applications that require steady throughput while maintaining controlled discharge pressure.
Flow passage is managed through an open impeller arrangement, allowing suspended particles to pass through without disruption. This helps maintain operational continuity in environments where fluid quality may vary during use.
A Carbon/Ceramic/Viton sealing system enables operation at liquid temperatures up to 110°C, supporting stable performance under thermal load. The pump structure, manufactured from 304 stainless steel, provides durability and resistance when handling clean or lightly contaminated fluids.
FEATURES
- Open impeller configuration for uninterrupted flow handling
- 304 stainless steel pump construction
- High temperature mechanical seal (Carbon/Ceramic/Viton)
- Single stage centrifugal hydraulic design
- Designed for continuous duty applications
- Consistent hydraulic performance across load variations
- Compact footprint for installation flexibility
- Suitable for thermally demanding cleaning systems
SPECIFICATIONS
| Max Flow | 750 L/Min |
| Max Head | 13 m |
| Power | 1.5 kW / 240v |
| Rated Current | 9.2 Amps |
| Suitable For | Hot Washdown |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 110°C |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What liquid temperature is supported by the high-temperature seal?
For elevated liquid temperatures, the DWO_M_200_HT uses a Carbon/Ceramic/Viton mechanical seal for operation up to 110°C in washdown duties reliably.
What approximate delivery capacity does this pump achieve?
With approximately 750 L/Min delivery, the DWO M 200 HT supports process and cleaning systems that require steady liquid throughput.
Which mechanical seal materials are fitted to the high-temperature version?
Carbon/Ceramic/Viton seal construction equips the DWO-M-200-HT for liquids reaching 110°C, supporting elevated-temperature process handling and hot washdown duties in industrial cleaning systems.
How does the impeller support movement of suspended particles?
Suspended particles can pass through the DWO/M/200/HT open impeller, supporting continuous liquid movement during process handling and cleaning operations for these applications.
What approximate maximum head is indicated by the performance curve?
At approximately 13 m, the DWOM200HT reaches its maximum head within the stated hydraulic operating range for process and cleaning duties.
