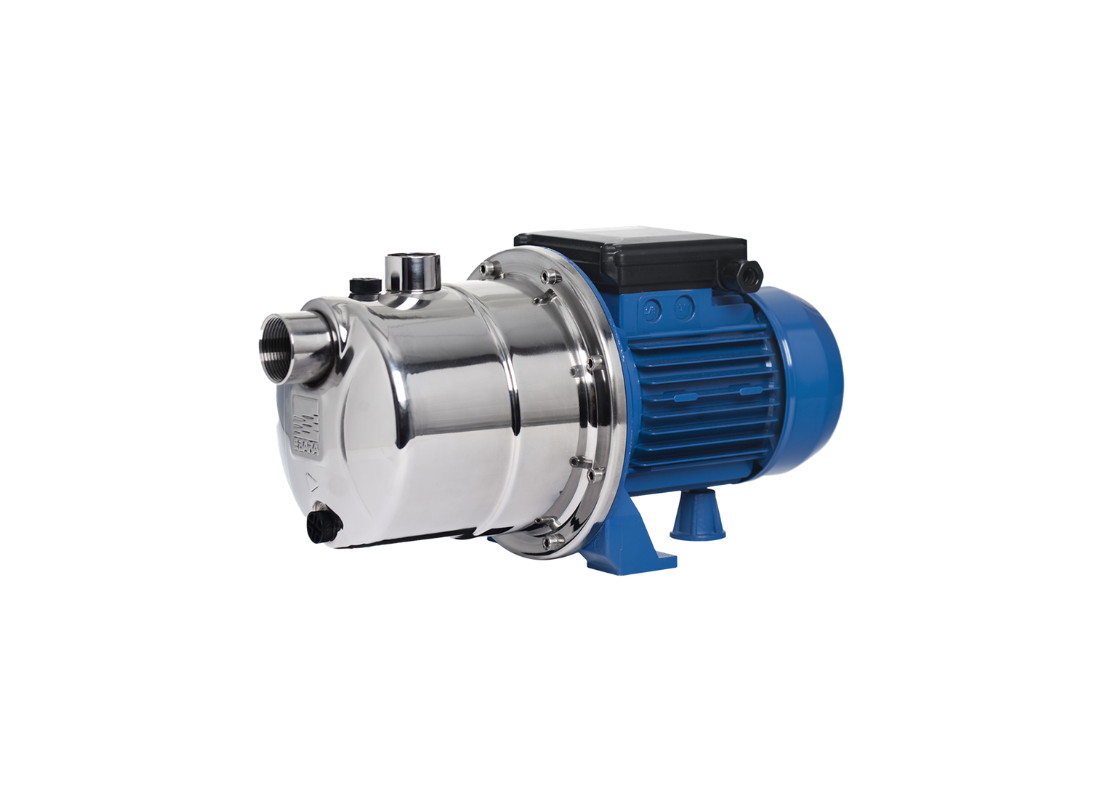

Ebara JEXM 150 Stainless Steel Self-Priming Jet Pump for Tank Emptying with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Where stronger suction performance and efficient clean water movement are required, the Ebara JEXM 150 delivers dependable operation for tank emptying, water transfer, small scale irrigation, and pool draining applications. Its self-priming jet pump design makes it suitable for installations with suction lift conditions requiring stable water delivery.
With flow performance reaching 75 L/Min and head capacity up to 49 metres, the pump provides stable pressure across varying operating conditions. The hydraulic arrangement supports smooth circulation through transfer systems, irrigation lines, and installations requiring controlled water movement.
Water transfer is handled through a closed 304 stainless steel impeller and jet-assisted diffuser system engineered for reliable self-priming operation and stable hydraulic efficiency. The jet pump configuration assists with improved suction capability while helping maintain smooth clean water circulation during continuous-duty operation.
The construction incorporates a 304 stainless steel pump casing and casing cover for improved corrosion resistance and long-term durability. A Carbon/Ceramic/NBR mechanical seal supports dependable sealing stability, while the TEFC motor with IP55 protection, Class F insulation, and automatic thermal overload protection improves operational reliability. Its compact close-coupled design also simplifies installation and servicing access.
FEATURES- Self-priming jet pump suitable for suction lift installations
- Closed 304 stainless steel impeller supports durable clean water transfer
- 304 stainless steel pump casing improves corrosion resistance
- Suitable for tank emptying, irrigation, and water transfer applications
- Automatic thermal overload protection enhances motor safety
- Carbon/Ceramic/NBR mechanical seal arrangement for dependable sealing stability
- TEFC 2-pole motor construction with IP55 protection and Class F insulation
- Supplied with 1.8 metre cable and 3-pin plug for simplified installation
SPECIFICATIONS
| Max Flow | 75 L/Min |
| Max Head | 49 m |
| Power | 1.1 kW / 240v |
| Rated Current | 7.6 Amps |
| Suitable For | Tank Emptying |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 45°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum head is available for pressure delivery?
Elevated clean-water service can use the 49 m maximum head available from JEXM_150 across suitable transfer and irrigation pipework duties.
Which applications require this jet pump's suction capability?
Tank emptying, irrigation, pool draining and water transfer suit JEXM 150 where suction-lift operation is required for clean-water movement in domestic handling systems.
How much clean water can the pump transfer?
Clean-water transfer can reach a maximum flow of 75 L/Min through JEXM-150 for irrigation and domestic water-handling duties across suitable transfer systems.
What impeller arrangement is used for pumping?
Self-priming hydraulics combine a closed 304 stainless steel impeller with a jet-assisted diffuser in JEXM/150 for controlled clean-water transfer operation.
Which electrical protection features are included with the motor?
IP55 protection, Class F insulation and automatic thermal overload protection are included with the TEFC motor on JEXM150 for reliable electrical operation.
