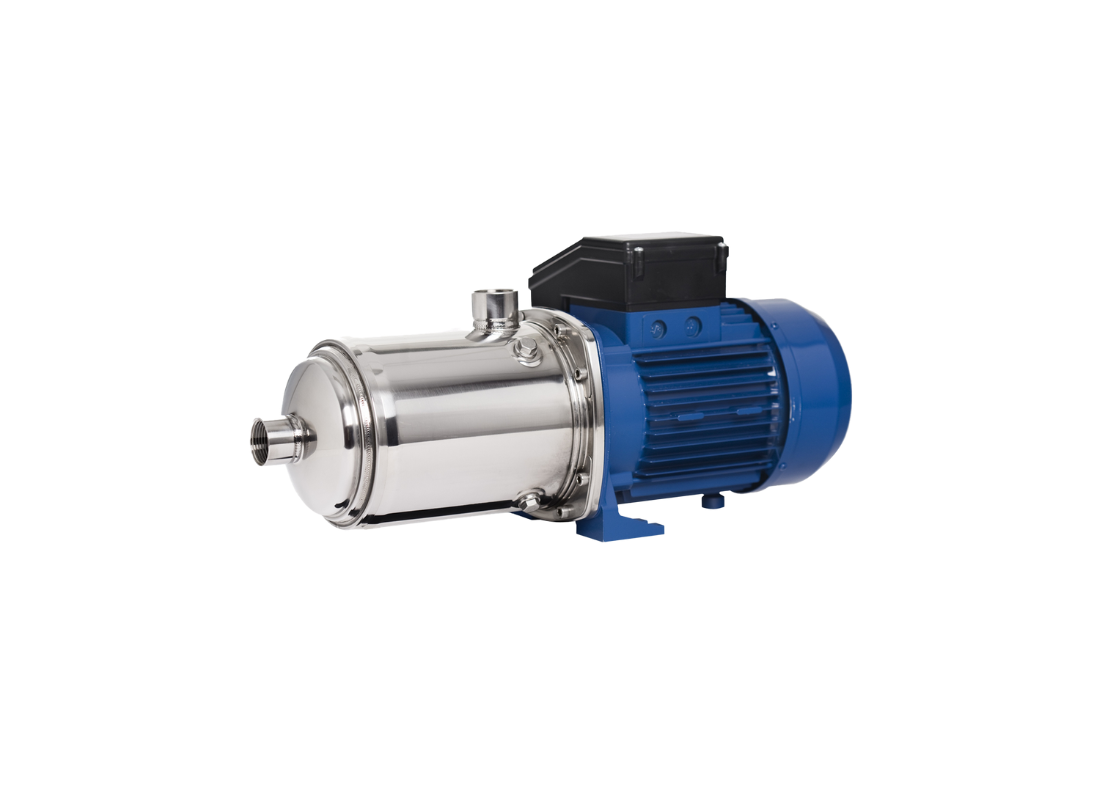

Ebara MATRIX 10-5T/2.2M Stainless Steel Multistage Centrifugal Pump for Handling Clean Water with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Where systems require reliable movement of clean water across distribution and supply networks, this horizontal multistage pump supports clean water handling, commercial supply systems, and controlled distribution applications. Its configuration is suited to installations where both flow capacity and pressure stability are essential.
With flow reaching up to 250 L/Min and a maximum head of 60.0 meters, the unit delivers strong hydraulic performance across its operating range. The performance curve ensures stable discharge characteristics with consistent pressure under varying system demands.
The multistage hydraulic design progressively increases pressure through multiple impellers, enabling efficient energy usage and reliable operation in both boosting and distribution systems. This ensures consistent output across multiple outlets.
The construction incorporates AISI 304 stainless steel for the casing, impellers, and shaft (wetted parts), ensuring corrosion resistance. A Carbon/Ceramic/EPDM mechanical seal provides reliable sealing, while the TEFC motor with IP55 protection and Class F insulation ensures dependable continuous-duty operation.
FEATURES
- Multistage design for combined high flow and pressure performance
- High capacity output suitable for distribution systems
- Stainless steel construction for corrosion resistance
- TEFC motor with IP55 protection for durability
- Class F insulation for continuous-duty operation
- Carbon/Ceramic/EPDM mechanical seal for reliable sealing
- Compact close-coupled design for efficient installation
- Single-phase motor suitable for commercial and utility applications
SPECIFICATIONS
| Max Flow | 250 L/Min |
| Max Head | 60 m |
| Power | 2.2 kW / 240v |
| Rated Current | 13 Amps |
| Suitable For | Handling Clean Water |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 85°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor construction supports continuous-duty operation in commercial water systems?
A TEFC motor with IP55 protection and Class F insulation drives MATRIX_10_5T_2_2M for continuous-duty commercial and utility water supply in utility pump installations.
Which distribution systems are suited to this pump?
Commercial clean-water supply and controlled distribution systems suit MATRIX 10 5T 2 2M where steady flow and pressure are both required.
What flow capacity is available for supply networks?
Commercial supply networks can draw up to 250 L/Min from MATRIX-10-5T-2-2M, supporting larger distribution systems and multi-outlet delivery with stable flow.
What maximum head supports pressure delivery in commercial supply installations?
A maximum head of 60.0 m is available from MATRIX/10/5T/2/2M for elevated pipelines and commercial distribution systems requiring pressure support.
How does the multistage design support distribution?
Progressive pressure development through multiple impellers helps MATRIX105T22M maintain consistent discharge for boosting and distribution applications across commercial water networks.
