Ebara Optima M Stainless Steel Submersible Drainage Pump Manual
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview

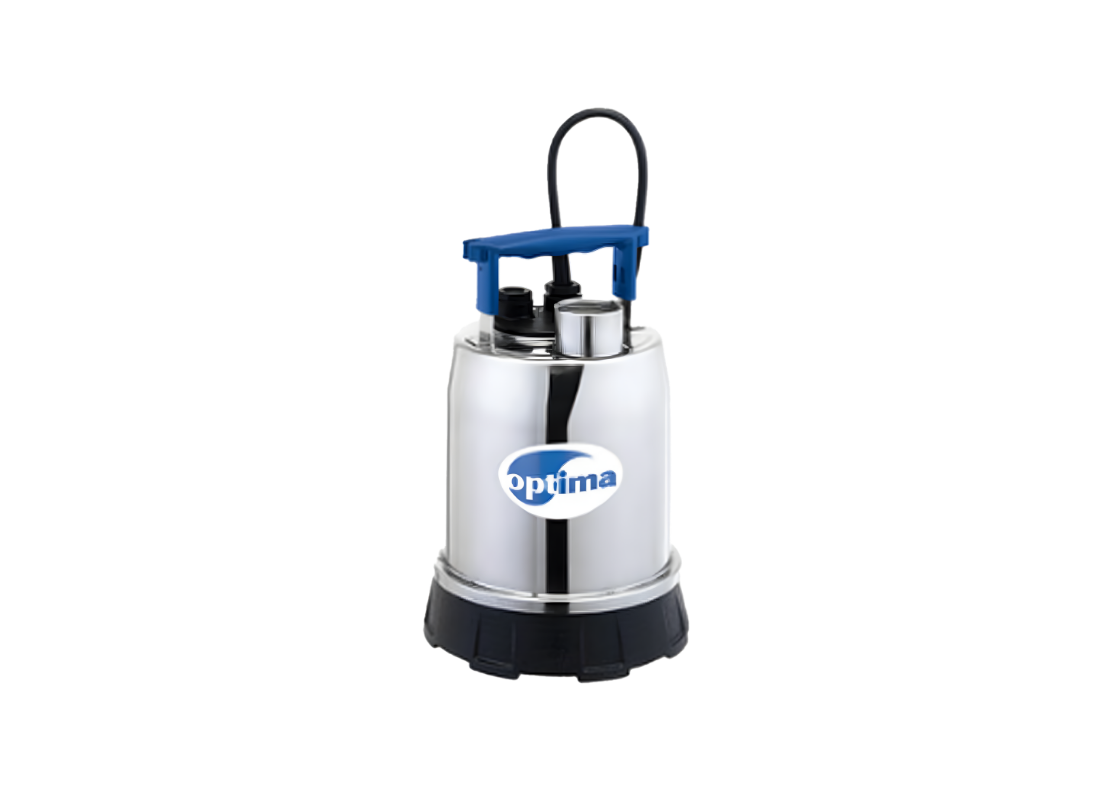

The Ebara Optima M is a compact stainless steel submersible drainage pump designed for reliable removal and transfer of clean water in domestic and light-duty drainage applications. Manufactured from high-quality 304 stainless steel and reinforced thermoplastic components, the pump offers excellent durability and corrosion resistance when operating in wet environments.
This model features a semi-open impeller designed to efficiently move clean or lightly contaminated water typically found in basements, wells, tanks and drainage pits. The manual version (M) allows the pump to operate continuously when powered, giving installers full control over operation using an external switch or control system.
The pump is powered by a 0.25 kW single-phase motor with built-in overload protection and IP68 protection for safe submerged use. A carbon/ceramic mechanical seal within an oil-lubricated chamber protects the motor from water ingress and ensures long-term reliability.
Compact, durable and easy to install, the Ebara Optima M provides an efficient solution for domestic drainage, sump pumping and water transfer applications.
FEATURES
- 304 stainless steel pump casing and outer housing for corrosion resistance
- Semi-open impeller design for efficient clean water drainage
- Manual operation for external control or continuous pumping applications
- Carbon/ceramic mechanical seal in oil lubricated chamber for durability
- Air-filled dry motor with IP68 protection for submerged operation
- Built-in thermal overload protection
- 5 metre power cable with plug for easy installation
- Suitable for sump pits, basements, tanks and general water transfer
SPECIFICATIONS
| Max Flow | 150 L/min |
| Max Head | 7.6 m |
| Power | 0.25 kW / 240v |
| Rated Current | 1.9 Amps |
| Suitable For | Clean Water Drainage / Basement Dewatering / Tanks / Water Transfer |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 50°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How is pump operation controlled without an integrated float switch?
The manual OPTIMA_M has no float switch and runs when powered, with external switching or level controls managing operation manually.
What motor output is provided for routine domestic drainage duties?
Power comes from a 0.25 kW single-phase motor in the OPTIMA M, with built-in overload protection for domestic drainage and sump transfer.
Which water types can this pump move through its impeller?
A semi-open impeller in the OPTIMA-M transfers clean or lightly contaminated water from domestic sump pits and tanks for drainage.
What cable and protection features support submerged installation?
IP68 protection supports submerged operation while the OPTIMA/M is supplied with a 5 metre power cable and plug for connection.
Which sealing arrangement helps protect the motor during operation?
Water ingress is limited by a carbon/ceramic mechanical seal inside an oil-lubricated chamber in the OPTIMAM, helping protect the motor during submerged operation.
