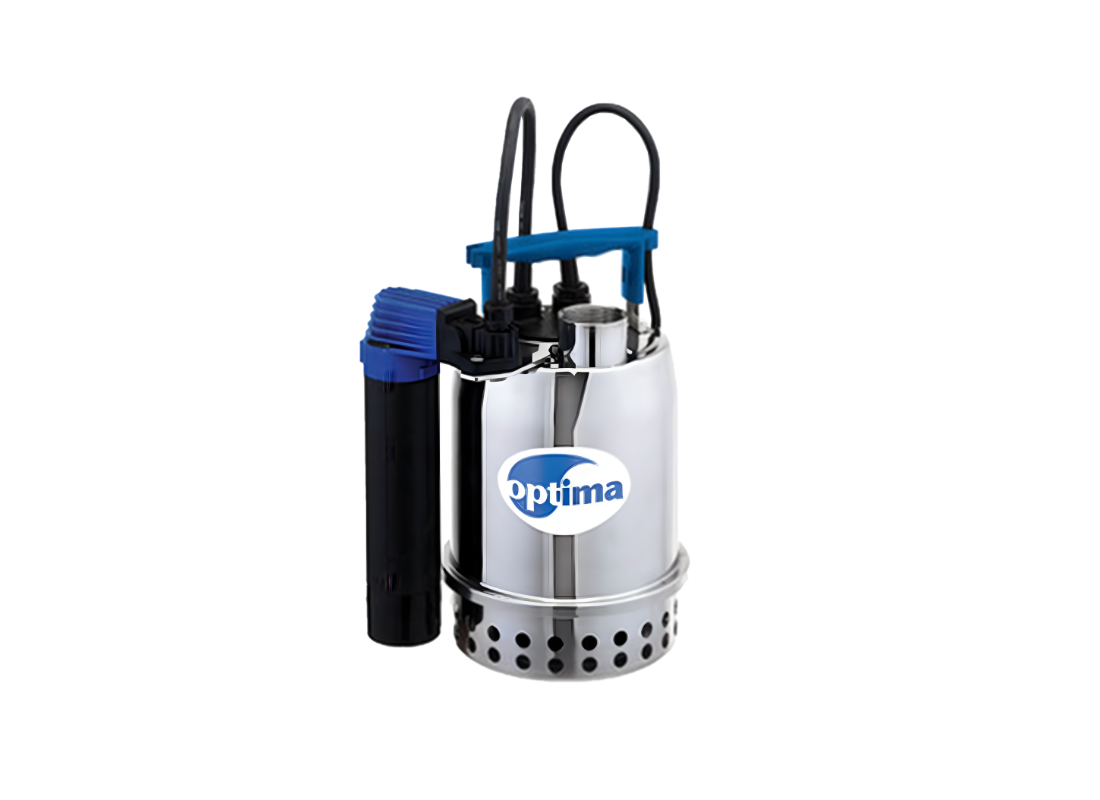

Ebara Optima MS Stainless Steel Submersible Drainage Pump with Magnetic Switch
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
The Ebara Optima MS is a compact stainless steel submersible drainage pump designed for automatic removal of clean water in domestic and light-duty drainage applications. Manufactured using 304 stainless steel and reinforced thermoplastic components, the pump provides excellent corrosion resistance and durability in wet environments.
This model features a semi-open impeller design that efficiently handles clean or lightly contaminated water commonly found in basements, sumps, tanks and drainage pits. The integrated magnetic switch system enables automatic operation at low water levels without the need for a traditional external float switch, making it ideal for installations where space is limited.
Powered by a 0.25 kW single-phase motor, the Optima MS includes built-in thermal overload protection and IP68 protection for safe submersible operation. A carbon/ceramic mechanical seal located in an oil-lubricated chamber protects the motor from water ingress while ensuring reliable long-term performance.
With its compact design, corrosion resistant construction and automatic magnetic level control, the Ebara Optima MS provides an efficient and dependable solution for domestic drainage and water transfer systems.
FEATURES
- 304 stainless steel pump casing and outer housing for corrosion resistance
- Magnetic level switch for automatic pump operation without external float
- Semi-open impeller design suitable for clean water drainage
- Carbon/ceramic mechanical seal in oil lubricated chamber for durability
- Air-filled dry motor with IP68 protection for safe submerged operation
- Built-in thermal overload protection
- 5 metre power cable with plug for simple installation
- Ideal for narrow sump pits, tanks, basements and drainage wells
SPECIFICATIONS
| Max Flow | 150 L/min |
| Max Head | 7.6 m |
| Power | 0.25 kW / 240v |
| Rated Current | 1.9 Amps |
| Suitable For | Clean Water Drainage / Basement Dewatering / Tanks / Water Transfer |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 50°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What level-control feature enables automatic operation in narrow pits?
Low-level sensing is handled by the integrated magnetic switch on the OPTIMA_MS, which starts and stops the pump automatically in narrow pits.
Which construction materials are used in this submersible pump?
Its construction combines 304 stainless steel with reinforced thermoplastic components to provide corrosion resistance throughout the OPTIMA MS pump assembly.
How much motor power is provided for drainage applications?
Automatic low-level operation is supported by the OPTIMA-MS's 0.25 kW single-phase motor, which includes built-in thermal overload protection for household drainage and sump duties.
What impeller arrangement handles clean water during dewatering?
The semi-open impeller on the OPTIMA/MS moves clean or lightly contaminated water from tanks sumps and narrow pits during drainage for domestic dewatering duties.
Which features protect the motor during continuous submerged use?
An oil-chamber carbon/ceramic mechanical seal works with IP68 protection on the OPTIMAMS to help shield the motor during underwater drainage cycles.
