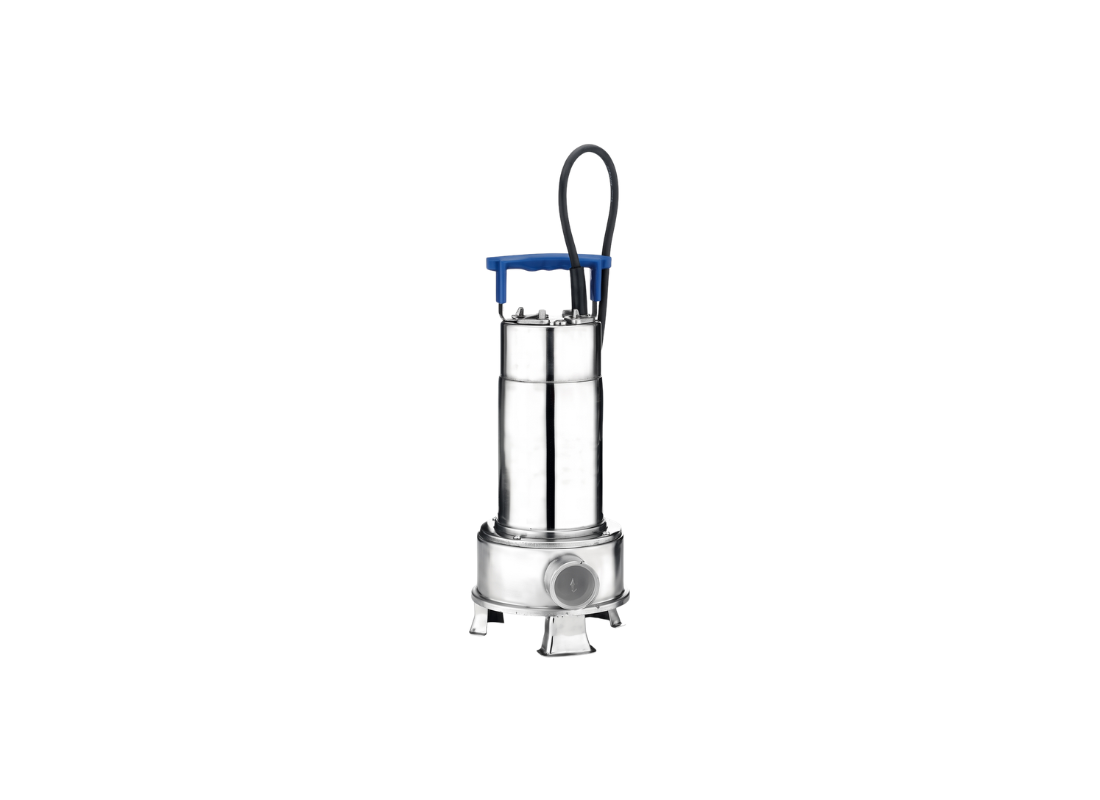

Ebara Right 100 M Stainless Steel Submersible Wastewater Pump for Sewage Draining with Semi Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Double mechanical seals in an oil lubricated chamber provide containment for the Ebara Right 100 M submersible wastewater pump. This manual unit is designed for general wastewater and drainage of soft or fibrous suspended solids. It is suitable for both stationary and temporary installations in vertical setups.
Constructed from AISI 304 Stainless Steel, the pump casing, impeller, suction cover, and motor bracket comprise the main assembly. The semi vortex impeller handles suspended particles within a 35 mm clearance. The shaft is AISI 303 Stainless Steel, with the entire pump assembly weighing 12 kg and operating in liquids up to 50°C.
The 0.75 kW motor operates on a 240v supply at 50 Hz with a rated current of 5.7 Amps. The pump achieves a maximum head of 9.5 meters and a maximum capacity of 300 L/Min through a 40 mm discharge outlet. The motor integrates an air-filled, dry submersible two-pole motor design.
Thermal protection is provided by Class F motor insulation with an IP68 protection rating. The assembly allows immersion depths up to 10 meters. Double mechanical seals in an oil lubricated chamber provide containment. The lower faces are Silicon Carbide and the upper faces are Carbon/Ceramic with NBR elastomers. The seal chamber contains white mineral oil.
Features
- The pump is supplied with an H07RN-F power cable as specified by the manufacturer.
- Incorporates sealed ball bearings on both the upper and lower shaft sides as specified by the manufacturer.
- Includes an impeller nut and impeller key manufactured from AISI 304 Stainless Steel.
- Features a pump support foot constructed from AISI 304 Stainless Steel for vertical positioning.
- Equipped with NBR rubber O-ring seals to maintain watertight compartment integrity.
- Features casing screws and structural washers manufactured from AISI 304 Stainless Steel.
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 9.5 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.7 Amps |
| Suitable For | Solids-Laden Fluid Transfer |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | Maximum 50°C |
| Outlet Size | 40 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor rating and supply are required?
Motor output is 0.75 kW for RIGHT_100_M, supplied by single-phase 240 V and drawing 5.7 Amps at 50 Hz. during drainage operation.
Which stainless steel grades form the assembly?
The casing and suction cover on RIGHT 100 M use AISI 304 stainless steel, and its drive shaft uses AISI 303 stainless steel.
What maximum head supports vertical wastewater discharge?
For vertical wastewater discharge, RIGHT-100-M provides a maximum head of 9.5 m through its 40 mm outlet.
What solids clearance is available for fibrous waste?
Soft and fibrous solids pass through the 35 mm semi-vortex clearance in RIGHT/100/M during general wastewater and drainage duties.
What immersion depth and temperature limits apply?
Liquid temperatures up to 50°C and immersion depths to 10 m are supported by the IP68-rated RIGHT100M in vertical installations.
