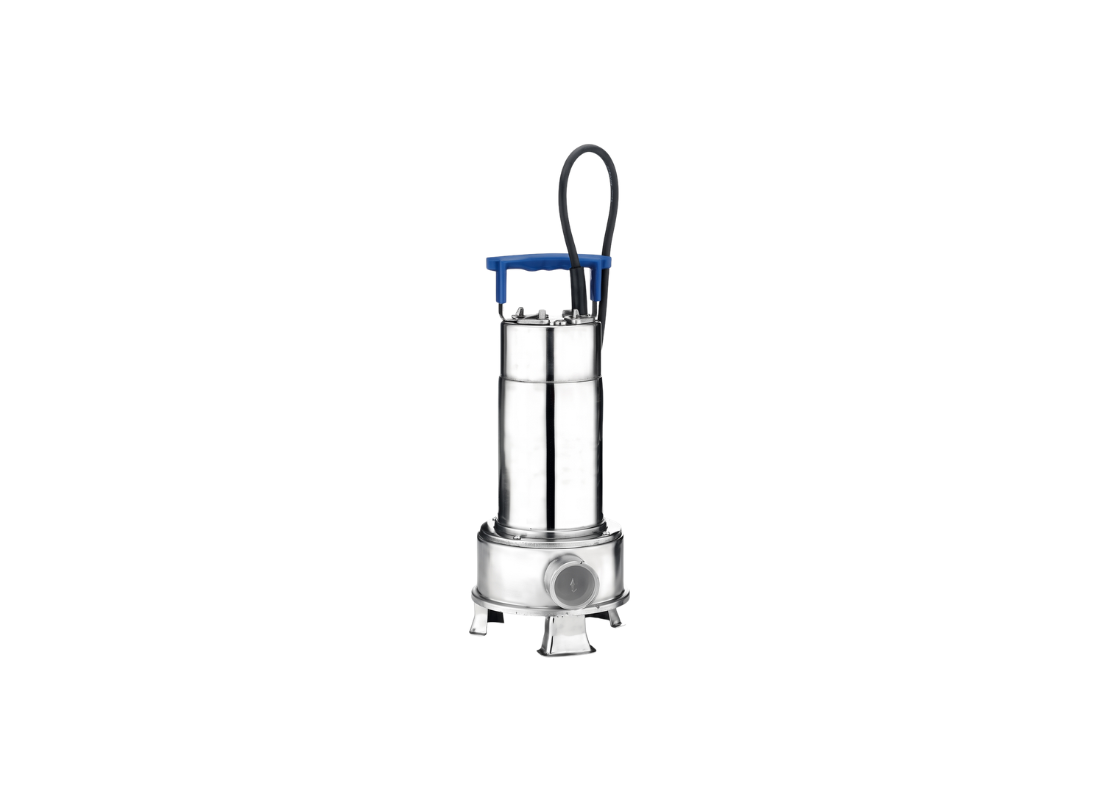

Ebara Right 75 M Stainless Steel Submersible Wastewater Pump for Sump Circulation with Semi Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Ebara
Peace of Mind
Product Overview
Flowing wastewater through a 40 mm discharge port, the Ebara Right 75 M submersible wastewater pump manages suspended particles with low hydraulic resistance. This model operates in water transfer configurations where solids clearance is needed. It is suitable for fixed and mobile vertical installations.
Constructed from AISI 304 Stainless Steel, the pump casing, impeller, suction cover, and motor bracket comprise the main assembly. The semi vortex impeller handles suspended particles within a 35 mm clearance. The shaft is AISI 303 Stainless Steel, with the entire pump assembly weighing 10 kg and operating in liquids up to 50°C.
The 0.55 kW motor operates on a 240v supply at 50 Hz with a rated current of 4.8 Amps. The pump achieves a maximum head of 7.8 meters and a maximum capacity of 240 L/Min through a 40 mm discharge outlet. The motor integrates an air-filled, dry submersible two-pole motor design.
Thermal protection is provided by Class F motor insulation with an IP68 protection rating. The assembly allows immersion depths up to 10 meters. Double mechanical seals in an oil lubricated chamber provide containment. The lower faces are Silicon Carbide and the upper faces are Carbon/Ceramic with NBR elastomers. The seal chamber contains white mineral oil.
Features
- The pump is supplied with an H07RN-F power cable as specified by the manufacturer.
- Incorporates sealed ball bearings on both the upper and lower shaft sides as specified by the manufacturer.
- Includes an impeller nut and impeller key manufactured from AISI 304 Stainless Steel.
- Features a pump support foot constructed from AISI 304 Stainless Steel for vertical positioning.
- Equipped with NBR rubber O-ring seals to maintain watertight compartment integrity.
- Features casing screws and structural washers manufactured from AISI 304 Stainless Steel.
SPECIFICATIONS
| Max Flow | 240 L/Min |
| Max Head | 7.8 m |
| Power | 0.55 kW / 240v |
| Rated Current | 4.8 Amps |
| Suitable For | Manual Wastewater Drainage |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | Maximum 50°C |
| Outlet Size | 40 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which wastewater duties suit this vertical installation?
Wastewater and fibrous drainage duties suit RIGHT_75_M in fixed or mobile vertical installations where solids need passage through its impeller.
What maximum flow is available during transfer?
A maximum flow of 240 L/Min is delivered by RIGHT 75 M through its 40 mm outlet during wastewater transfer.
How does the impeller accommodate suspended solids?
The semi-vortex impeller on RIGHT-75-M provides 35 mm clearance for suspended solids moving through the pump during drainage via its 40 mm outlet.
Which motor rating and electrical supply apply?
The single-phase 240 V motor in RIGHT/75/M delivers 0.55 kW and draws 4.8 Amps at 50 Hz.
Which submerged operating limits apply to this model?
The IP68-rated RIGHT75M supports immersion up to 10 m and liquid temperatures reaching 50°C in vertical drainage installations with its stainless steel assembly.
