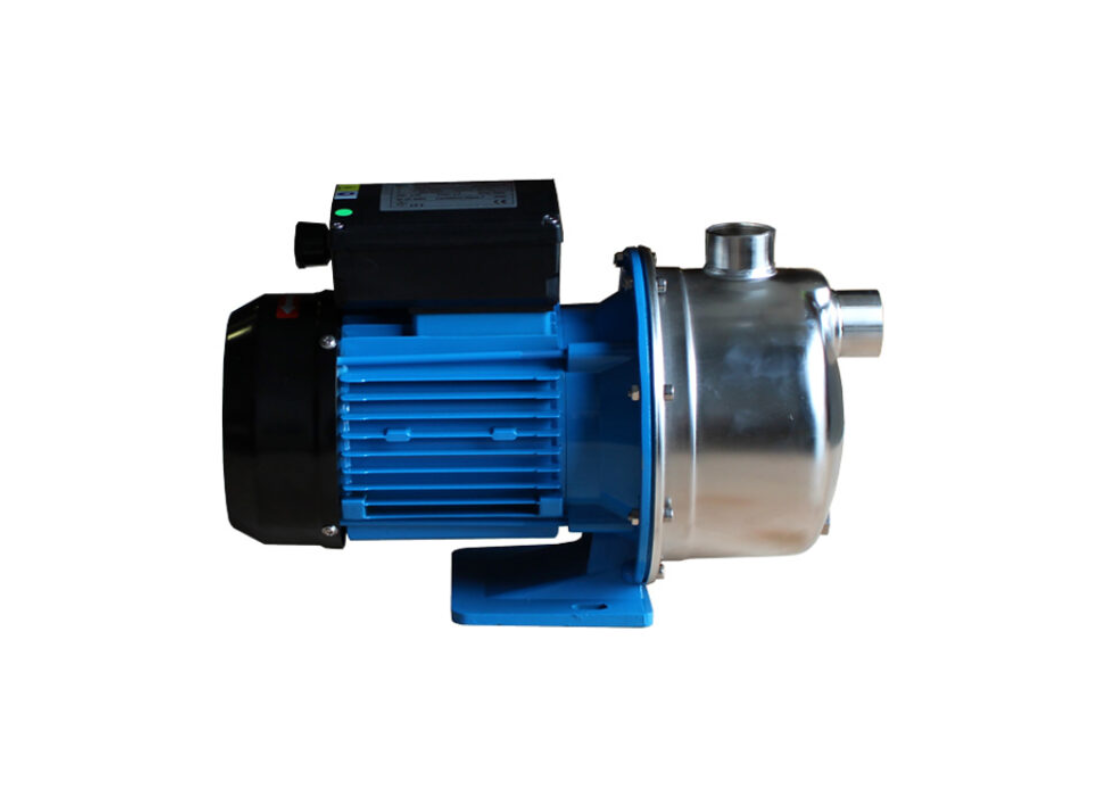

Goulds XBGR 100 Stainless Steel Self Priming Jet Pump
Australia-Wide
(08) 9240 2992
Official Goulds
Peace of Mind
Product Overview
The Goulds XBGR 100 is a high-performance stainless steel self-priming jet pump designed for domestic clean water transfer, pressure boosting, and rainwater harvesting systems. Built with a pressed stainless steel pump casing, 304 stainless steel impeller and aluminium motor housing, the pump offers strong corrosion resistance and dependable performance for household water supply and irrigation installations.
Powered by a 1.0HP (0.75kW) single-phase motor, the XBGR 100 delivers up to 70 litres per minute with a maximum operating pressure of approximately 400 kPa and a total head of up to 40 metres. The pump features an integrated ejector system that provides strong suction lift up to around 8-9 metres, helping the pump remain primed even when air is present in the suction line.
Supplied as a manual bare pump configuration, the XBGR 100 is designed to operate with external pressure switches, float switches or pump controllers. This flexible installation option makes it suitable for domestic water transfer, irrigation systems and rainwater tank supply setups where separate control systems are already installed.
FEATURES
- 1.0HP (0.75kW) single phase motor (240V)
- Maximum flow: 70 litres per minute
- Maximum operating pressure: 400 kPa
- Pressed stainless steel pump body
- 304 stainless steel impeller for corrosion resistance
- Self priming jet pump with integrated ejector system
- Manual bare pump configuration (no controller included)
- Suction lift capability up to 8-9 metres
- 1" inlet / 1" outlet
- Designed for domestic clean water applications
SPECIFICATIONS
| Max Flow | 70 L/Min |
| Max Head | 40 m |
| Power | 0.75 kW / 240v |
| Suitable For | Domestic Water Transfer / Irrigation / Rainwater Systems |
| Body Material | Stainless Steel |
| Liquid Temperature | +5°C to +35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which domestic water supply applications suit this self-priming jet pump?
The XBGR100 is a self-priming centrifugal jet pump designed for clean, non-aggressive water in domestic, garden and irrigation applications.
What is its maximum total head?
The maximum total head is rated at 40 m (4.0 bar). This is the maximum head rating, not the head available at maximum flow.
How does the built-in ejector system support priming?
The built-in ejector system provides suction-lift capability and is designed to help the pump remain primed even when dissolved gases are present in the water.
What maximum inlet water pressure is permitted?
The maximum inlet water pressure specified for the XBGR 100 is 2.0 bar.
Which liquid temperature range must be maintained?
The liquid temperature range of XBGR-100 is +5°C to +35°C.
