Goulds XBGR 50 Stainless Steel Self Priming Jet Pump
Australia-Wide
(08) 9240 2992
Official Goulds
Peace of Mind
Product Overview

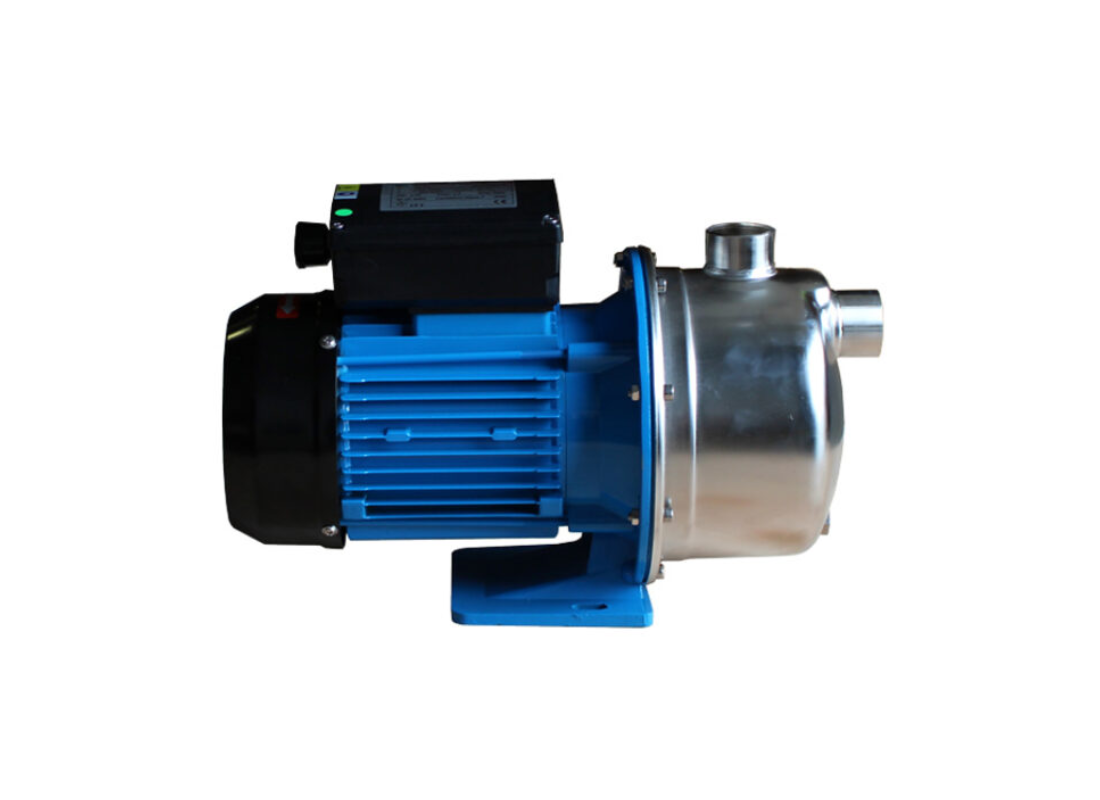

The Goulds XBGR 50 is a durable stainless steel self-priming jet pump designed for domestic clean water transfer and pressure boosting applications. Built with a pressed stainless steel pump body, 304 stainless steel impeller and aluminium motor housing, the pump provides excellent corrosion resistance and reliable performance for rainwater harvesting, tank filling, and irrigation systems.
Powered by a 0.5HP (0.37kW) single-phase motor, the XBGR 50 delivers up to 50 litres per minute with a maximum operating pressure of approximately 350 kPa and a total head up to around 40 metres. The integrated ejector system allows suction lift of up to 8-9 metres, helping the pump maintain prime even when air is present in the suction line.
Designed as a manual bare pump configuration, the XBGR 50 is supplied without an automatic controller, making it suitable for systems using external pressure switches, float switches or pump controllers. This flexible setup makes it ideal for domestic water systems, irrigation installations and rainwater supply applications.
FEATURES
- 0.5HP (0.37kW) single phase motor (240V)
- Maximum flow: 50 litres per minute
- Maximum operating pressure: 350 kPa
- Pressed stainless steel pump body
- 304 stainless steel impeller for corrosion resistance
- Self priming jet pump with integrated ejector system
- Manual bare pump configuration (no controller included)
- Suction lift capability up to 8-9 metres
- 1" inlet / 1" outlet
- Designed for domestic clean water applications
SPECIFICATIONS
| Max Flow | 50 L/Min |
| Max Head | 40 m |
| Power | 0.37 kW / 240v |
| Suitable For | Domestic Water Transfer / Irrigation / Rainwater Systems |
| Body Material | Stainless Steel |
| Liquid Temperature | +5°C to +35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum total head for domestic water supply?
The XBGR-50 has a maximum total head rating of 34 m (3.4 bar). The achievable flow depends on the operating conditions.
What are the motor input and output power ratings for this model?
The XBGR050 has a P1 input power rating of 0.55 kW and a P2 motor output rating of 0.37 kW
Is the pump certified for drinking water applications?
Yes. The XBGR series is AS4020 certified as suitable for drinking water applications and is designed for clean, non-aggressive water.
What inlet and outlet connection sizes are required?
The pump uses a 1-inch suction inlet and a 1-inch discharge outlet.
What is the maximum inlet water pressure?
The maximum inlet water pressure specified for the XBGR_50 is 2.6 bar.
