Goulds XBGR 75 Stainless Steel Self Priming Jet Pump
Australia-Wide
(08) 9240 2992
Official Goulds
Peace of Mind
Product Overview

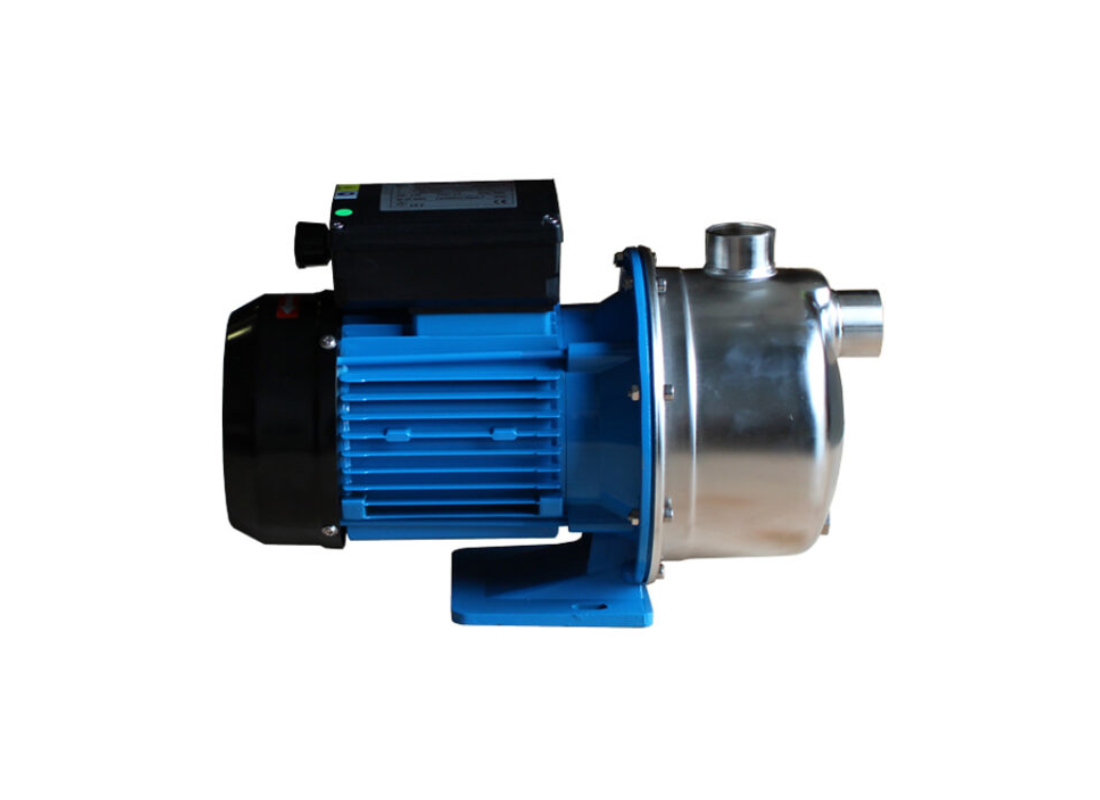

The Goulds XBGR 75 is a robust stainless steel self-priming jet pump designed for domestic clean water transfer, pressure boosting, and rainwater harvesting systems. Built with a pressed stainless steel pump casing, 304 stainless steel impeller and aluminium motor body, the XBGR 75 provides strong corrosion resistance and reliable performance for household water supply and irrigation installations.
Powered by a 0.75HP (0.55kW) single-phase motor, the XBGR 75 delivers up to 60 litres per minute with a maximum pressure of approximately 350 kPa and a total head up to around 40 metres. Its integrated ejector system allows suction lift up to 8-9 metres, helping the pump maintain prime and operate efficiently when drawing water from tanks, wells, or other shallow sources.
Designed as a manual bare pump configuration, the XBGR 75 is supplied without an automatic controller, allowing it to be paired with external pressure switches, pump controllers or irrigation control systems. This flexible configuration makes it suitable for domestic water transfer, rainwater tank supply and irrigation setups.
FEATURES
- 0.75HP (0.55kW) single phase motor (240V)
- Maximum flow: 60 litres per minute
- Maximum operating pressure: 350 kPa
- Pressed stainless steel pump body
- 304 stainless steel impeller for corrosion resistance
- Self priming jet pump with integrated ejector system
- Manual bare pump configuration (no controller included)
- Suction lift capability up to 8-9 metres
- 1" inlet / 1" outlet
- Designed for domestic clean water applications
SPECIFICATIONS
| Max Flow | 60 L/Min |
| Max Head | 40 m |
| Power | 0.55 kW / 240v |
| Suitable For | Domestic Water Transfer / Irrigation / Rainwater Systems |
| Body Material | Stainless Steel |
| Liquid Temperature | +5°C to +35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum head is specified for domestic water supply?
The XBGR_75 has a maximum total head rating of 34 m (3.4 bar), subject to operating conditions.
What motor power ratings are specified for this pump?
The XBGR75 has a P1 input power rating of 0.75 kW and a P2 motor output rating of 0.55 kW.
Which materials are used in the pump casing and impeller?
XBGR/75 is made with stainless-steel casing, a 304 stainless-steel impeller and an aluminium motor body.
Can it support garden watering and irrigation?
Yes. The XBGR series is intended for domestic applications, garden watering and irrigation using clean, non-aggressive water.
What is the maximum suction-lift capability?
The maximum suction lift of XBGR-75 is 8.5 m.
