SKU: XBGR100APC

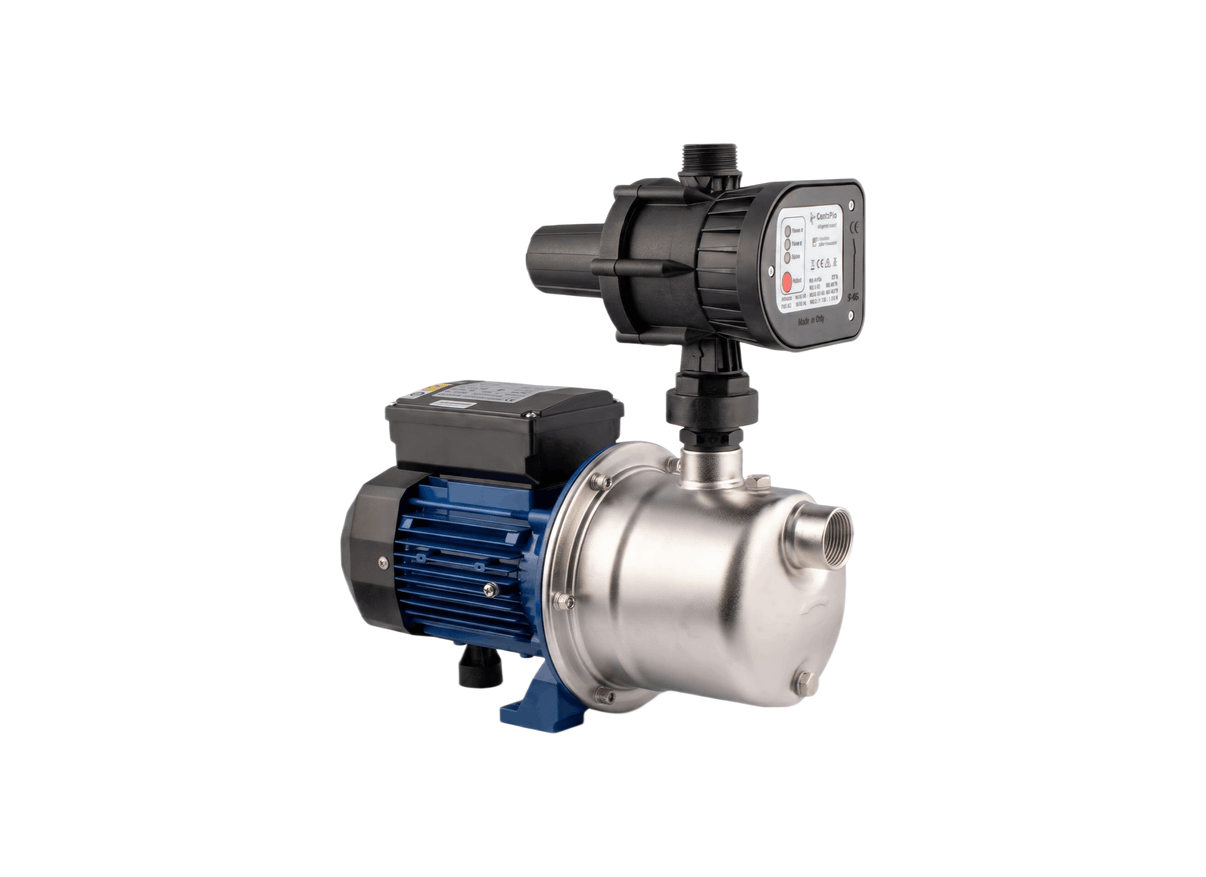

Goulds XBGR100-APC Stainless Steel Built-In Ejector Jet Pump for Garden Sprinkling with Electric Controller
Australia-Wide
(08) 9240 2992
Official Goulds
Peace of Mind
Product Overview
The Goulds XBGR100APC is a self-priming pressure system combining a centrifugal jet pump with an MP PLUS electronic pressure controller. This packaged unit is intended for residential applications requiring suction lift with higher flow and head capability than the XBGR75 series and automated pump control.
The AISI 304 stainless steel pump body delivers a maximum head of 40 metres and a maximum flow rate of 65 litres per minute. The 0.75 kW motor operates on 220–240 V single-phase. Suction is Rp 32 mm and discharge is Rp 25 mm. The pump handles clean liquids from -10°C to +40°C.
The self-priming design allows the pump to draw water from sources below pump level, subject to the limits specified in the technical documentation. The MP PLUS controller provides automatic pump start-stop based on system pressure. The motor enclosure is IP55 with Class F insulation, and automatic reset thermal overload protection is included.
Electrical connections are made through a pre-wired terminal junction box. The unit is intended for residential self-priming applications requiring reliable operation. Installation requires a level, frost-protected surface with adequate ventilation.
FEATURES
- Self-priming design enables operation with suction lift from below pump level.
- MP PLUS electronic pressure controller provides automatic pump start-stop operation.
- 0.75 kW motor provides higher head and flow capability.
- Rp 32 mm suction and Rp 25 mm discharge connections for standard plumbing integration.
- IP55 motor enclosure protects against dust and moisture ingress.
- AISI 304 stainless steel construction for corrosion resistance.
- Automatic reset thermal protection safeguards the motor during operation.
SPECIFICATIONS
| Max Flow | 65 L/Min |
| Max Head | 40 m |
| Power | 0.75 kW / 240v |
| Suitable For | Water Supply / Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | +5°C to +35°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How should this centrifugal jet pump be installed for domestic water supply?
The XBGR100_APC should be positioned near the water supply and sheltered from weather.
What motor output power is specified?
The XBGR100 APC has a P2 motor output rating of 0.75 kW and a P1 input power rating of 1.04 kW.
What is its maximum operating pressure?
The maximum operating pressure specified for the XBGR100-APC is 6 bar.
Which liquids are unsuitable for pumping?
The pump is designed for clean, non-aggressive water and is not suitable for flammable or dangerous liquids.
What water temperature limits apply during operation?
The specified liquid temperature of the XBGR100/APC range is +5°C to +35°C.
