SKU: XBGR50APC
Goulds XBGR50-APC Stainless Steel Built-In Ejector Jet Pump for Pressure Boosting with Electric Controller
Australia-Wide
(08) 9240 2992
Official Goulds
Peace of Mind
Product Overview

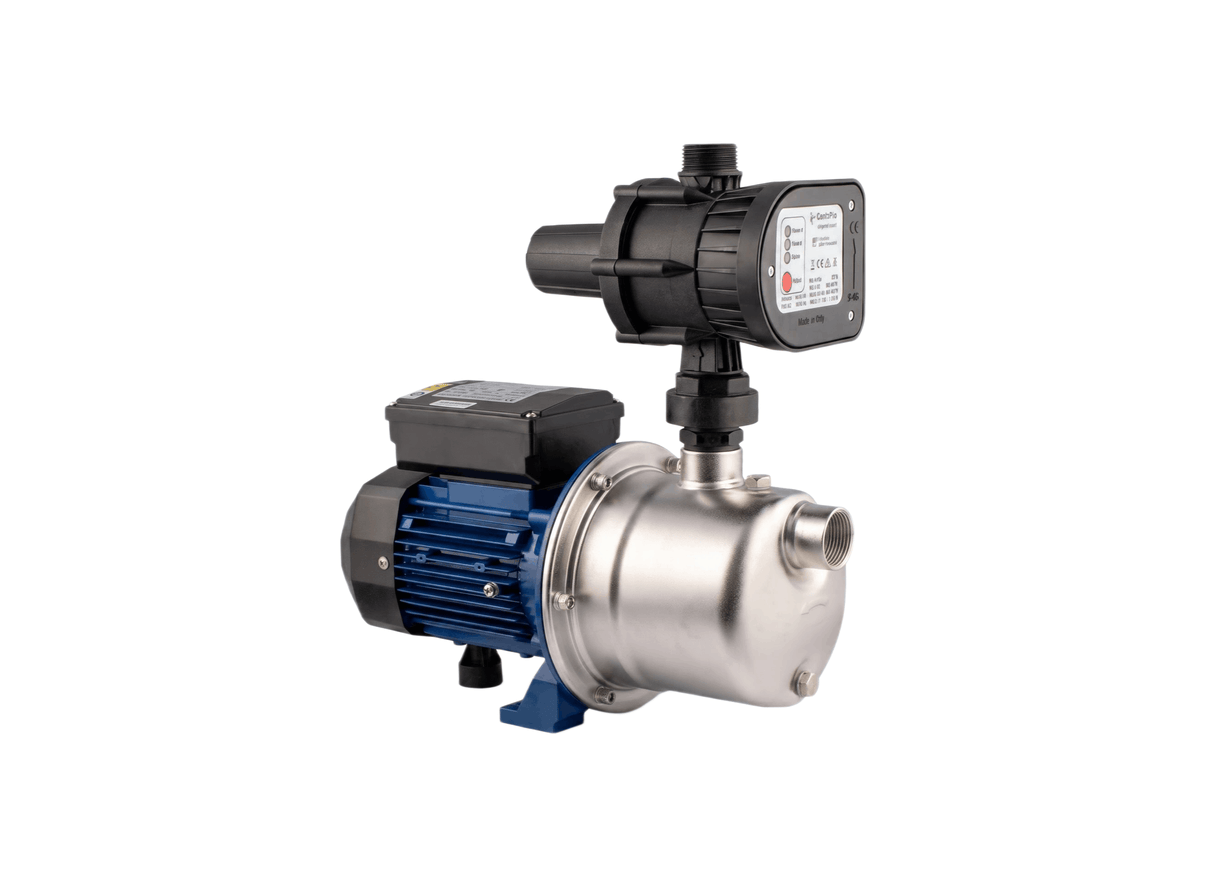

The Goulds XBGR50APC is a self-priming pressure system combining a centrifugal jet pump with an MP PLUS electronic pressure controller. This packaged unit is intended for residential applications where the pump needs to draw water from a source below pump level with automated control in a compact form factor.
The AISI 304 stainless steel pump body delivers a maximum head of 34 metres and a maximum flow rate of 50 litres per minute. The 0.37 kW motor operates on 220–240 V single-phase. Suction is Rp 32 mm and discharge is Rp 25 mm. The pump handles clean liquids from -10°C to +40°C.
The self-priming design allows the pump to draw water from sources below pump level, subject to the limits specified in the technical documentation. The MP PLUS controller provides automatic pump start-stop based on system pressure. The motor enclosure is IP55 with Class F insulation, and automatic reset thermal overload protection is included.
Electrical connections are made through a pre-wired terminal junction box. The unit is intended for residential self-priming applications where reliable operation is required. Installation requires a level, frost-protected surface with adequate ventilation.
FEATURES
- Self-priming design enables operation with suction lift from below pump level.
- MP PLUS electronic pressure controller provides automatic pump start-stop operation.
- Rp 32 mm suction and Rp 25 mm discharge connections for standard plumbing integration.
- IP55 motor enclosure protects against dust and moisture ingress.
- AISI 304 stainless steel construction for corrosion resistance.
- Automatic reset thermal protection safeguards the motor during operation.
- Controller-based design eliminates the need for a separate pressure vessel.
SPECIFICATIONS
| Max Flow | 50 L/Min |
| Max Head | 34 m |
| Power | 0.37 kW / 240v |
| Suitable For | Water Supply / Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | +5°C to +35°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What type of water can this centrifugal jet pump handle?
The XBGR50 APC is designed for clean, non-aggressive water and is suitable for domestic water supply, garden use and irrigation.
What are its P1 and P2 motor power ratings?
The motor of XBGR50-APC is rated at 0.55 kW P1 input power and 0.37 kW P2 output power.
What is the maximum inlet water pressure permitted for this model?
The maximum inlet water pressure specified for the XBGR50 is 2.6 bar.
What is the maximum operating pressure?
The maximum operating pressure specified for the XBGR50_APC is 6 bar.
Is permanent installation required for this pump?
Yes. The installation manual specifies permanent installation on a stable foundation and advises against detachable hose sets.
