SKU: XBGR50PC-AS

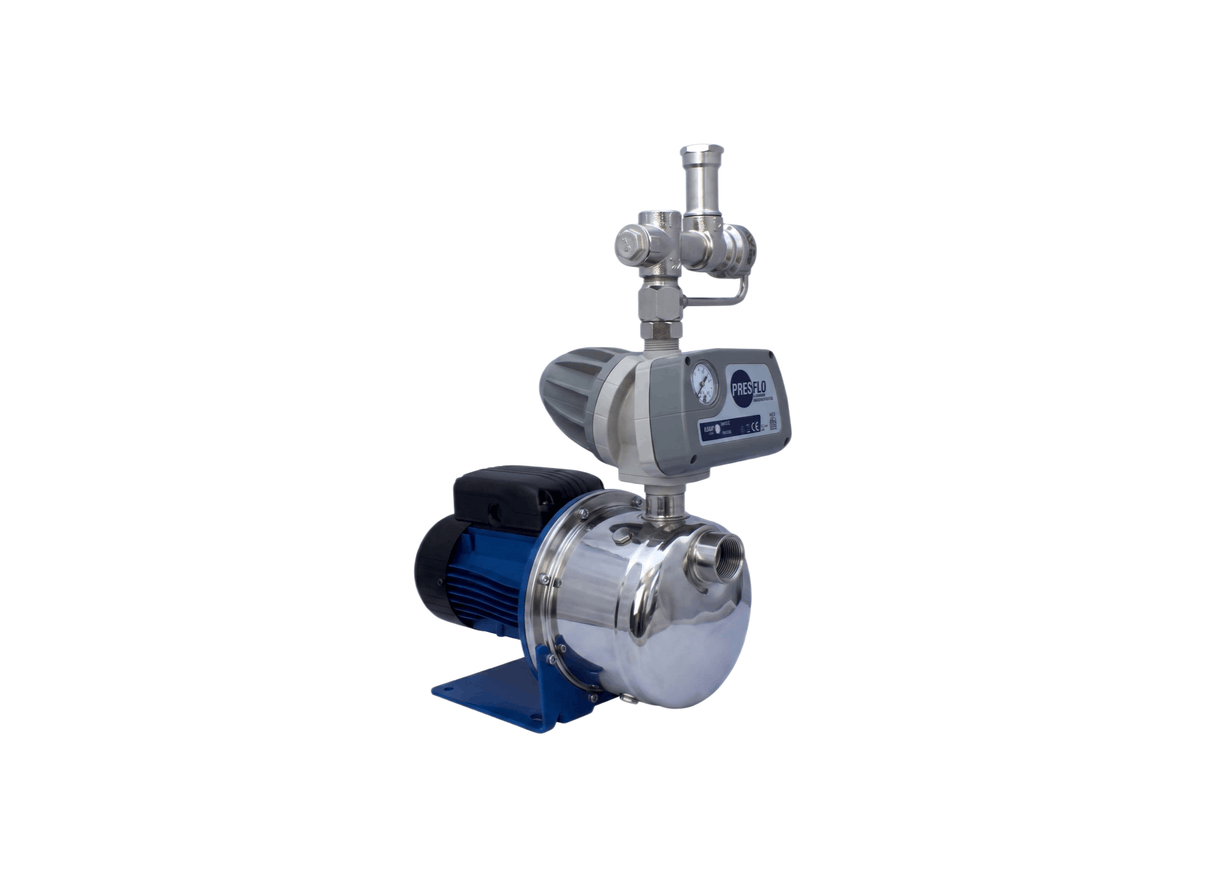

Goulds XBGR50-PC-AS Stainless Steel Built-In Ejector Jet Pump for Water Supply with Aquasaver Valve
Australia-Wide
(08) 9240 2992
Official Goulds
Peace of Mind
Product Overview
Specifically configured for rainwater harvesting, the Goulds XBGR50PC-AS combines a self-priming centrifugal jet pump with an Aquasaver rainwater-to-mains diversion valve. This complete system automatically switches between rainwater storage and mains water supply depending on tank level, eliminating the need for additional control equipment.
The AISI 304 stainless steel pump body delivers a maximum head of 34 metres and a maximum flow rate of 50 litres per minute. The 0.37 kW motor operates on 220–240 V single-phase. Suction is Rp 32 mm and discharge is Rp 25 mm. The pump handles clean liquids from -10°C to +40°C.
The Aquasaver valve provides automatic switching between rainwater and mains supply based on tank level. The self-priming design allows the pump to draw water from rainwater tanks below pump level, subject to the limits specified in the technical documentation. The motor enclosure is IP55 with Class F insulation, and automatic reset thermal overload protection is included.
The unit is supplied with a pre-wired terminal junction box. This system is intended for residential rainwater harvesting where automatic mains backup is required. Installation requires a level, frost-protected surface with adequate ventilation.
FEATURES
- Aquasaver valve automatically switches between rainwater and mains supply.
- Self-priming design enables operation with suction lift from rainwater tanks.
- Rp 32 mm suction and Rp 25 mm discharge connections for standard plumbing integration.
- IP55 motor enclosure protects against dust and moisture ingress.
- AISI 304 stainless steel construction for corrosion resistance.
- Automatic reset thermal protection safeguards the motor during operation.
- Complete system requires no additional control equipment.
SPECIFICATIONS
| Max Flow | 50 L/Min |
| Max Head | 34 m |
| Power | 0.37 kW / 240v |
| Suitable For | Water Supply / Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does this pump system support domestic rainwater harvesting?
A rainwater-to-mains diversion system combines with the XBGR50PC-AS self-priming centrifugal jet pump for domestic rainwater harvesting.
What is the maximum total head available for water supply?
The XBGR50PC AS has a maximum total head of 34 m , depending on operating conditions.
Can it draw water from a rainwater tank below the pump?
Yes. Its built-in ejector system provides suction-lift capability, with a specified maximum suction lift of 8.5 m.
Which water types are suitable for domestic pumping?
The pump is designed for clean, non-aggressive water and is AS4020 certified as suitable for drinking water applications.
What liquid temperature range can the pump handle?
The specified liquid temperature range is +5°C to +35°C.
