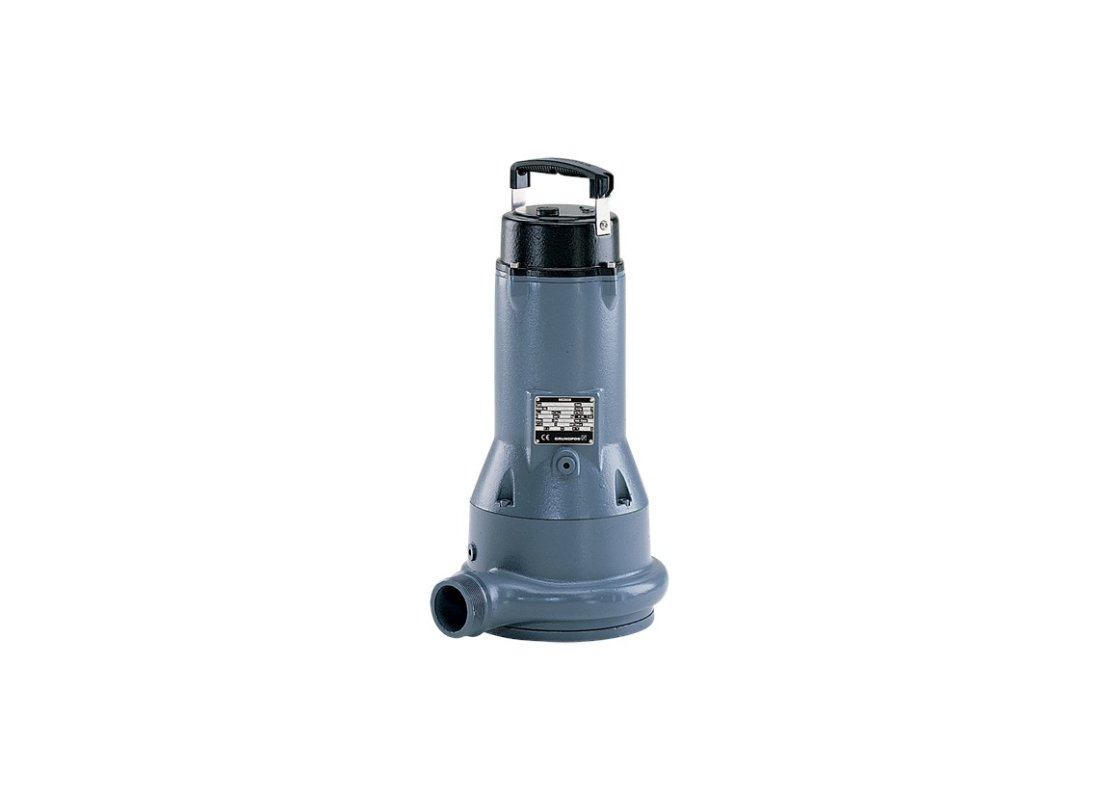

Grundfos APG.50.65.3 Cast Iron 6.5 kW Submersible Wastewater Pump for Pressurised Systems with Cutter Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Facilities managing wastewater transfer in pressurised systems require specific hydraulic configurations for sewage discharge without external cooling jackets. This Grundfos APG.50.65.3 model is designed for pumping wastewater and sewage in pressurised systems. It is suitable for submerged installation on an auto-coupling system or with a ring stand for free-standing use. The unit has a 3-phase motor.
Constructed from Cast Iron EN-JL1040, the housing surrounds internal components. The CUTTER SYSTEM impeller, manufactured from Cast Iron EN-JL1040, processes solids within the fluid stream. The unit weighs 104 kg and operates in liquids up to 40 °C. Casing follows ASTM 35 B standards. The design employs a vertical configuration to minimize the footprint in wet pits.
The 6.5 kW motor operates on a 415v supply with a rated current of 13.4 Amps. The pump achieves a maximum head of 52 meters and a maximum flow of 526 L/Min through a 50 mm discharge outlet. Power input P1 is 7.5 kW with a rated output power P2 of 6.5 kW. The electrical configuration requires a 3-phase 50 Hz source with a power factor of 0.81.
Thermal protection is provided by Class F insulation with an IP68 enclosure rating. The pump supports installation depths up to 10 meters. Double mechanical shaft seals provide containment with an oil chamber pre-filled with non-toxic special oil. Integrated greased-for-life ball bearings support the shaft.
Features
- Fitted with a carrying handle for site positioning and retrieval
- Supplied with a 10 meter power cable
- Equipped with thermal switch motor protection (PTO)
- Integrated moisture sensor for internal leak detection
- Double shaft seal with intermediate oil chamber for containment
- Rated speed of 2900 rpm for consistent cutting performance
- Features a P1 power input rating of 7.5 kW
SPECIFICATIONS
| Max Flow | 526 L/Min |
| Max Head | 52 m |
| Power | 6.5 kW / 415v |
| Rated Current | 13.4 Amps |
| Suitable For | Pressurised Systems |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water volume can this pump displace through its outlet?
Peak fluid displacement on the Grundfos APG.50.65.3 delivers up to 526 L/Min through a DN 50 connection under rated operating conditions.
How is the pump casing constructed to resist mechanical and fluid wear?
High-grade Cast Iron components in the APG.50.65.3 protect internal passages against corrosive fluid contact.
What kind of power supply does this pump require to run?
It operates on 415 V power, with the APG-50-65-3 utilizing a durable 6.5 kW motor rated at 13.4 Amps.
What is the maximum vertical lift capacity of this pump?
To overcome vertical elevation resistance, the APG 50 65 3 develops a maximum pumping head of approximately 10 m.
What maximum vertical water column can this pump maintain?
Pumping performance for the APG/50/65/3 provides up to 52 m of vertical dynamic lift, depending on system friction and line sizing.
