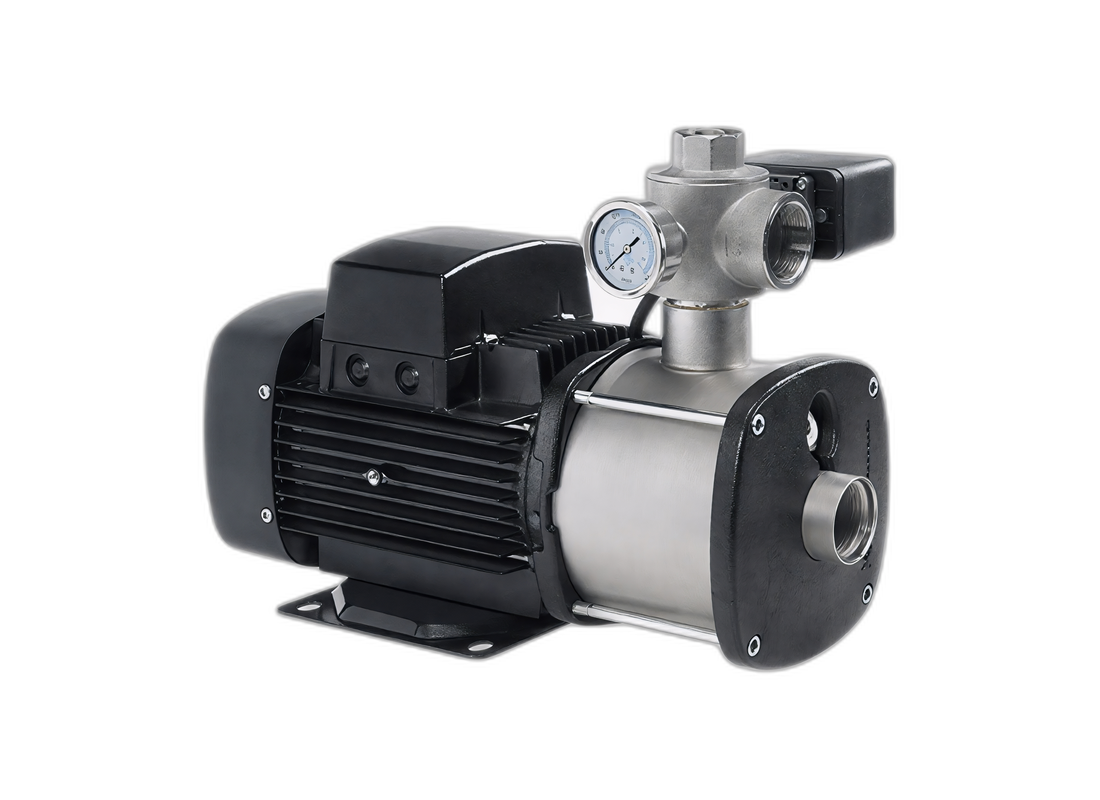

Grundfos CMB 10-47 Stainless Steel Automatic Pressure Pump for High Volume Transfer with Pressure Switch
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos CMB 10-47 (PS) is an automatic pressure pump system designed for high volume water transfer, agricultural supply, and light commercial applications where minor leakage conditions may occur. The system consists of a Grundfos CM pump, a five-way valve, and a pressure switch, enabling automatic operation based on system pressure.
This system requires a pressure tank to be installed to complete the booster setup and ensure stable pressure performance. Once connected to the pipeline and power supply, the unit operates automatically based on demand.
The pump is constructed with a stainless steel pump housing and multistage stainless steel impellers (AISI 304), delivering excellent corrosion resistance and long service life. The integrated non-return valve maintains system pressure stability and prevents backflow.
The pump operates at a rated flow of 10 m³/h with a corresponding head of 38 metres. According to the performance data, the unit achieves a maximum head of 46.6 metres at shut-off and delivers a maximum flow of approximately 250 L/min under low head conditions. The system is not self-priming and supports a maximum suction lift of 1 metre.
The unit is powered by a 1.9 kW electric motor operating on a 1 x 240 V, 50 Hz supply. The pressure switch provides adjustable control within a range of 3 to 12 bar, allowing flexible pressure management depending on system requirements.
FEATURES- Automatic Operation: Pressure switch enables demand-based start and stop
- Adjustable Pressure Control Range: 3–12 bar for flexible system setup
- System Requirement: Requires external pressure tank for proper operation
- Complete Booster Assembly: Includes pump, five-way valve, and pressure switch
- Leakage-Compatible Design: Suitable for systems with minor continuous leakage
- High Capacity Multistage Design for efficient water transfer applications
- Corrosion-Resistant Stainless Steel Construction for long service life
- Integrated Non-Return Valve to maintain system pressure stability
- Compact Installation Layout for easy integration
- Low Maintenance Mechanical Control System
SPECIFICATIONS
| Max Flow | 250 L/Min |
| Max Head | 47 m |
| Power | 1.9 kW / 240v |
| Rated Current | 10.2 Amps |
| Suitable For | High Volume Transfer |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 40 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What fluid throughput and pressure head are developed by this pump?
Output across system pipework enables the Grundfos CMB 10-47 to deliver up to 250 L/Min in flow and a maximum head of 47 m, depending on your pipe layout.
What are the power requirements and running amperage for this pump?
Under full load conditions, the motor in the CMB 10-47 delivers 1.9 kW on a 240v line drawing 10.2 Amps.
Is the pump body built to withstand harsh and corrosive liquids?
Built with a resilient Stainless Steel body, the CMB-10-47 maintains material durability against fluid abrasion and wear.
Which pumping tasks and system installations are ideal for this unit?
Routine operational tasks matching the CMB 10 47 encompass domestic water boosting from rainwater storage tanks and municipal mains supply lines across connected networks.
What manufacturer warranty coverage is included with this pump?
Grundfos backs the CMB/10/47 with an official 2 Years warranty, offering reliable coverage and factory technical support.
