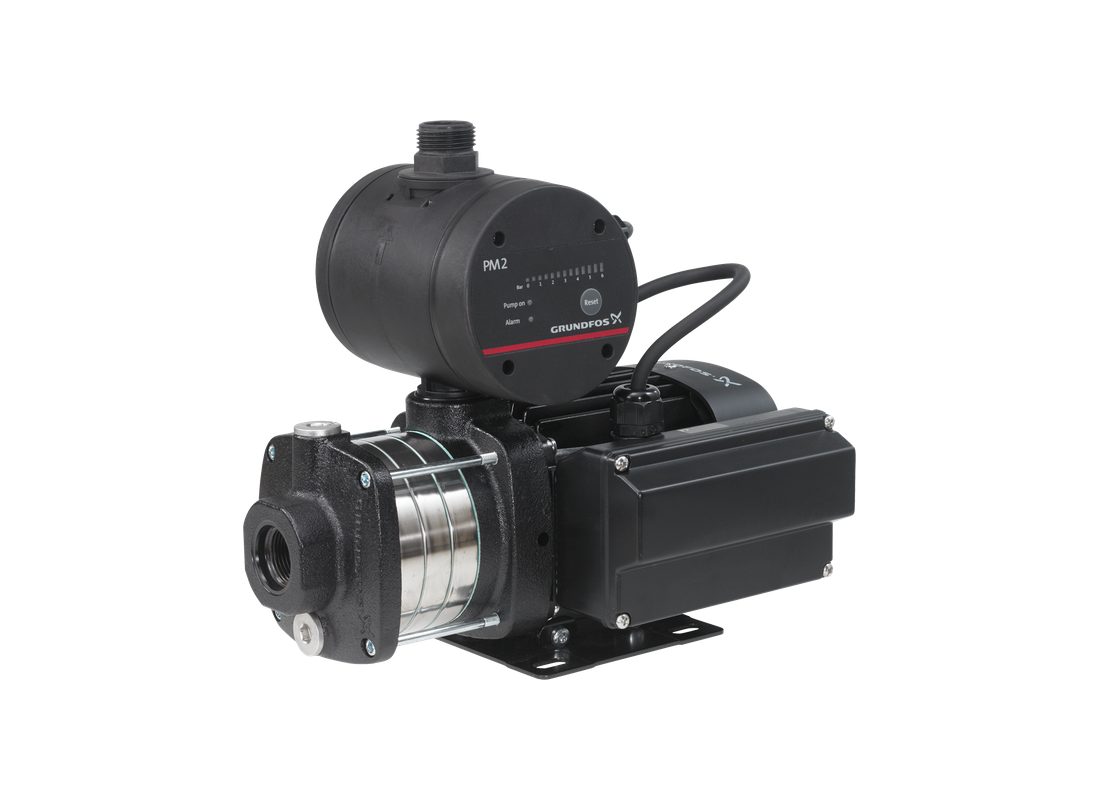

Grundfos CMB 3-37 Cast Iron Pressure Boosting Pump for Domestic Use with PM1 Controller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos CMB 3-37 is a compact pressure boosting pump designed for domestic water supply and light commercial applications. It is supplied as a complete booster unit with an integrated PM1 pressure manager, allowing automatic start and stop operation based on demand while protecting the pump against dry running.
The pump features a cast iron pump housing combined with multistage stainless steel impellers (AISI 304), providing strength, corrosion resistance, and reliable long-term performance. The unit also includes an integrated non-return valve to ensure stable operation within pressurised systems.
The pump operates at a rated flow of 3.1 m³/h with a corresponding head of 27.7 metres. Based on the performance curve, it delivers a maximum flow of approximately 70 L/min at low head conditions and achieves a maximum head of approximately 37 metres at shut-off. The unit is not self-priming and supports a maximum suction lift of 1 metre.
The unit is powered by a 0.5 kW electric motor operating on a 1 x 240 V, 50 Hz supply. The integrated PM1 controller operates with a fixed start pressure of 1.5 bar, ensuring consistent and automatic pressure boosting performance.
FEATURES
- Controller: Integrated PM1 pressure manager with automatic start/stop and dry-run protection
- Maximum Flow: approx. 70 L/min
- Maximum Head: approx. 37 m
- Construction: Cast iron pump housing with stainless steel impellers (AISI 304)
- Impellers: Multistage design (4-stage)
- Return Valve: Integrated for stable system operation
- Suction Capability: Maximum 1 m (non self-priming)
- Maximum Operating Pressure: 10 bar
- Enclosure Class: IP55
SPECIFICATIONS
| Max Flow | 70 L/Min |
| Max Head | 37 m |
| Power | 0.5 kW / 240v |
| Rated Current | 3.3 Amps |
| Suitable For | Domestic Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water flow rate and head pressure of this pump?
Rated for dependable performance, the Grundfos CMB 3-37 provides up to 70 L/Min in flow and up to 37 m in head, depending on operating conditions.
What electrical voltage and motor kilowatt output drive this unit?
Electrical power for the CMB 3-37 requires a 240v connection, driving an efficient 0.5 kW motor that draws 3.3 Amps.
What materials make this pump durable against corrosion and wear?
Structural defense on the CMB-3-37 is provided by a rugged Cast Iron casing designed to withstand heavy mechanical stress.
What primary fluid transfer and circulation roles are designated for this pump?
Water management applications designate the CMB 3 37 for Drive power in provides steady fluid movement during domestic water boosting from rainwater storage tanks and municipal mains supply lines, supporting consistent property operation.
What warranty coverage applies to this pump for long-term peace of mind?
Backed by Grundfos engineering, the CMB/3/37 carries an official 2 Years warranty with genuine manufacturer support.
