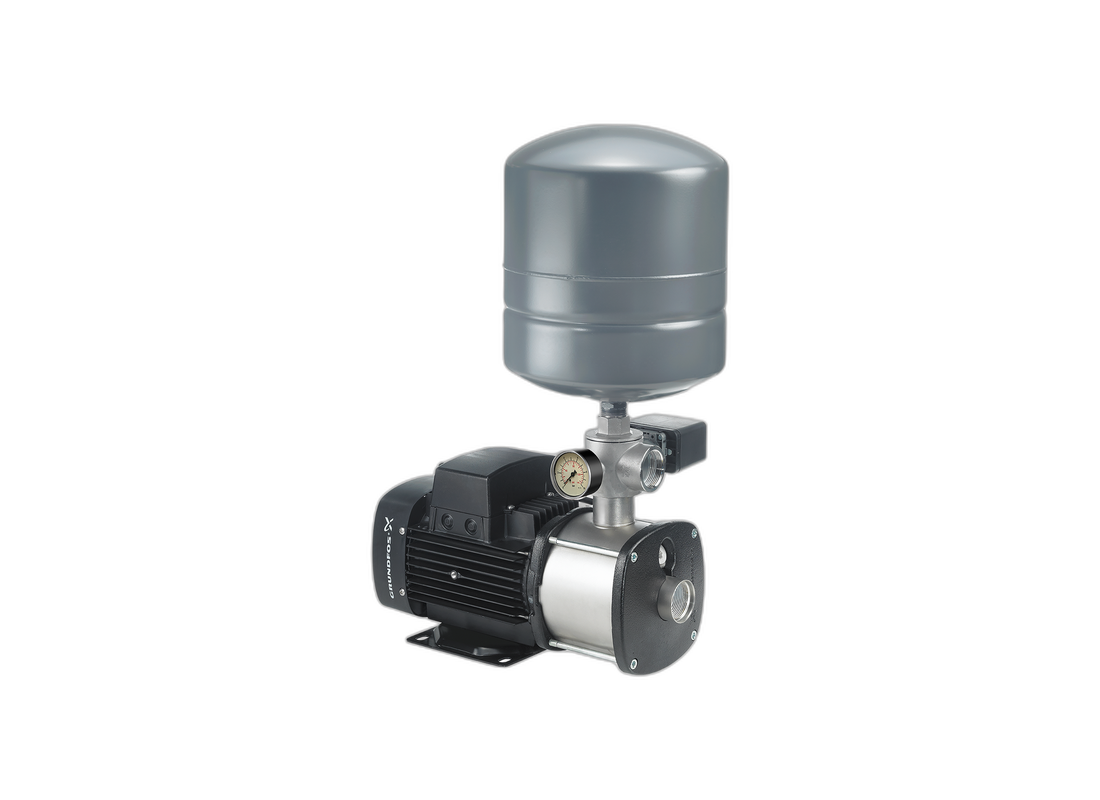

Grundfos CMB 5-75 Stainless Steel Automatic Pressure Pump for Water Distribution with Pressure Switch
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos CMB 5-75 (PS) is an automatic pressure pump system designed for water distribution, agricultural supply, and light commercial applications where minor leakage conditions may occur. The system consists of a Grundfos CM pump, a five-way valve, and a pressure switch, enabling automatic operation based on system pressure.
This system requires a pressure tank to be installed in order to operate correctly and maintain stable pressure performance. Once connected to the pipeline and power supply, the unit provides automatic water pressure control based on demand.
The pump is constructed with a stainless steel pump housing and multistage stainless steel impellers (AISI 304), delivering excellent corrosion resistance and long service life. The integrated non-return valve ensures stable system operation and prevents backflow.
The pump operates at a rated flow of 4.7 m³/h with a corresponding head of 62.4 metres. According to the performance data, the unit achieves a maximum head of 74.6 metres at shut-off and delivers a maximum flow of approximately 100 L/min under low head conditions. The system is not self-priming and supports a maximum suction lift of 1 metre.
The unit is powered by a 1.7 kW electric motor operating on a 1 x 240 V, 50 Hz supply. The pressure switch provides adjustable control within a range of 3 to 12 bar, allowing flexible pressure management depending on system requirements.
FEATURES- Automatic Operation: Pressure switch enables demand-based start and stop
- Wide Pressure Control Range: Adjustable between 3–12 bar
- System Requirement: Requires external pressure tank for proper operation
- Complete Assembly: Includes pump, five-way valve, and pressure switch
- Leakage-Compatible Design: Suitable for systems with minor continuous leakage
- High Head Multistage Design for long-distance and elevated water delivery
- Corrosion-Resistant Stainless Steel Construction for durability
- Integrated Non-Return Valve to maintain system pressure
- Compact Layout for simplified installation
- Low Maintenance Mechanical Control System
SPECIFICATIONS
| Max Flow | 100 L/Min |
| Max Head | 75 m |
| Power | 1.7 kW / 240v |
| Rated Current | 10.2 Amps |
| Suitable For | Water Distribution |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak flow capacity and vertical elevation does this pump produce?
You get up to 100 L/Min in flow and a maximum head of 75 m from the Grundfos CMB 5-75, depending on operating conditions.
What voltage supply and motor power does this pump need?
Powered by a dedicated 1.7 kW motor, the CMB 5-75 connects to 240v mains power with a rated current draw of 10.2 Amps.
What metallurgy is selected for the pump body to resist abrasive wear?
Manufactured with quality materials, the CMB-5-75 incorporates Stainless Steel for dependable longevity and resistance to fluid erosion.
Where is this pump typically deployed across residential and rural systems?
Suited for diverse installations, the CMB 5 75 performs domestic water boosting from rainwater storage tanks and municipal mains supply lines with dependable fluid propulsion.
What warranty protection and factory support cover this pump?
Factory coverage on the CMB/5/75 provides an authentic 2 Years warranty for dependable long-term reliability.
