SKU: 98117634

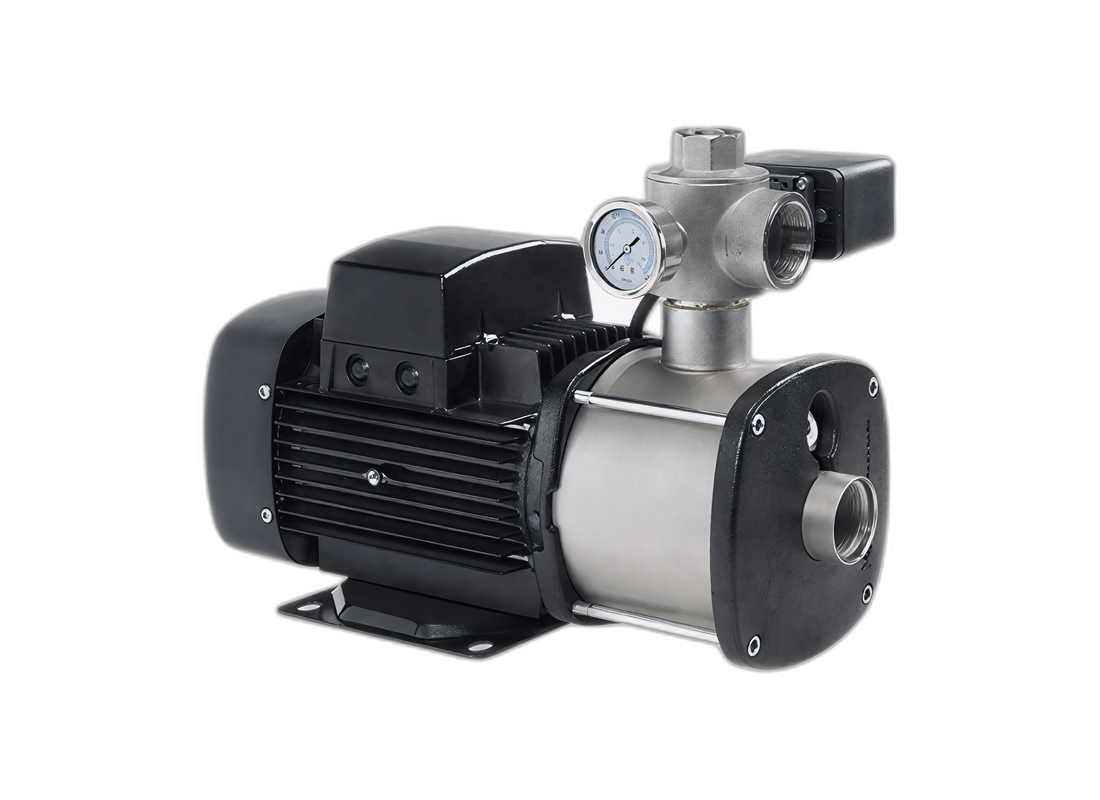

Grundfos CMB 5-93 Stainless Steel Automatic Pressure Pump for Rural Supply with Pressure Switch
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos CMB 5-93 (PS) is an automatic pressure pump system designed for rural water supply, agricultural applications, and light commercial installations where minor leakage conditions may occur. The system consists of a Grundfos CM pump, a five-way valve, and a pressure switch, enabling automatic operation based on system pressure.
This system requires a pressure tank to be installed to complete the booster setup and maintain stable pressure performance. Once connected to the pipeline and power supply, the unit operates automatically based on pressure demand.
The pump is constructed with a stainless steel pump housing and multistage stainless steel impellers (AISI 304), ensuring corrosion resistance and long service life. The integrated non-return valve supports stable operation and prevents backflow within the system.
The pump operates at a rated flow of 4.7 m³/h with a corresponding head of 78.2 metres. As shown in the performance data and curve, the unit achieves a maximum head of 93.3 metres at shut-off and delivers a maximum flow of approximately 100 L/min under low head conditions. The system is not self-priming and supports a maximum suction lift of 1 metre.
The unit is powered by a 1.9 kW electric motor operating on a 1 x 240 V, 50 Hz supply. The pressure switch provides adjustable control within a range of 3 to 12 bar, allowing flexible pressure management depending on system requirements.
FEATURES- Automatic Operation: Pressure switch enables demand-based start and stop
- Wide Pressure Control Range: Adjustable between 3–12 bar
- System Requirement: Requires external pressure tank for proper operation
- Complete Assembly: Includes pump, five-way valve, and pressure switch
- Leakage-Compatible Design: Suitable for installations with minor continuous leakage
- High Head Multistage Design for long-distance and elevated water delivery
- Corrosion-Resistant Stainless Steel Construction for durability
- Integrated Non-Return Valve to maintain system pressure stability
- Compact Layout for simplified installation
- Low Maintenance Mechanical Control System
SPECIFICATIONS
| Max Flow | 100 L/Min |
| Max Head | 93 m |
| Power | 1.9 kW / 240v |
| Rated Current | 12.2 Amps |
| Suitable For | Rural Supply |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water volume and dynamic lift does this pump generate?
Rated for dependable performance, the Grundfos CMB 5-93 provides up to 100 L/Min in flow and up to 93 m in head, depending on operating conditions.
What kind of power supply does this pump require to run?
Electrical power for the CMB 5-93 requires a 240v connection, driving an efficient 1.9 kW motor that draws 12.2 Amps.
What materials protect the wetted parts against aggressive chemical attack?
Structural defense on the CMB-5-93 is provided by a rugged Stainless Steel casing designed to withstand heavy mechanical stress.
What everyday water supply duties are best performed by this pump?
Water management applications designate the CMB 5 93 for Manufactured to support property plumbing, serves domestic water boosting from rainwater storage tanks and municipal mains supply lines, supporting consistent property operation.
How long is the official factory warranty for this pump?
Backed by Grundfos engineering, the CMB/5/93 carries an official 2 Years warranty with genuine manufacturer support.
