SKU: 98507635

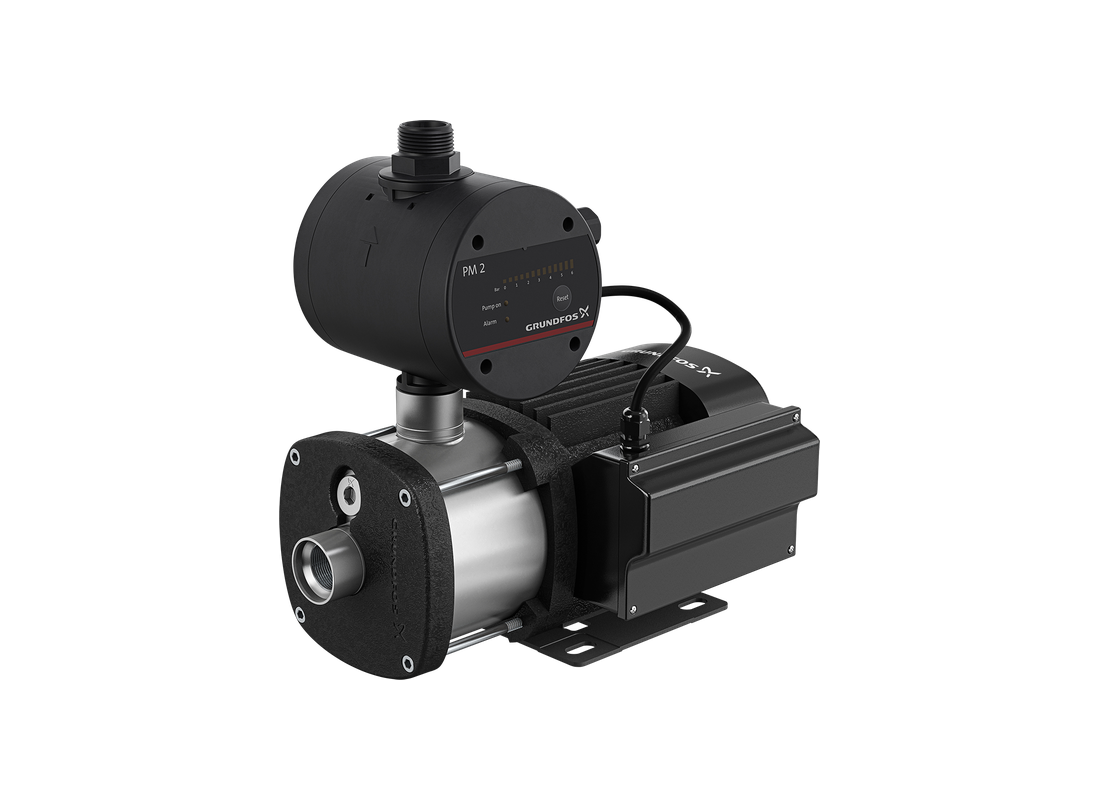

Grundfos CMB-SP 5-28 Stainless Steel Self-Priming Pressure Boosting Irrigation Pump Multistage Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos CMB-SP 5-28 is a self-priming pressure boosting pump designed for irrigation systems, water transfer, and light-duty pressure boosting applications. It is supplied as a complete booster unit with an integrated PM2 pressure manager, enabling automatic start and stop operation based on demand while providing dry-run protection and automatic restart.
Constructed with a stainless steel pump housing and multistage stainless steel impellers (AISI 304), the pump ensures reliable performance, corrosion resistance, and long service life. The compact booster configuration allows easy installation and consistent operation across various water systems.
The pump operates at a rated flow of 4.7 m³/h with a corresponding head of 22.1 metres. Based on the performance curve, the unit delivers a maximum flow of approximately 100 L/min at low head conditions and achieves a maximum head of approximately 28 metres at shut-off. It supports a self-priming suction lift of up to 4 metres.
The unit is powered by a 0.5 kW electric motor operating on a 1 x 240 V, 50 Hz supply. The integrated PM2 controller ensures automatic pressure control and efficient operation without external intervention.
FEATURES- Motor: 0.5 kW Electric Motor, 1 x 240 V, 50 Hz
- Maximum Flow: approx. 100 L/min
- Maximum Head: approx. 28 m
- Rated Flow: 4.7 m³/h
- Rated Head: 22.1 m
- Pump Type: Self-priming pressure boosting pump
- Controller: Integrated PM2 pressure manager with dry-run protection
- Construction: Stainless steel pump housing with multistage stainless steel impellers (AISI 304)
- Impellers: Multistage design (3-stage)
- Mechanical Seal: AVBE shaft seal
- Self-Priming Capability: Up to 4 m suction lift
- Return Valve: Integrated
- Maximum Operating Pressure: 10 bar
- Maximum Ambient Temperature: Maximum 50°C
- Pump Liquid Temperature: Maximum 40°C
- Inlet Size: 25 mm
- Outlet Size: 25 mm
- Enclosure Class: IP55
SPECIFICATIONS
| Max Flow | 100 L/Min |
| Max Head | 28 m |
| Power | 0.5 kW / 240v |
| Rated Current | 3.3 Amps |
| Suitable For | Irrigation Supply |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak flow capacity and vertical elevation does this pump produce?
Depending on operating conditions, the Grundfos CMB-SP 5-28 delivers a maximum flow rate of 100 L/Min and a maximum head of 28 m.
What are the power requirements and running amperage for this pump?
Connecting across 240v lines, the CMB-SP 5-28 draws approximately 3.3 Amps with an efficient 0.5 kW motor.
What metallurgy is selected for the pump body to resist abrasive wear?
Durable Stainless Steel construction gives the CMB-SP-5-28 exceptional structural strength and long-term protection against corrosive fluids.
Where is this pump typically deployed across residential and rural systems?
System installations deploy the CMB SP 5 28 for self-priming suction lift from subterranean rainwater cisterns and underground holding pits, maintaining steady circulation and reliable line pressure.
What warranty protection and factory support cover this pump?
Purchase of the CMB/SP/5/28 includes an official 2 Years warranty from Grundfos, covering parts and manufacturing quality.
