SKU: 98374705

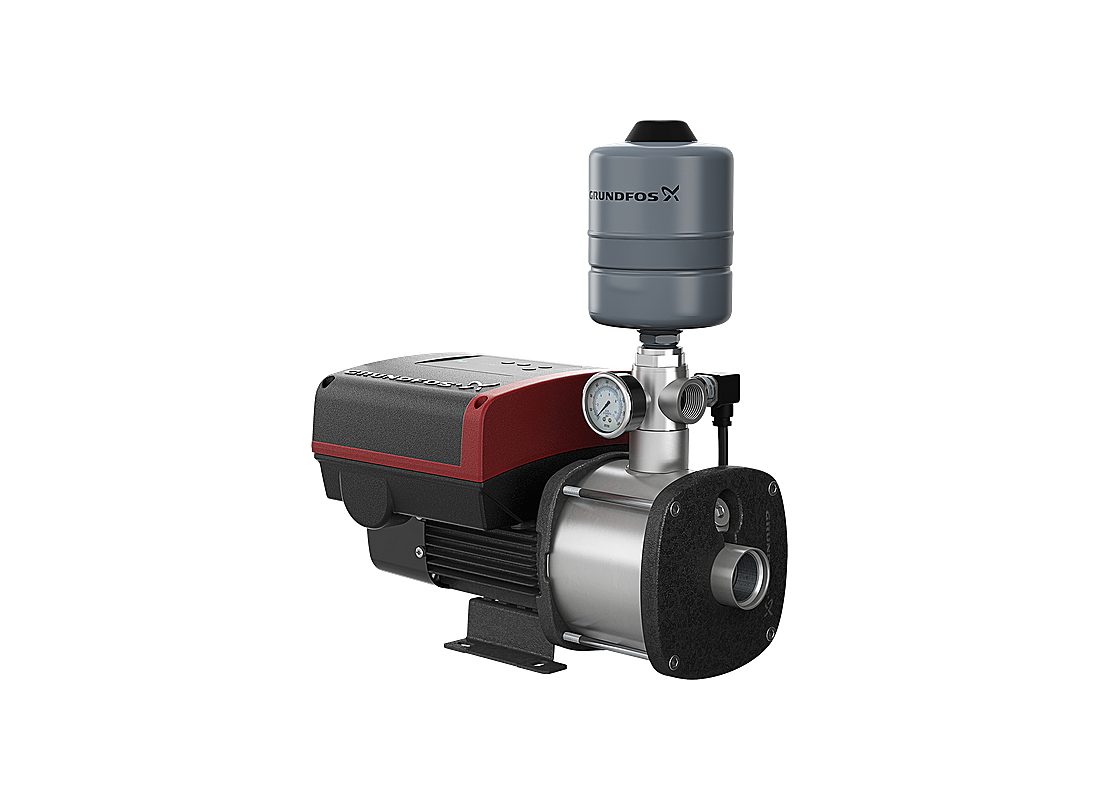

Grundfos CMBE 1-44 Stainless Steel Variable Speed Pressure Boosting Pump with Frequency Converter
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos CMBE 1-44 is a compact pressure boosting pump designed for domestic and light commercial applications including pressure boosting, irrigation, and system pressurisation. It maintains consistent pressure through its integrated frequency converter, automatically adjusting motor speed based on water demand.
The pump is constructed with a stainless steel pump housing and stainless steel impellers (AISI 304), providing excellent corrosion resistance and durability. The system is supplied as a complete booster set including a CME pump, expansion tank, pressure sensor, pressure gauge, and non-return valve, ensuring reliable and efficient operation.
The pump operates at a rated flow of 2.4 m³/h with a corresponding head of 28.7 metres. This duty point represents the optimal operating condition for maintaining stable pressure across domestic systems. It supports a maximum operating pressure of 10 bar for consistent performance.
The unit is powered by an electric motor with integrated frequency converter rated at 0.55 kW (P2), operating on a 1 x 200–240 V, 50 Hz supply. The motor operates across a speed range of 360 to 4000 RPM, providing efficient and adaptive performance without the need for external control systems.
FEATURES- Motor: 0.55 kW Electric Motor with Frequency Converter, 1 x 200–240 V, 50 Hz
- Rated Flow: 2.4 m³/h
- Rated Head: 28.7 m
- Pump Type: Pressure boosting pump
- Construction: Stainless steel pump housing and impellers (AISI 304)
- Impellers: 3-stage stainless steel design
- Mechanical Seal: AVBE shaft seal
- Integrated System: Pump, expansion tank (2 L), pressure sensor, pressure gauge, non-return valve
- Maximum Operating Pressure: 10 bar
- Maximum Ambient Temperature: Maximum 55°C
- Pump Liquid Temperature: Maximum 60°C
- Inlet Size: 25 mm
- Outlet Size: 25 mm
- Enclosure Class: IP55 with built-in motor protection
SPECIFICATIONS
| Max Flow | 93 L/Min |
| Max Head | 28 m |
| Power | 0.55 kW / 240v |
| Rated Current | 3.45 Amps |
| Suitable For | Domestic Supply |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and dynamic pressure can this pump generate?
Rated for dependable performance, the Grundfos CMBE 1-44 provides up to 93 L/Min in flow and up to 28 m in head, depending on operating conditions.
Does this pump run on standard household power or three-phase power?
Electrical power for the CMBE 1-44 requires a 240v connection, driving an efficient 0.55 kW motor that draws 3.45 Amps.
Which casing and impeller materials provide long service life in this pump?
Structural defense on the CMBE-1-44 is provided by a rugged Stainless Steel casing designed to withstand heavy mechanical stress.
What primary water management tasks is this pump best suited for?
Water management applications designate the CMBE 1 44 for variable speed constant pressure boosting for residential homes and garden irrigation, supporting consistent property operation.
What official warranty duration comes with this pump from purchase?
Backed by Grundfos engineering, the CMBE/1/44 carries an official 2 Years warranty with genuine manufacturer support.
