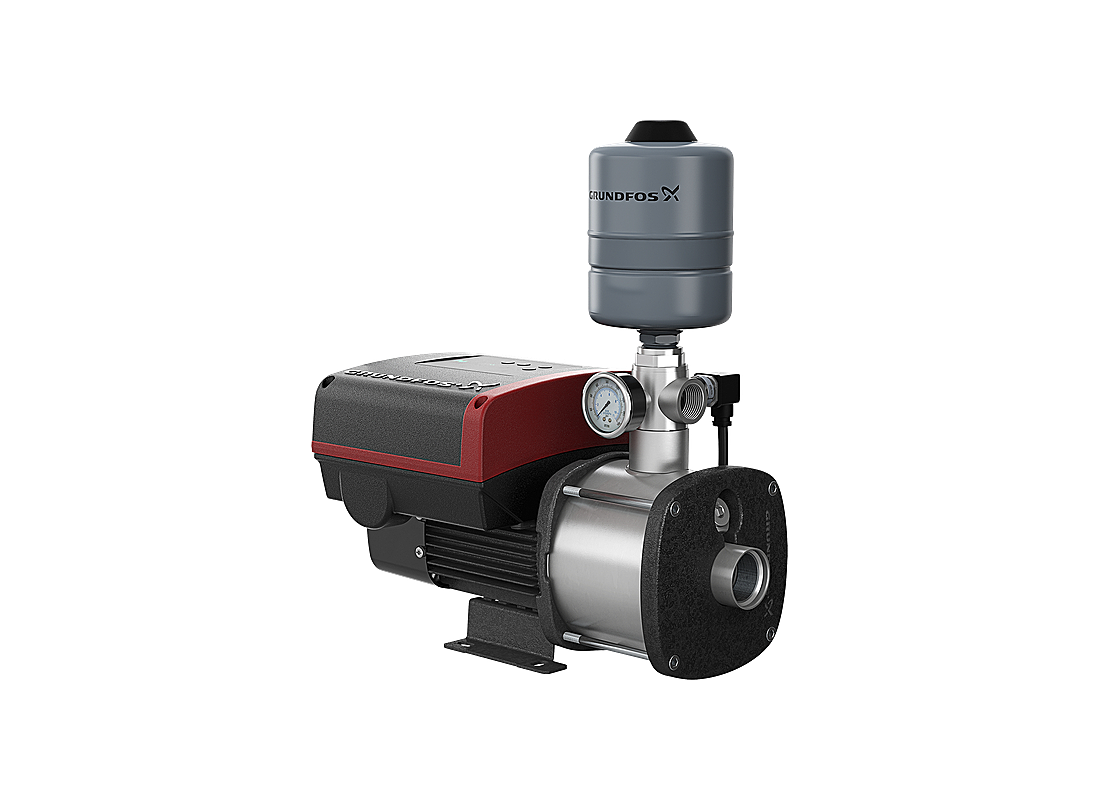

Grundfos CMBE 3-62 Variable Speed Constant Pressure Booster Pump with 2L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos CMBE 3-62 is a high-efficiency variable speed booster system designed to deliver constant water pressure for domestic and light commercial applications. Featuring an integrated frequency converter and pressure sensor, the CMBE automatically adjusts motor speed to match demand, ensuring stable pressure regardless of fluctuating water usage.
This compact all-in-one booster system includes a CME multistage stainless steel pump, integrated speed controller, five-way valve, expansion tank and pressure gauge — pre-assembled for fast installation.
With a maximum head of 62 metres and flow rates up to 92 L/Min, the CMBE 3-62 provides powerful and energy-efficient pressure boosting. The stainless steel pump housing and impellers (AISI 304) ensure durability and corrosion resistance, while the IP55-rated motor offers reliable protection in demanding environments.
Ideal for homes, apartments and light commercial systems where consistent pressure, quiet operation and energy efficiency are essential.
FEATURES
- Variable speed constant pressure technology
- Integrated frequency converter
- Maximum head: 62 metres
- Maximum flow: 92 L/Min
- Stainless steel pump housing and impellers
- IP55 motor protection
- Built-in thermal motor protection
- 2L integrated expansion tank
- Suitable for domestic and light commercial boosting
- 240V single phase operation
SPECIFICATIONS
| Max Flow | 92 L/Min |
| Max Head | 62 m |
| Power | 1.1 kW / 240v |
| Rated Current | 6.7 Amps |
| Suitable For | Domestic & Light Commercial Pressure Boosting |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water volume and dynamic lift does this pump generate?
For balanced pressure and flow, the Grundfos CMBE 3-62 provides up to 92 L/Min in delivery and up to 62 m in vertical lift.
What electrical supply parameters are needed for this pump motor?
It operates on 240v power, with the CMBE 3-62 utilizing a durable 1.1 kW motor rated at 6.7 Amps.
What materials protect the wetted parts against aggressive chemical attack?
Wetted components on the CMBE-3-62 are crafted from high-grade Stainless Steel to maintain physical integrity and resist abrasive wear.
What everyday water supply duties are best performed by this pump?
Everyday water management duties for the CMBE 3 62 focus on variable speed constant pressure boosting for residential homes and garden irrigation, providing reliable pumping performance.
How long is the official factory warranty for this pump?
Official factory backing for the CMBE/3/62 includes an authentic 2 Years warranty for verified quality and peace of mind.
