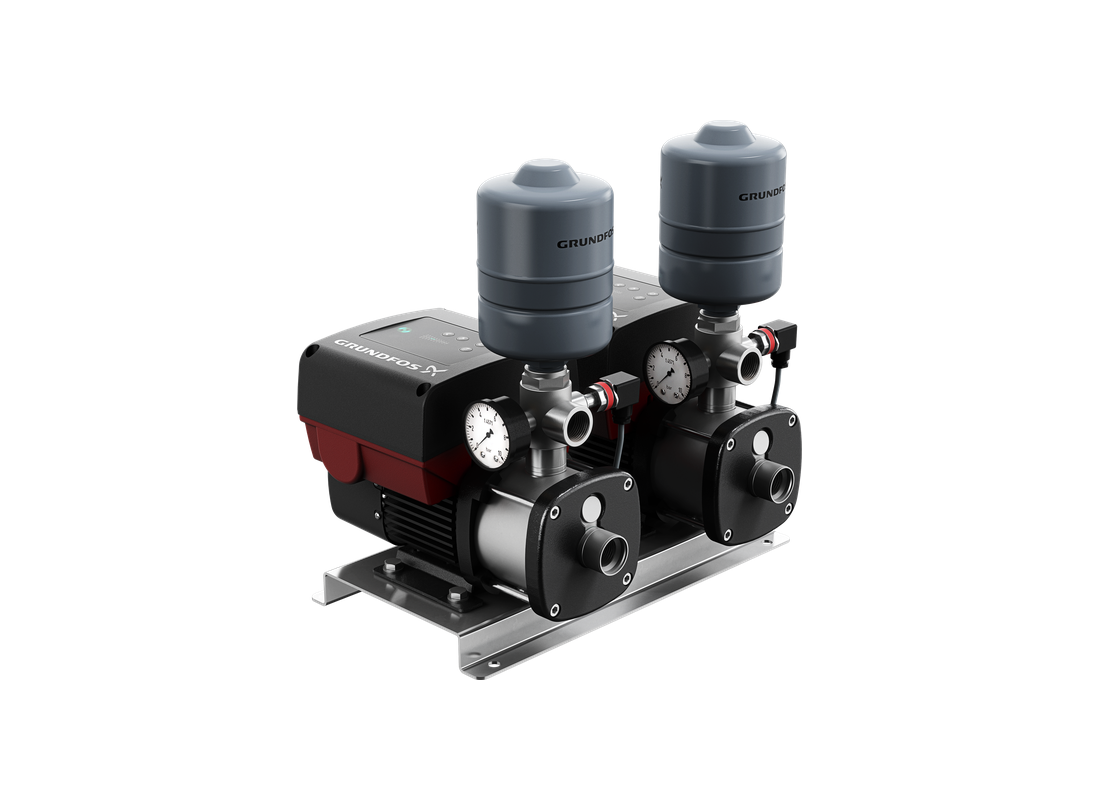

Grundfos CMBE TWIN 3-93 Stainless Steel Twin Pressure Boosting Commercial Pump Multistage Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos CMBE TWIN 3-93 is a variable speed pressure boosting pump system designed for domestic and light commercial applications including pressure boosting, irrigation, and system pressurisation. The twin configuration consists of two pumps operating in parallel, ensuring higher capacity and stable pressure under varying demand conditions.
Constructed with stainless steel pump housing and multistage stainless steel impellers (AISI 304), the system provides excellent corrosion resistance and durability. The booster system includes dual pumps, expansion tanks, pressure sensors, pressure gauges, and a base frame, enabling efficient multi-pump operation with automatic cascade control.
The system operates at a rated flow of 4.2 m³/h with a corresponding head of 66.3 metres. Based on the performance curve, it achieves a maximum head of approximately 100 metres at low flow conditions. The system automatically adjusts performance by switching pumps on or off and varying speed based on demand.
The unit is powered by two electric motors rated at 1.5 kW (P2) each, operating on a 1 x 200–240 V, 50 Hz supply. Integrated speed control ensures efficient operation and consistent pressure delivery.
FEATURES- Motor: 2 x 1.5 kW Electric Motors, 1 x 200–240 V, 50 Hz
- Maximum Head: approx. 100 m
- Rated Flow: 4.2 m³/h
- Rated Head: 66.3 m
- Pump Type: Variable speed pressure boosting pump (twin system)
- Configuration: Dual pump parallel booster system
- Construction: Stainless steel pump housing with multistage stainless steel impellers (AISI 304)
- Impellers: Multistage design (6-stage)
- Mechanical Seal: AVBE shaft seal
- Integrated System: Dual pumps, expansion tanks (4 L total), pressure sensors, gauges, base frame
- Maximum Operating Pressure: 10 bar
- Maximum Ambient Temperature: Maximum 55°C
- Pump Liquid Temperature: Maximum 60°C
- Inlet Size: 25 mm
- Outlet Size: 25 mm
- Enclosure Class: IP55 with built-in motor protection
SPECIFICATIONS
| Max Flow | 174 L/Min |
| Max Head | 100 m |
| Power | 2 x 1.5 kW / 240v |
| Rated Current | 9.1 Amps |
| Suitable For | Commercial Supply |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What fluid throughput and pressure head are developed by this pump?
Depending on operating conditions, the Grundfos CMBE TWIN 3-93 delivers a maximum flow rate of 174 L/Min and a maximum head of 100 m.
What motor power rating and running current power this pump?
Connecting across 240v lines, the CMBE TWIN 3-93 draws approximately 9.1 Amps with an efficient 1.5 kW motor.
Is the pump body built to withstand harsh and corrosive liquids?
Durable Stainless Steel construction gives the CMBE-TWIN-3-93 exceptional structural strength and long-term protection against corrosive fluids.
Which pumping tasks and system installations are ideal for this unit?
System installations deploy the CMBE TWIN 3 93 for Housing hydraulics in are configured to execute twin parallel pressure boosting across apartment complexes and large residential layouts, maintaining steady circulation and reliable line pressure.
What manufacturer warranty coverage is included with this pump?
Purchase of the CMBE/TWIN/3/93 includes an official 2 Years warranty from Grundfos, covering parts and manufacturing quality.
