Grundfos CMBE TWIN 5-62 Stainless Steel Twin Pressure Boosting Commercial Pump Multistage Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview

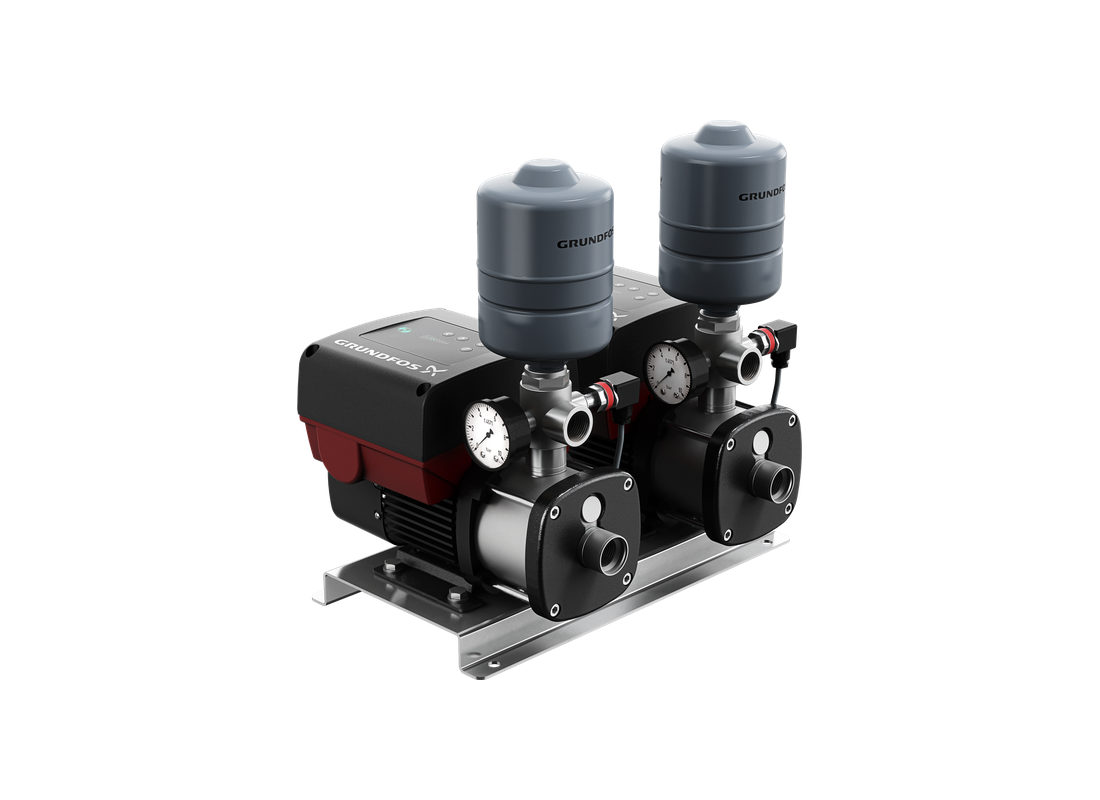

The Grundfos CMBE TWIN 5-62 is a variable speed pressure boosting pump system designed for domestic and light commercial applications including pressure boosting, irrigation, and water supply systems. The twin configuration consists of two booster units connected in parallel, ensuring higher capacity and consistent pressure under varying demand conditions.
Constructed with stainless steel pump housing and multistage stainless steel impellers (AISI 304), the system provides excellent corrosion resistance and durability. The complete booster system includes dual pumps, expansion tanks, pressure sensors, pressure gauges, and a base frame, enabling reliable and efficient multi-pump operation.
The system operates at a rated flow of 6 m³/h with a corresponding head of 47.8 metres. Based on the performance curve, the unit achieves a maximum head of approximately 70 metres at low flow conditions. The twin system operates with cascade control, automatically switching pumps on or off and adjusting speed to match demand.
The unit is powered by two electric motors rated at 1.5 kW (P2) each, operating on a 1 x 200–240 V, 50 Hz supply. Integrated speed control allows the system to maintain constant pressure while optimizing energy consumption.
FEATURES- Motor: 2 x 1.5 kW Electric Motors, 1 x 200–240 V, 50 Hz
- Maximum Head: approx. 70 m
- Rated Flow: 6 m³/h
- Rated Head: 47.8 m
- Pump Type: Variable speed pressure boosting pump (twin system)
- Configuration: Dual pump parallel booster system
- Construction: Stainless steel pump housing with multistage stainless steel impellers (AISI 304)
- Impellers: Multistage design (4-stage)
- Mechanical Seal: AVBE shaft seal
- Integrated System: Dual pumps, expansion tanks, pressure sensors, gauges, and base frame
- Maximum Operating Pressure: 10 bar
- Maximum Ambient Temperature: Maximum 55°C
- Pump Liquid Temperature: Maximum 60°C
- Inlet Size: 32 mm
- Outlet Size: 25 mm
- Enclosure Class: IP55 with built-in motor protection
SPECIFICATIONS
| Max Flow | 250 L/Min |
| Max Head | 70 m |
| Power | 2 x 1.5 kW / 240v |
| Rated Current | 9.1 Amps |
| Suitable For | Commercial Supply |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 60°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water flow rate and head pressure of this pump?
For balanced pressure and flow, the Grundfos CMBE TWIN 5-62 provides up to 250 L/Min in delivery and up to 70 m in vertical lift.
How much electricity and current does this pump draw under load?
It operates on 240v power, with the CMBE TWIN 5-62 utilizing a durable 1.5 kW motor rated at 9.1 Amps.
What materials make this pump durable against corrosion and wear?
Wetted components on the CMBE-TWIN-5-62 are crafted from high-grade Stainless Steel to maintain physical integrity and resist abrasive wear.
What primary fluid transfer and circulation roles are designated for this pump?
Everyday water management duties for the CMBE TWIN 5 62 focus on twin parallel pressure boosting across apartment complexes and large residential layouts, providing reliable pumping performance.
What warranty coverage applies to this pump for long-term peace of mind?
Official factory backing for the CMBE/TWIN/5/62 includes an authentic 2 Years warranty for verified quality and peace of mind.
