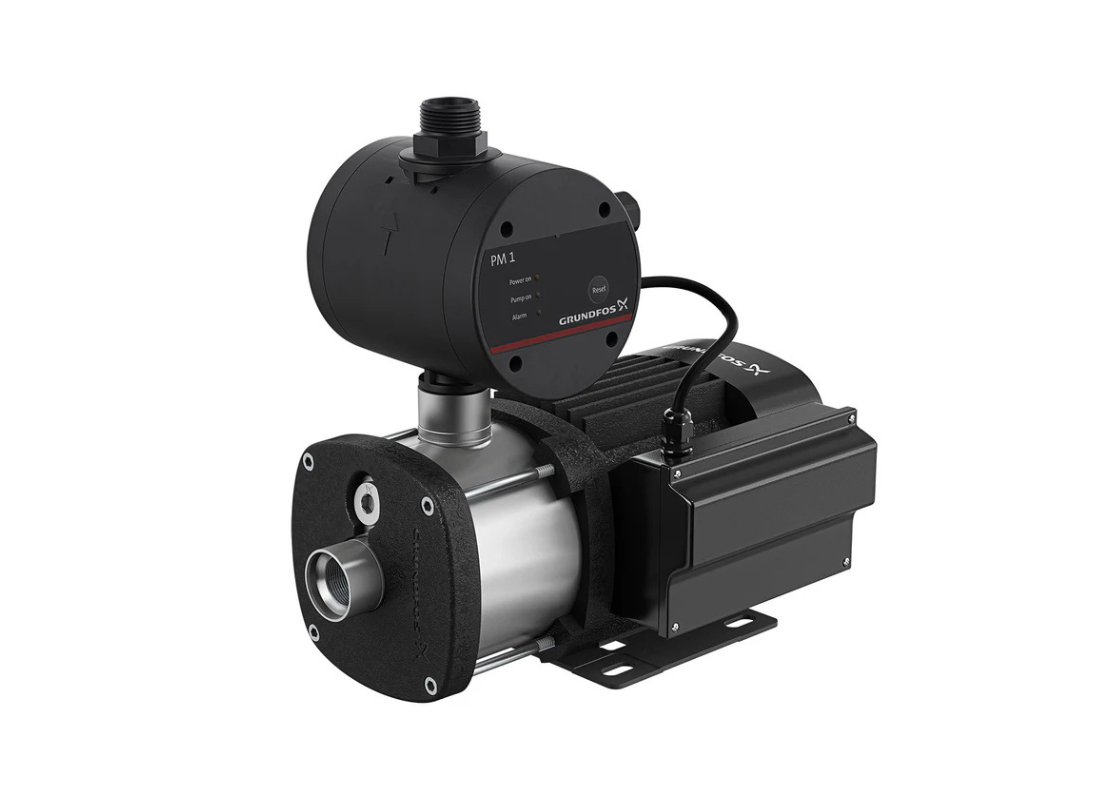

Grundfos CMBooster CMB-SP 1-36 Self Priming Pressure Pump with PM2 Controller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos CMB-SP 1-36 is a compact, high-quality self-priming booster system designed for efficient domestic and light commercial water supply. Supplied with the intelligent PM2 pressure manager, this unit delivers automatic start/stop operation with adjustable pressure settings and integrated dry-run protection for reliable long-term performance.
Built around the proven Grundfos CM multistage stainless steel pump, the CMB-SP 1-36 offers excellent corrosion resistance and smooth, quiet operation. With a maximum head of 36 metres and flow rates up to 23 L/Min, it is ideal for household pressure boosting, rainwater systems and garden irrigation applications.
The pump features self-priming capability up to 4 metres and includes a built-in non-return valve. Once installed and connected to power, the system operates automatically — maintaining consistent pressure while protecting the pump from damage.
FEATURES
- Self-priming multistage booster pump
- Supplied with PM2 intelligent pressure controller
- Maximum head: 36 metres
- Maximum flow: 23 L/Min
- Stainless steel pump housing and impellers (AISI 304)
- Adjustable start pressure (PM2)
- Dry-run protection
- Built-in non-return valve
- IP55 motor protection
- 240V single phase with Australian plug
Ideal for domestic water supply, rainwater tank boosting and light commercial systems.
SPECIFICATIONS
| Max Flow | 23 L/Min |
| Max Head | 36 m |
| Power | 0.3 kW / 240v |
| Rated Current | 2.1 Amps |
| Suitable For | Domestic Pressure Boosting |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What fluid throughput and pressure head are developed by this pump?
You get up to 23 L/Min in flow and a maximum head of 36 m from the Grundfos CMB-SP 1-36, depending on operating conditions.
What voltage supply and motor power does this pump need?
Powered by a dedicated 0.3 kW motor, the CMB-SP 1-36 connects to 240v mains power with a rated current draw of 2.1 Amps.
Is the pump body built to withstand harsh and corrosive liquids?
Manufactured with quality materials, the CMB-SP-1-36 incorporates Stainless Steel for dependable longevity and resistance to fluid erosion.
Which pumping tasks and system installations are ideal for this unit?
Suited for diverse installations, the CMB SP 1 36 performs self-priming suction lift from subterranean rainwater cisterns and underground holding pits with dependable fluid propulsion.
What manufacturer warranty coverage is included with this pump?
Factory coverage on the CMB/SP/1/36 provides an authentic 2 Years warranty for dependable long-term reliability.
