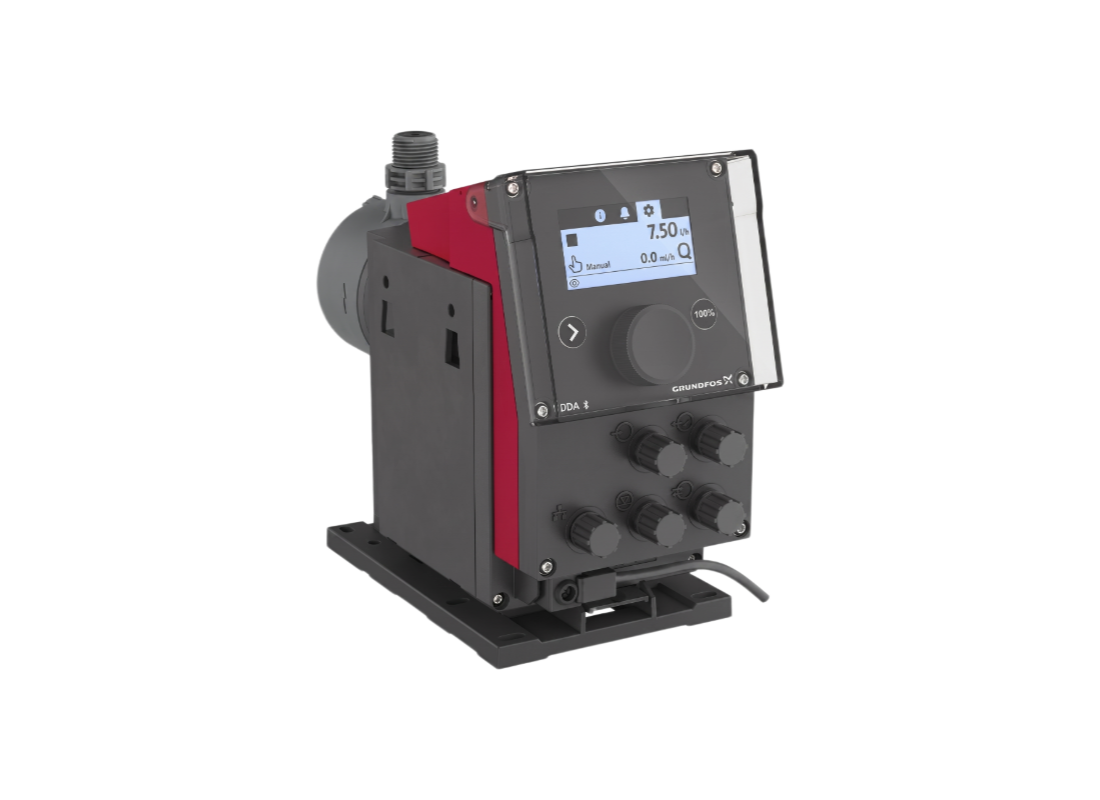

Grundfos DDA 12-10 PVDF AutoFlowAdapt Digital Dosing Pump for Chemical Dosing with FlowControl
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Continuous chemical dosing for process water treatment systems necessitates a configuration that prioritises measurement reliability and control. This Smart Digital S system is optimised for industrial service where consistent chemical delivery must be balanced with advanced monitoring functions to prevent unplanned interruptions.
The pump delivers a maximum dosing capacity of 12.0 L/h and is rated for operation against a 10 bar maximum backpressure. Driven by a 24 W motor, it offers a 1000:1 turn-down ratio, enabling the system to scale down to a minimum flow of 12.0 ml/h without sacrificing the precision of the volumetric output.
Utilising stepper motor technology and full stroke operation, the hydraulic assembly ensures accurate handling of even viscous or degassing liquids. FlowControl continuously monitors the dosing process, while AutoFlowAdapt automatically compensates for changes in process pressure to maintain accurate dosing.
Mechanical durability is provided by a PVDF dosing head and a durable PTFE diaphragm designed for long-term service. Connectivity is a core feature, with communication functions available according to the selected control variant. The assembly handles liquid temperatures up to 45°C and includes two potential-free output relays for system alarms or stroke signals.
FEATURES
- FlowControl monitors the dosing process and detects abnormal operating conditions.
- AutoFlowAdapt automatically compensates for changes in process pressure to maintain accurate dosing.
- 1000:1 turn-down ratio allows precise adjustment from 12.0 L/h down to 12.0 ml/h.
- Stepper motor technology provides smooth and continuous dosing.
- PVDF dosing head, PTFE diaphragm and ceramic double ball valves for chemical resistance.
- Communication functions available according to the selected control variant.
- Two potential-free output relays for system alarms or stroke count signalling.
- Click-wheel interface and graphical LC display simplify configuration and monitoring.
SPECIFICATIONS
| Max Flow | 0.2 L/Min |
| Max Head | 100 m |
| Power | 0.024 kW / 240v |
| Suitable For | Industrial Chemical Dosing |
| Body Material | PVDF |
| Liquid Temperature | Maximum 45°C |
| Inlet Size | 4, 6, 9, 12 mm |
| Outlet Size | 4, 6, 9, 12 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What water temperature range and installation depth are supported?
Thermal ratings for the Grundfos DDA 12-10 accommodate working liquid temperatures up to 45 °C under standard operating pressure.
What total dynamic head can this pump overcome in vertical pipework?
Pumping performance for the DDA 12-10 provides up to 100 m of vertical dynamic lift, depending on system friction and line sizing.
What is the maximum water volume this pump can discharge?
Moving liquid through the system, the DDA-12-10 maintains an operational throughput of up to 0.2 L/Min through a 12 mm connection connection during peak demand.
Is the pump body built to withstand harsh and corrosive liquids?
Built with a resilient PVDF body, the DDA 12 10 maintains material durability against fluid abrasion and wear.
What are the power requirements and running amperage for this pump?
Driven by a 0.024 kW motor, the DDA/12/10 functions reliably on 240 V electrical circuits.
