SKU: 93242911

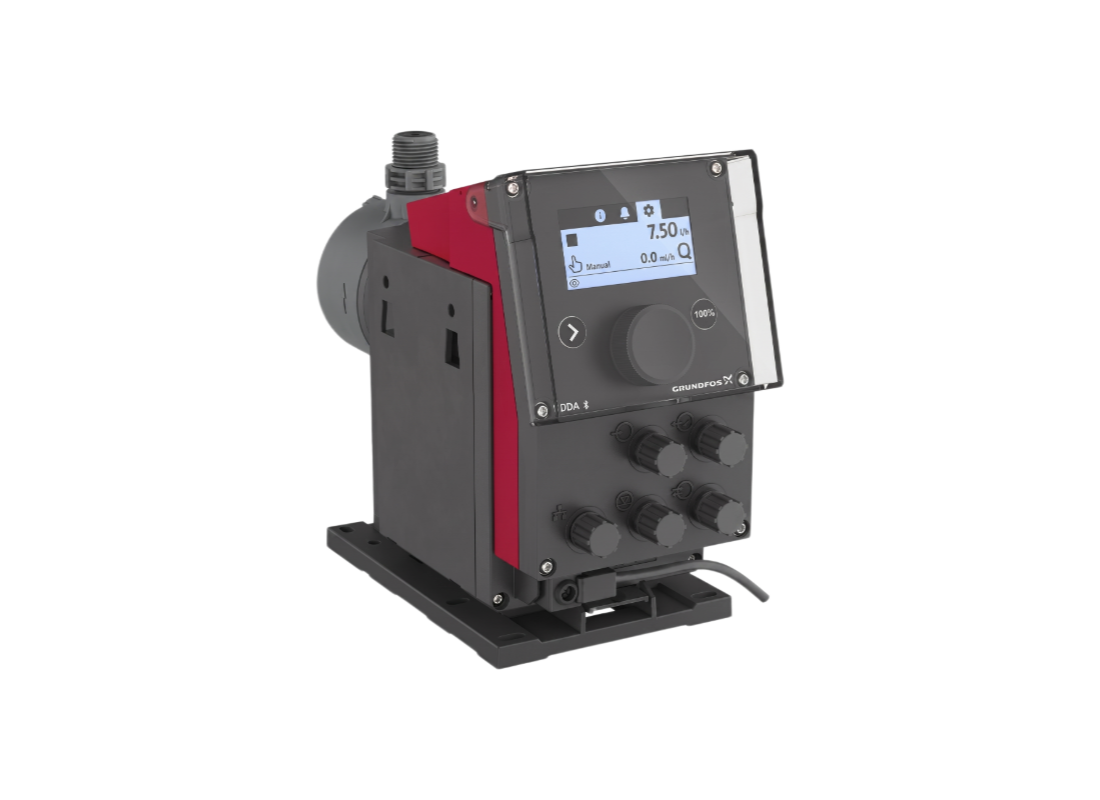

Grundfos DDA 12-10 PVC Spring-Loaded Valve Digital Dosing Pump for Viscous Media Handling with AR Control
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Reliable chemical injection in standard industrial water systems requires a configuration that balances ease of operation with robust material resistance. This Smart Digital S variant is optimised for general service applications where precise speed control and a standard manual interface are the primary requirements.
Powered by a 24 W motor operating on a 240v supply, the unit produces a maximum flow rate of 12.0 L/h against 10 bar maximum backpressure. It utilises a 1000:1 turn-down ratio, allowing for consistent volumetric accuracy across a broad range of flow settings down to a minimum of 12.0 ml/h.
The hydraulic assembly features a spring-loaded valve configuration designed for improved handling of liquids with higher viscosities or those prone to degassing. Stepper motor technology ensures smooth and continuous dosing.
Mechanical durability is provided by a PVC dosing head and EPDM gaskets paired with ceramic ball valves. The unit includes AR control functionality for manual speed and pulse operation, housed in an IP65 enclosure. It is rated for liquid temperatures up to 45°C and includes two potential-free output relays for alarm signalling or integration with external control systems.
FEATURES
- Spring-loaded valve design for improved performance with viscous or degassing chemicals.
- AR control variant supports manual speed adjustment and pulse control in ml/pulse.
- 1000:1 turn-down ratio for adjustment from 12.0 L/h down to 12.0 ml/h.
- Stepper motor drive provides smooth and continuous dosing.
- PVC pump head and EPDM gaskets for compatibility with standard industrial fluids.
- Graphical LC display with plain-text menu for simplified setup and operating status.
- Integrated input for low-level and tank empty signals prevents dry-run damage.
- IP65 rated enclosure protects motor and electronics from dust and water spray.
SPECIFICATIONS
| Max Flow | 0.2 L/Min |
| Max Head | 100 m |
| Power | 0.024 kW / 240v |
| Suitable For | Viscous Media Handling |
| Body Material | PVC |
| Liquid Temperature | Maximum 45°C |
| Inlet Size | 4, 6, 9, 12 mm |
| Outlet Size | 4, 6, 9, 12 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much pumping height does this pump provide?
Vertical elevation capability on the Grundfos DDA 12-10 reaches a maximum dynamic head of approximately 100 m under rated conditions.
What peak fluid displacement volume can this pump deliver?
Fluid evacuation capacity for the DDA 12-10 peaks at approximately 0.2 L/Min through a 12 mm connection connection, providing dependable high-volume drainage.
What primary fluid transfer and circulation roles are designated for this pump?
Everyday water management duties for the DDA-12-10 focus on difficult or degassing liquids, providing reliable pumping performance.
What electrical connection and motor power run this pump?
Operating on 240 V supply, the DDA 12 10 is driven by a 0.024 kW electric motor.
What liquid temperatures can this pump tolerate during standard operation?
Tested for thermal durability, the DDA/12/10 tolerates working fluid temperatures up to 45 °C.
