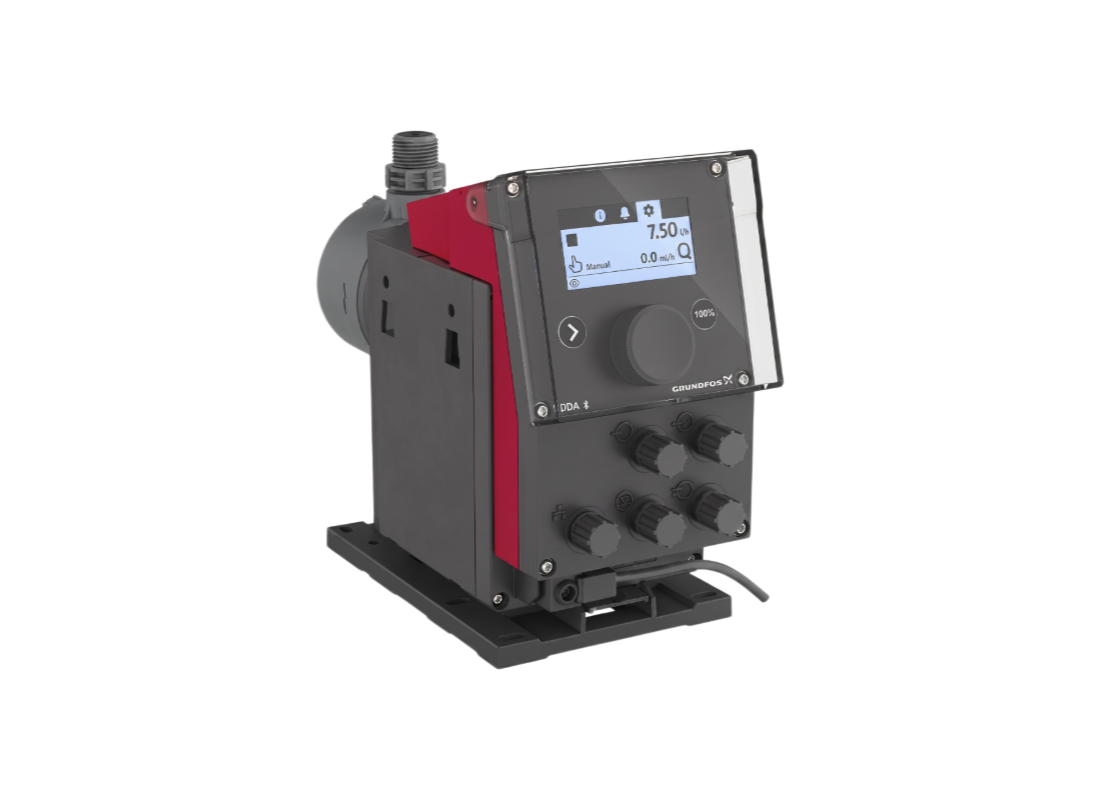

Grundfos DDA 17-7 PVDF AR Control Digital Dosing Pump for Process Chemical Dosing
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Higher throughput industrial dosing for process water treatment requiring precise chemical delivery from restrictive sources calls for the precise speed control of the DDA series. This configuration is optimised for automated environments where the pump must interact with external water meters and PLC systems via digital relay and analog signals.
Powered by a 24 W motor operating on 240v, the unit delivers a maximum dosing capacity of 17.0 L/h at a 7 bar maximum operating pressure. It achieves a 1000:1 turn-down ratio, which provides the wide dosing range needed to manage dosing rates from its peak flow down to a precise minimum of 17.0 ml/h.
The hydraulic design utilises advanced stepper motor technology to provide smooth and continuous dosing. The unit includes AR control functionality for manual, pulse, and analog modes, ensuring consistent performance with diverse installation requirements.
Structural durability is ensured by a rugged PVDF body, PTFE gaskets, and ceramic ball valves suitable for aggressive industrial fluids. The unit handles liquid temperatures up to 45°C and includes two potential-free output relays for alarms or integration with external control systems.
FEATURES
- AR control variant with manual speed adjustment, pulse-based operation and analog 0/4-20mA control.
- Low-level and empty-tank signal inputs protect the pump from dry-run damage.
- 1000:1 turn-down ratio for precise adjustment from 17.0 L/h down to 17.0 ml/h.
- Stepper motor technology provides smooth and continuous dosing.
- PVDF dosing head, PTFE gaskets and ceramic ball valves for aggressive fluid resistance.
- Batch and timer operating modes for flexible site process automation.
- Two potential-free output relays for alarms or integration with external control systems.
- IP65 rated enclosure protects internal components in industrial environments.
SPECIFICATIONS
| Max Flow | 0.28 L/Min |
| Max Head | 70 m |
| Power | 0.024 kW / 240v |
| Suitable For | Precision Chemical Dosing |
| Body Material | PVDF |
| Liquid Temperature | Maximum 45°C |
| Inlet Size | 4, 6, 9, 12 mm |
| Outlet Size | 4, 6, 9, 12 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What electrical voltage and motor kilowatt output drive this unit?
Standard power configuration for the Grundfos DDA 17-7 incorporates a 0.024 kW motor on 240 V line feeds.
Can this pump operate in warm or hot water without overheating?
Routine operational thermal ceilings enable the DDA 17-7 to process liquids up to 45 °C.
How high can this pump push fluid through discharge risers?
Vertical elevation capability on the DDA-17-7 reaches a maximum dynamic head of approximately 70 m under rated conditions.
What is the maximum flow capacity of this pump per minute?
Fluid evacuation capacity for the DDA 17 7 peaks at approximately 0.28 L/Min, providing dependable high-volume drainage.
What metallurgy is selected for the pump body to resist abrasive wear?
Manufactured with quality materials, the DDA/17/7 incorporates PVDF for dependable longevity and resistance to fluid erosion.
