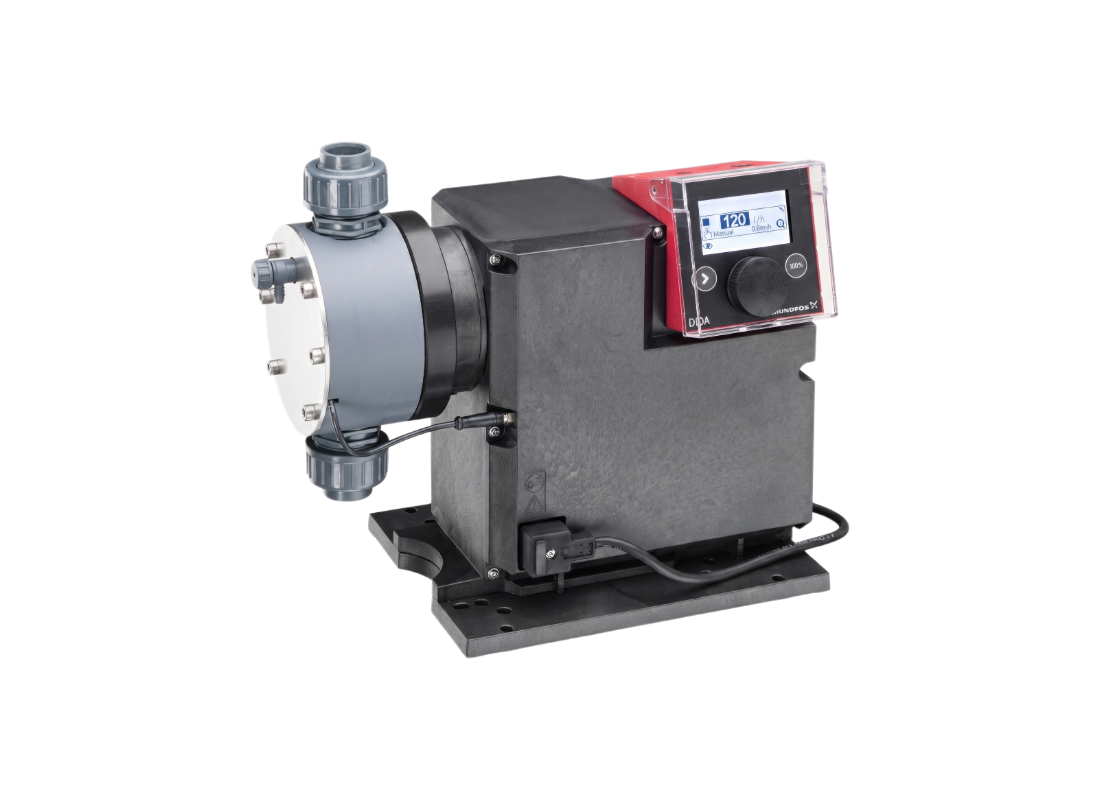

Grundfos DDA 200-4 PVDF FlowControl Digital Dosing Pump for Wastewater Chemical Dosing with AutoFlowAdapt
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Industrial process environments requiring high throughput from a digital dosing system are served by this high-capacity XL configuration. This system is intended for users who need to move up to 200 litres per hour of process chemicals with integrated system feedback to support reliable operation.
Powered by a 62 W motor, the pump achieves a maximum dosing capacity of 200.0 L/h at a 4 bar maximum pressure. It features an 800:1 turn-down ratio, allowing the system to operate at a minimum flow of 0.25 L/h, providing the hydraulic strength required for large-scale chemical injection while maintaining digital precise control.
The hydraulic assembly utilises stepper motor technology to provide smooth and continuous dosing. FlowControl continuously monitors the dosing process, while AutoFlowAdapt automatically compensates for changes in process pressure to maintain accurate dosing.
Structural durability is ensured by a rugged PVDF pump head, PTFE gaskets, and ceramic ball valves suitable for aggressive industrial liquids. Connectivity is managed via communication functions available according to the selected control variant. The unit handles liquid temperatures up to 50°C and includes high-flow U3 connection packs for standard 19/27mm hose systems.
FEATURES
- FlowControl monitors the dosing process and detects abnormal operating conditions.
- AutoFlowAdapt automatically compensates for changes in process pressure to maintain accurate dosing.
- 800:1 turn-down ratio from 200.0 L/h down to 0.25 L/h for precise adjustment.
- Stepper motor technology provides smooth and continuous dosing.
- PVDF pump head, PTFE gaskets and ceramic ball valves for aggressive chemical resistance.
- Communication functions available according to the selected control variant.
- IP65 rated enclosure protects motor and electronics in site installations.
- High-flow U3 connection packs for standard 19/27mm hose systems.
SPECIFICATIONS
| Max Flow | 3.33 L/Min |
| Max Head | 40 m |
| Power | 0.062 kW / 240v |
| Suitable For | High-Capacity Chemical Dosing |
| Body Material | PVDF |
| Liquid Temperature | Maximum 50°C |
| Inlet Size | 19, 20, 25, 27 mm |
| Outlet Size | 19, 20, 25, 27 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor power rating and running current power this pump?
Operating on 240 V supply, the Grundfos DDA 200-4 is driven by a 0.062 kW electric motor.
How deep can this pump be submerged underwater?
Tested for thermal durability, the DDA 200-4 tolerates working fluid temperatures up to 50 °C.
What maximum vertical elevation head can this pump achieve?
Fluid elevation through vertical risers reaches up to 40.0 m with the DDA-200-4 under standard duty points.
How much water volume can this pump displace through its outlet?
Discharge throughput on the DDA 200 4 reaches a maximum flow rate of approximately 3.33 L/Min under standard operating conditions.
What materials make this pump durable against corrosion and wear?
Wetted components on the DDA/200/4 are crafted from high-grade PVDF to maintain physical integrity and resist abrasive wear.
