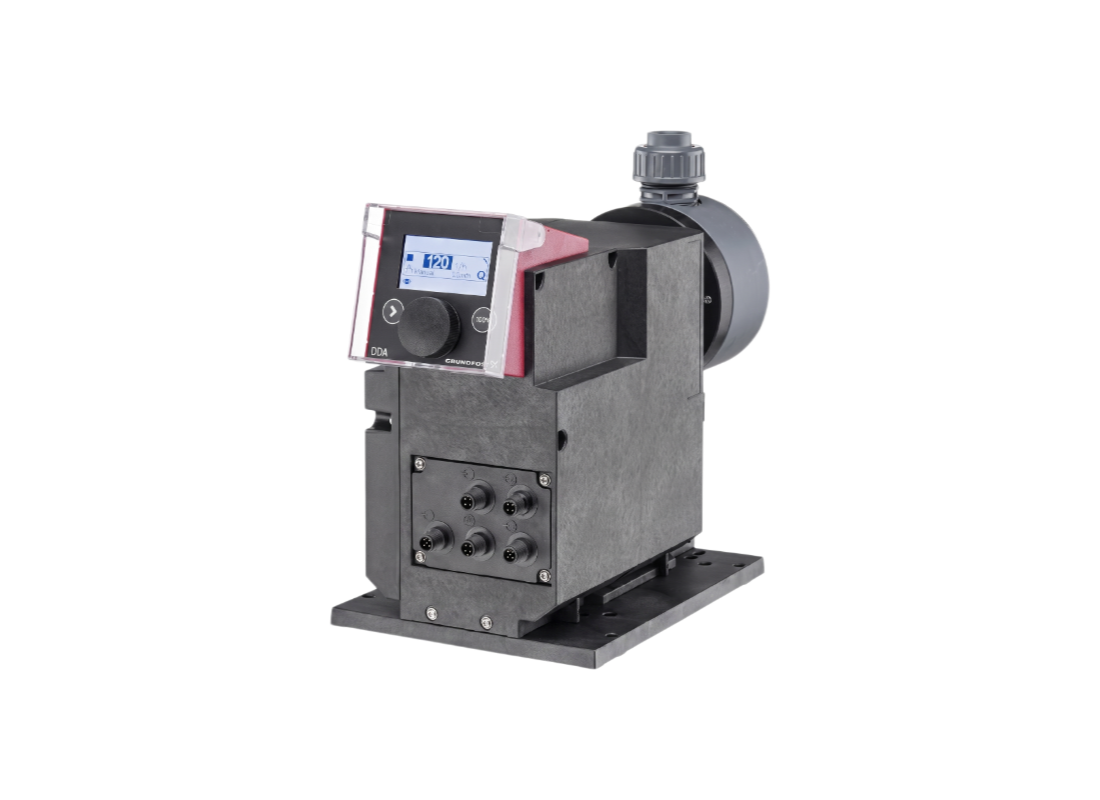

Grundfos DDA 200-4 PVC Spring-Loaded Valve Digital Dosing Pump for Water Treatment with AR Control
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Industrial reticulation requiring high throughput with enhanced valve behaviour defines the role of this specialist configuration. This Smart Digital XL system is engineered with spring-loaded valves to ensure consistent priming and throughput for high-volume dosing tasks where gravity valves may be insufficient.
Powered by a 62 W motor, the pump achieves a peak flow rate of 200.0 L/h against a 4 bar maximum operating pressure. It utilises an 800:1 turn-down ratio, which provides consistent volumetric accuracy across a broad range of settings down to a minimum of 0.25 L/h, supporting accurate dosing across the operating range.
The hydraulic assembly features stepper motor technology for smooth and continuous dosing. The unit includes AR control functionality for manual speed, pulse, and analog operation, ensuring that high-volume chemical delivery is matched with precise digital control.
Mechanical integrity is provided by a PVC dosing head and EPDM gaskets paired with ceramic ball valves suitable for standard media. Housed in an IP65 enclosure, it handles liquid temperatures up to 40°C and includes two potential-free output relays for alarm signalling or integration with external control systems.
FEATURES
- Spring-loaded valve configuration for consistent priming with viscous or degassing media.
- AR control variant with manual speed, pulse and analog 0/4-20mA input modes.
- 800:1 turn-down ratio from 200.0 L/h down to 0.25 L/h for precise flow control.
- Stepper motor drive provides smooth and continuous dosing.
- PVC pump head, EPDM gaskets and ceramic ball valves for standard chemical resistance.
- IP65 rated enclosure protects motor and electronics in industrial installations.
- High-capacity dosing suitable for bulk industrial transfer requirements.
- Two potential-free output relays for alarm signalling or integration with external control systems.
SPECIFICATIONS
| Max Flow | 3.33 L/Min |
| Max Head | 40 m |
| Power | 0.062 kW / 240v |
| Suitable For | Bulk Chemical Transfer |
| Body Material | PVC |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 19, 20, 25, 27 mm |
| Outlet Size | 19, 20, 25, 27 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What are the maximum installation depth and liquid temperature boundaries?
Liquid operating limits establish that the Grundfos DDA 200-4 accommodates temperatures up to 40 °C during standard duties.
How high can this pump lift water vertically?
Dynamic lift generated by the DDA 200-4 reaches a maximum elevation head of approximately 40.0 m across discharge lines.
What maximum flow rate does this pump achieve during heavy influx?
Displacing fluid into connected headers, the DDA-200-4 sustains up to 3.33 L/Min of volumetric throughput.
What primary water management tasks is this pump best suited for?
Primary tasks for the DDA 200 4 include Structural longevity on the is reinforced by PVC wetted architecture and high-performance synthetic gaskets, delivering efficient water management across residential and rural systems.
How much power does the motor consume during standard operation?
Powered by an efficient 0.062 kW motor, the DDA/200/4 operates on 240 V electrical feeds.
