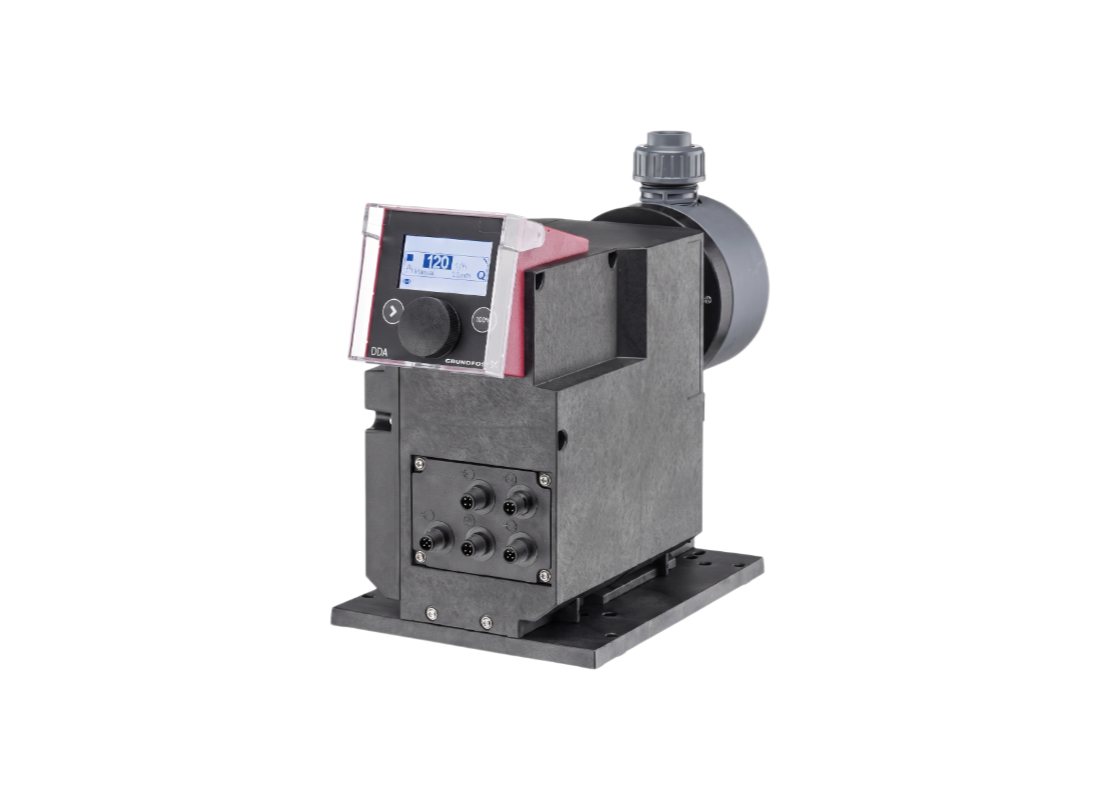

Grundfos DDA 60-10 PVC Spring-Loaded Valve Digital Dosing Pump for Viscous Media Handling with AR Control
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Handling viscous media or degassing chemicals in industrial process cycles requires a configuration built with enhanced valve performance for reliable priming. This Smart Digital XL system is engineered with spring-loaded valves to ensure consistent throughput in applications where standard gravity-closed valves may struggle to maintain accuracy.
Powered by a 62 W motor operating on 240v, the unit produces a maximum flow rate of 60.0 L/h against 10 bar maximum backpressure. It utilises an 800:1 turn-down ratio, allowing for consistent precision across a broad range of flow settings down to a minimum of 0.075 L/h to match site specific chemical needs.
The hydraulic assembly features a spring-loaded valve configuration designed for improved behaviour when handling liquids with higher viscosities. Stepper motor technology ensures smooth and continuous dosing.
Mechanical integrity is provided by a PVC dosing head and EPDM gaskets paired with ceramic ball valves for standard chemical compatibility. The unit includes AR control functionality for manual, pulse, and analog modes, housed in an IP65 enclosure. It is rated for liquid temperatures up to 40°C and includes two potential-free output relays for alarm signalling or integration with external control systems.
FEATURES
- Spring-loaded valve design for optimised performance with viscous or degassing media.
- AR control variant supports manual speed, pulse and analog 0/4-20mA operation.
- 800:1 turn-down ratio from 60.0 L/h down to 0.075 L/h for precise flow control.
- Stepper motor drive provides smooth and continuous dosing.
- PVC pump head, EPDM gaskets and ceramic ball valves for standard chemical compatibility.
- Low-level and empty-tank signal inputs for pump and process protection.
- Two potential-free output relays for alarm signalling or integration with external control systems.
- IP65 rated enclosure protects motor and electronics from dust and water spray.
SPECIFICATIONS
| Max Flow | 1 L/Min |
| Max Head | 100 m |
| Power | 0.062 kW / 240v |
| Suitable For | Viscous Media Handling |
| Body Material | PVC |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 19, 20, 25, 27 mm |
| Outlet Size | 19, 20, 25, 27 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What domestic plumbing and water boosting roles does this pump perform?
System installations deploy the Grundfos DDA 60-10 for specify PVC wetted components providing exceptional defense against corrosive wear, maintaining steady circulation and reliable line pressure.
What electrical supply parameters are needed for this pump motor?
Electrical specifications for the DDA 60-10 feature a 0.062 kW motor running on 240 V power.
What are the maximum installation depth and liquid temperature boundaries?
Liquid operating limits establish that the DDA-60-10 accommodates temperatures up to 40 °C during standard duties.
How much pumping height does this pump provide?
Dynamic lift generated by the DDA 60 10 reaches a maximum elevation head of approximately 100.0 m across discharge lines.
What peak fluid displacement volume can this pump deliver?
Displacing fluid into connected headers, the DDA/60/10 sustains up to 1.0 L/Min through a 27 mm connection connection of volumetric throughput.
