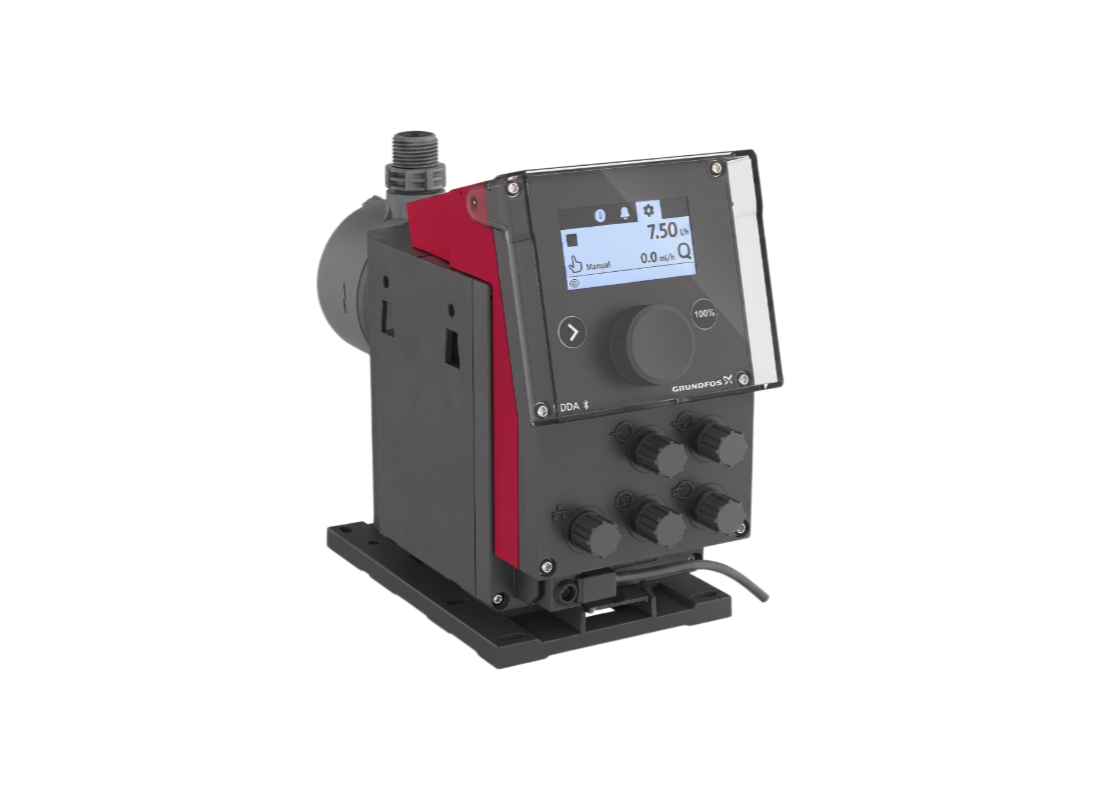

Grundfos DDA 7.5-16 PVDF FlowControl Digital Dosing Pump for Water Treatment with AutoFlowAdapt
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Precision chemical management in water treatment and disinfection processes requires a system capable of handling aggressive media with accuracy. This digital dosing configuration is engineered for industrial chemical dosing applications where maintaining a precise chemical balance is essential for consistent dosing performance.
Operating on a standard 240v supply, the unit consumes 24 W of power while delivering a maximum dosing capacity of 7.5 L/h at a 16 bar maximum operating pressure. It features a 3000:1 turn-down ratio, allowing for smooth and continuous dosing even at flow rates as low as 0.0025 L/h.
The hydraulic design centers on advanced stepper motor technology, providing smooth and continuous dosing. This model incorporates FlowControl to continuously monitor the dosing process, while AutoFlowAdapt automatically compensates for changes in process pressure to maintain accurate dosing.
Construction features a chemically resistant PVDF pump head paired with durable PTFE gaskets and ceramic ball valves to ensure compatibility with a wide range of process liquids. Housed in an IP65-rated enclosure, communication functions are available according to the selected control variant.
FEATURES
- FlowControl monitors the dosing process and detects abnormal operating conditions.
- AutoFlowAdapt automatically compensates for changes in process pressure to maintain accurate dosing.
- 3000:1 turn-down ratio enables precise adjustment from 7.5 L/h down to 0.0025 L/h.
- Stepper motor technology provides smooth and continuous dosing.
- PVDF pump head, PTFE gaskets and ceramic ball valves provide resistance against aggressive chemicals.
- Communication functions available according to the selected control variant.
- Multiple operating modes including pulse, analog 0/4-20mA, batch and timer functions.
- IP65 rated enclosure protects internal electronics in industrial environments.
SPECIFICATIONS
| Max Flow | 0.125 L/Min |
| Max Head | 160 m |
| Power | 0.024 kW / 240v |
| Suitable For | Water Treatment |
| Body Material | PVDF |
| Liquid Temperature | Maximum 45°C |
| Inlet Size | 4, 6, 9, 12 mm |
| Outlet Size | 4, 6, 9, 12 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What electrical voltage and motor kilowatt output drive this unit?
It connects to 240 V power, with the Grundfos DDA 7.5-16 driven by an efficient 0.024 kW motor.
How deep can this pump be installed underwater in a wet well?
Thermal ratings for the DDA 7.5-16 accommodate working liquid temperatures up to 45 °C under standard operating pressure.
How high can this pump push fluid through discharge risers?
Pumping performance for the DDA-7-5-16 provides up to 160 m of vertical dynamic lift, depending on system friction and line sizing.
What is the maximum flow capacity of this pump per minute?
Moving liquid through the system, the DDA 7 5 16 maintains an operational throughput of up to 0.125 L/Min during peak demand.
What corrosion-resistant materials are used in the wetted components?
Built with a resilient PVDF body, the DDA/7/5/16 maintains material durability against fluid abrasion and wear.
