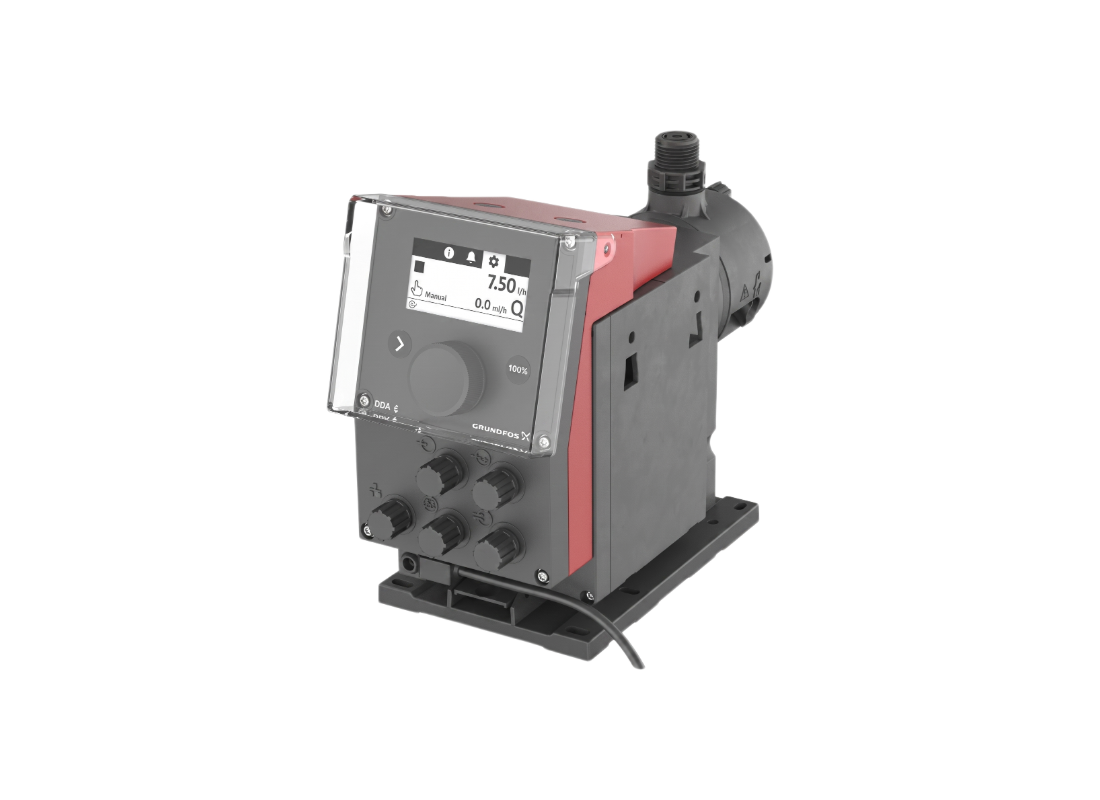

Grundfos DDA 7.5-16 PVDF Sapphire Sensor Digital Dosing Pump for Fluorosilicic Acid Dosing with FlowControl
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Dosing Fluorosilicic Acid (FSA) and other specialised chemicals requires enhanced sensing technology to maintain safety and accuracy. This specific DDA FCM-C configuration is engineered with a Sapphire sensor to meet the unique monitoring requirements of aggressive chemical applications that standard sensors cannot accommodate.
The unit operates with a 24 W power input and delivers 7.5 L/h at a 16 bar maximum pressure rating. It achieves a wide turn-down ratio of 3000:1, providing the torque and speed control necessary to manage dosing rates from its maximum capacity down to a precise minimum of 0.0025 L/h for sensitive process control.
Precision is maintained through stepper motor technology and FlowControl measurement. AutoFlowAdapt automatically compensates for changes in process pressure to maintain accurate dosing.
Construction includes a PVDF head, PTFE gaskets, and a specialised Sapphire sensor for FSA compatibility. Control and connectivity are managed via communication functions available according to the selected control variant. The unit is rated for liquids up to 45°C and features an IP65 enclosure for industrial placement.
FEATURES
- Specialised Sapphire sensor for accurate and safe dosing of Fluorosilicic Acid (FSA).
- FlowControl with Sapphire sensor monitors the dosing process and detects abnormal operating conditions.
- AutoFlowAdapt automatically compensates for changes in process pressure to maintain accurate dosing.
- 3000:1 turn-down ratio enables precise control from 7.5 L/h down to 0.0025 L/h.
- Stepper motor technology provides smooth and continuous dosing.
- PVDF housing and PTFE wetted parts for compatibility with aggressive chemicals.
- Communication functions available according to the selected control variant.
- Potential-free output relays for configurable alarm signalling and integration with external control systems.
SPECIFICATIONS
| Max Flow | 0.125 L/Min |
| Max Head | 160 m |
| Power | 0.024 kW / 240v |
| Suitable For | Aggressive Media Dosing |
| Body Material | PVDF |
| Liquid Temperature | Maximum 45°C |
| Inlet Size | 4, 6, 9, 12 mm |
| Outlet Size | 4, 6, 9, 12 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What corrosion-resistant materials are used in the wetted components?
Built with a resilient PVDF body, the Grundfos DDA 7.5-16 maintains material durability against fluid abrasion and wear.
How much power does the motor consume during standard operation?
Driven by a 0.024 kW motor, the DDA 7.5-16 functions reliably on 240 V single-phase electrical circuits.
What submersion depth limits and fluid temperatures apply to this pump?
Fluid media ranging up to 45 °C can be circulated through the DDA-7-5-16 without thermal breakdown.
What peak dynamic elevation does this pump develop?
To overcome vertical elevation resistance, the DDA 7 5 16 develops a maximum pumping head of approximately 160 m.
How much water volume can this unit move through the pipework?
At full operating capacity, the DDA/7/5/16 moves up to 0.125 L/Min to keep liquid levels controlled during peak inflow.
