SKU: 99246473

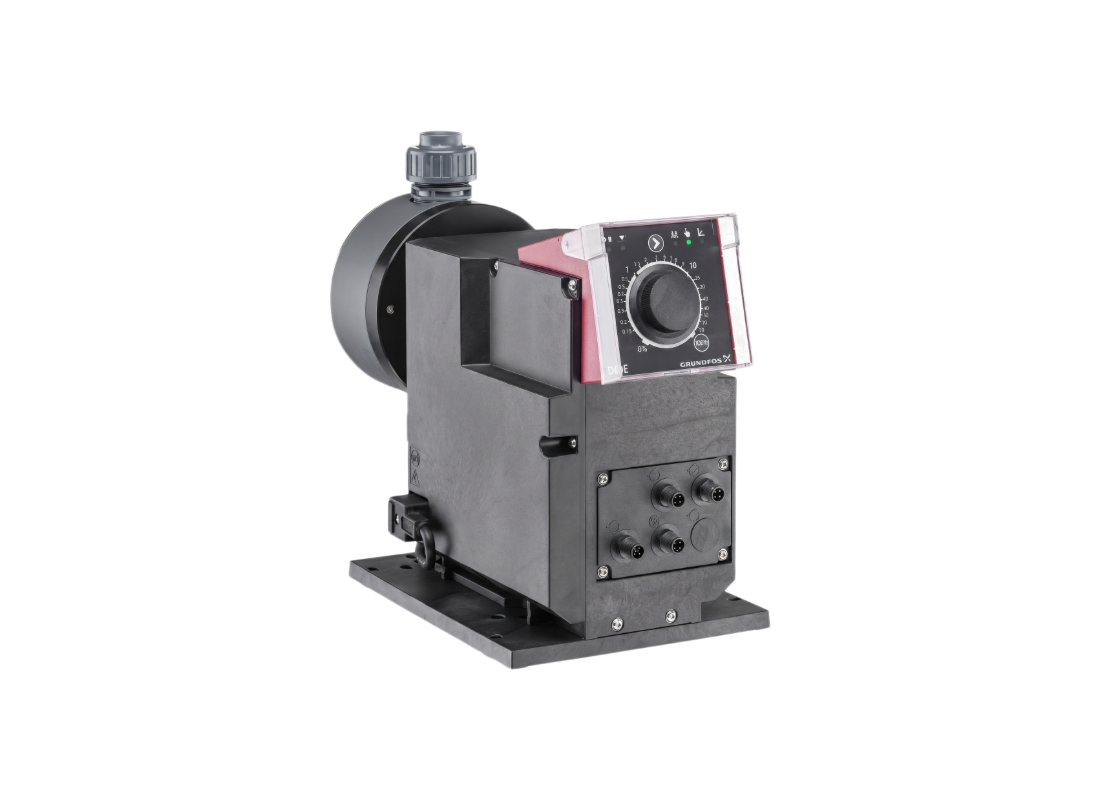

Grundfos DDE 120-7 PVC AR Control Digital Dosing Pump for Chemical Dosing
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Process water disinfection requiring automated signal feedback calls for the precise speed control of the DDE XL series. This configuration is optimised for automated site infrastructure where the pump must interact with external water meters and PLC systems via digital relay and analog signals for sustained accuracy.
The unit is powered by a 62 W single-phase motor drawing power from a standard 240v supply. It delivers a maximum dosing capacity of 120.0 L/h at a 7 bar maximum operating pressure, utilising an 800:1 turn-down ratio to scale performance accurately down to a minimum flow of 0.15 L/h to match available demand.
The hydraulic design utilises advanced stepper motor technology to provide smooth and continuous dosing. This AR control variant includes pulse input, 4-20mA control, and two potential-free output relays, ensuring the unit can be fully synchronised with complex site process automation.
Structural durability is ensured by a rugged PVC pump head and durable PTFE gaskets paired with ceramic ball valves. Connectivity is managed via manual adjustment or digital signals, and the unit includes a front-mounted scale knob. Housed in an IP65 enclosure, it handles liquid temperatures up to 40°C and includes U3 connection packs.
FEATURES
- AR control variant with manual, pulse and 4-20mA input modes and potential-free alarm relays.
- Low-level and tank empty signal inputs for dry-run protection.
- 800:1 turn-down range from 120.0 L/h down to 0.15 L/h for precise dosing.
- Stepper motor technology provides smooth and continuous dosing.
- PVC pump head, PTFE gaskets and ceramic ball valves for standard chemical resistance.
- Front-mounted scale knob for manual adjustment alongside digital control.
- IP65 rated enclosure for robust protection in industrial installations.
- U3 connection packs for easy installation with standard pipe systems.
SPECIFICATIONS
| Max Flow | 2 L/Min |
| Max Head | 70 m |
| Power | 0.062 kW / 240v |
| Suitable For | High-Capacity Chemical Dosing |
| Body Material | PVC |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 19, 20, 25, 27 mm |
| Outlet Size | 19, 20, 25, 27 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What liquid temperatures can this pump tolerate during standard operation?
Operating comfortably across temperatures up to 40 °C, the Grundfos DDE 120-7 supports diverse fluid circuits.
What peak dynamic elevation does this pump develop?
Under rated operating head, the DDE 120-7 can lift water to a maximum dynamic head of approximately 70.0 m through vertical risers.
How much water volume can this unit move through the pipework?
Peak fluid displacement on the DDE-120-7 delivers up to 2.0 L/Min under rated operating conditions.
What materials protect the wetted parts against aggressive chemical attack?
High-grade PVC components in the DDE 120 7 protect internal passages against corrosive fluid contact.
Does this pump run on standard household power or three-phase power?
It connects to 240 V power, with the DDE/120/7 driven by an efficient 0.062 kW motor.
