SKU: 99246459

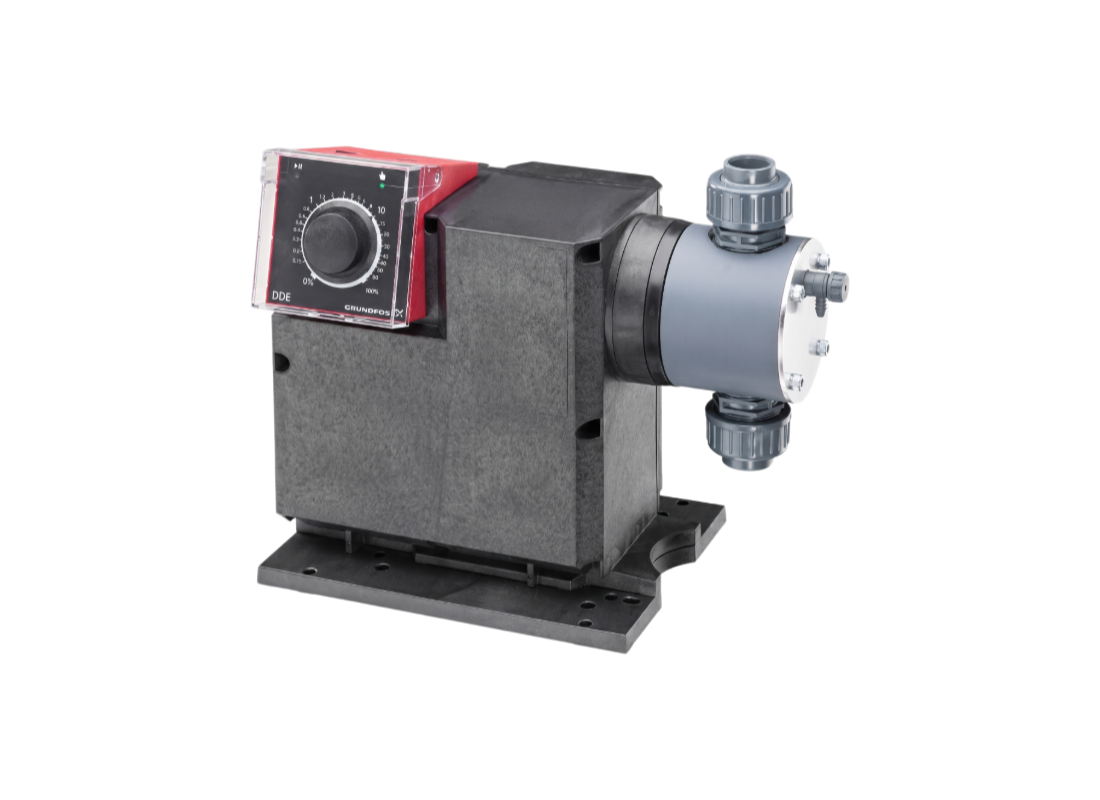

Grundfos DDE 120-7 PVC Scale Knob Control Digital Dosing Pump for Process Chemical Dosing
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
High-volume industrial water treatment and chemical dosing applications demand a configuration that provides high-capacity dosing with a simplified control interface. This Smart Digital XL system is engineered for industrial applications where the primary service requirement is consistent delivery of chemicals to storage systems and networks at high volumes.
The unit is driven by a 62 W single-phase motor drawing power from a standard 240v supply to maintain high hydraulic efficiency. It delivers a maximum dosing capacity of 120.0 L/h at a 7 bar maximum operating pressure, utilising an 800:1 turn-down ratio to scale performance accurately down to a minimum flow of 0.15 L/h.
The hydraulic design utilises advanced stepper motor technology to provide smooth and continuous dosing. This basic control model supports manual speed adjustment via a scale knob, supporting accurate dosing across the operating range.
Mechanical integrity is maintained by a PVC pump head and PTFE gaskets paired with ceramic ball valves suitable for standard process media. Housed in an IP65 enclosure, it handles liquid temperatures up to 40°C and includes U3 connection packs for reliable industrial installation.
FEATURES
- Manual control via 0.15-100% scale knob for simple on-site dosing adjustment.
- Full stroke operation maintains volumetric accuracy under varying backpressure.
- 800:1 turn-down range from 120.0 L/h down to 0.15 L/h for precise control.
- Stepper motor technology provides smooth and continuous dosing.
- PVC pump head, PTFE gaskets and ceramic ball valves for standard chemical resistance.
- IP65 rated enclosure for mechanical protection in industrial environments.
- U3 connection packs for easy installation with standard pipe systems.
- 100-240v voltage compatibility and 1.5 m cable for easy site integration.
SPECIFICATIONS
| Max Flow | 2 L/Min |
| Max Head | 70 m |
| Power | 0.062 kW / 240v |
| Suitable For | Industrial Chemical Transfer |
| Body Material | PVC |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 19, 20, 25, 27 mm |
| Outlet Size | 19, 20, 25, 27 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much liquid flow volume in liters per minute does this knob controlled dosing unit deliver?
Regulating fluid output into processing pipework, the DDE 120-7 delivers a maximum delivery flow rate of approximately 2.0 L/Min (120.0 L/h) through 19, 20, 25, 27 mm connections.
What wetted polymer material and rugged body construction ensure long-term chemical defense?
Internal flow pathways within the Grundfos DDE 120-7 are formed from PVC featuring robust sealing against chemical attack.
In commercial electrical circuits, what motor kilowatt power and supply voltage run this pump?
Electrical integration of the DDE-120-7 requires 240 V to power its internal motor rated at 0.062 kW (62 W).
What working pressure in bar and liquid temperature limit govern this chemical dosing pump?
Constructed for demanding process injection, the Grundfos DDE 120 7 sustains operational pressures up to 7 bar in fluids up to 40 °C.
How high can this dosing assembly vertically elevate liquid chemical reagents?
Hydraulic vertical push generated by the DDE 120-7 B-PVCTC-F-31U3U3IG establishes a peak dynamic head of approximately 70.0 m.
